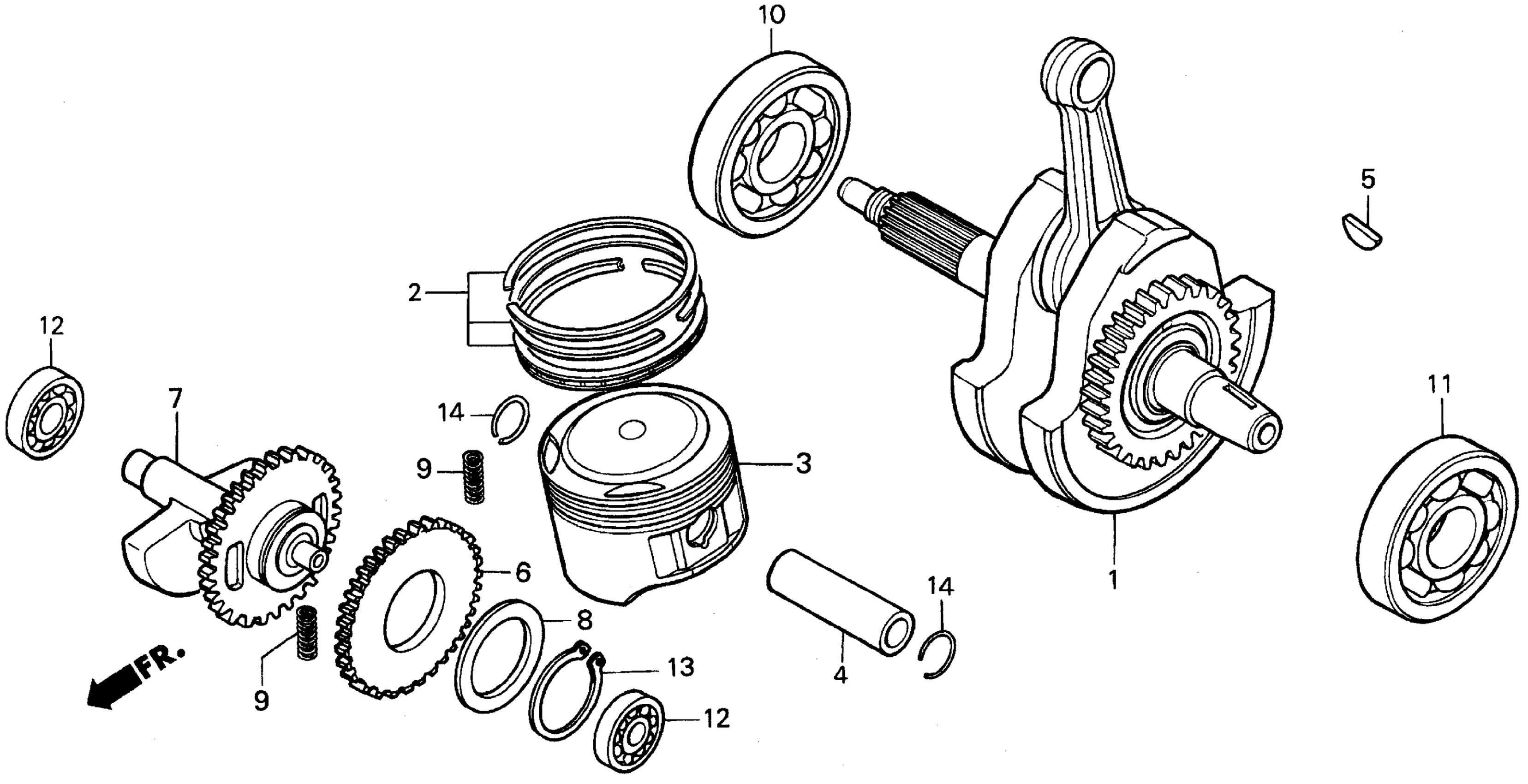

Honda XR250LA (92) MOTORCYCLE, JPN, VIN# JH2MD220-NM100005 TO JH2MD220-NM101850 CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT

13000-KS5-010

Unavailable

2

RING SET, PISTON (STD)

13011-KV6-305

$54.54

2

RING SET, PISTON (OS 0.25) | (Optional).

13012-KT1-306

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional).

13013-KT1-306

Unavailable

3

PISTON

13101-KV6-000

Unavailable

3

PISTON (OS 0.25) | (Optional).

13102-KV6-305

Unavailable

3

PISTON (OS 0.50) | (Optional).

13103-KV6-305

Unavailable

4

PIN, PISTON

13111-KK1-000

Unavailable

5

KEY, WOODRUFF SPECIAL (25X1)

13331-360-000

$3.47

6

SUB-GEAR, BALANCER DRIVEN (34T)

13419-KL4-010

Unavailable

6

SUB-GEAR, BALANCER DRIVEN (34T) This part replaces 13419-KL4-000.

13419-KL4-010

Unavailable

7

SHAFT, BALANCER

13420-KS5-000

Unavailable

8

SPRING, BALANCER DISK

13423-MG2-003

$10.43

9

SPRING, BALANCER GEAR

14333-KF0-000

$4.81

10

BEARING, RADIAL BALL (63/28) This part replaces 91001-KK0-003.

91009-HC0-003

$31.43

10

BEARING, RADIAL BALL (63/28) This part replaces 91001-KY7-003.

91009-HC0-003

$31.43

10

BEARING, RADIAL BALL (63/28)

91009-HC0-003

$31.43

11

BEARING, BALL (63/28)

91002-KK0-003

Unavailable

12

BEARING, RADIAL BALL (63/13)

91006-KK0-771

$21.91

13

CIRCLIP (OUTER) (32MM)

94510-32100

$1.49

14

CLIP, PISTON PIN (17MM)

94601-17000

$1.56
