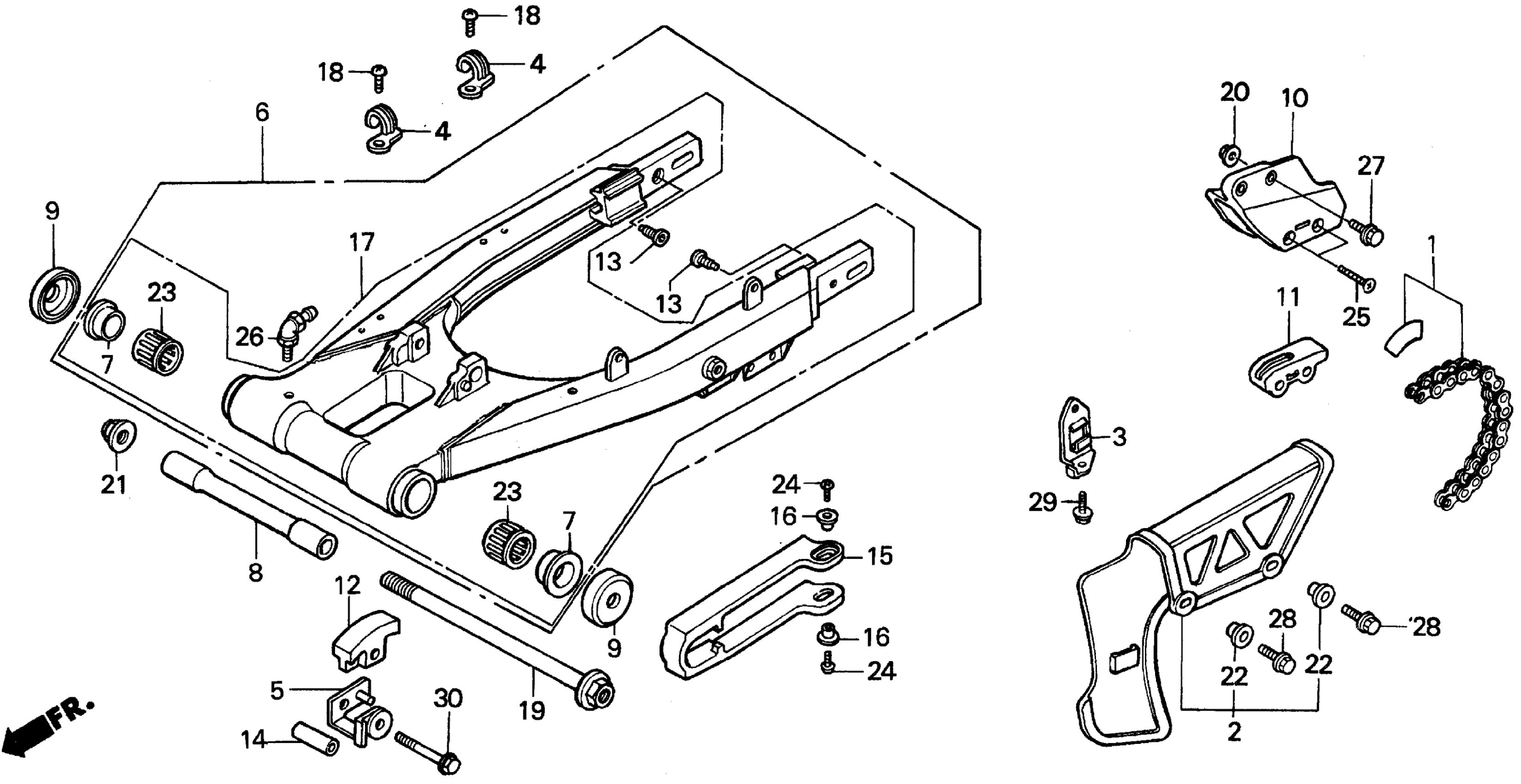

Honda XR250LA (91) MOTORCYCLE, JPN, VIN# JH2MD220-MK000003 TO JH2MD220-MK002363 SWINGARM Diagram

#

Description
Price

1

CHAIN SET, DRIVE (DID520VC6-104LE) (DAIDO) This part replaces 405A3-KV6-671.

40550-KV6-405

Unavailable

1

CHAIN SET, DRIVE (RK520MOZ9-104LE) (RK EXCEL) This part replaces 405A3-KV6-672.

40550-KV6-406

$205.98

1

CHAIN SET, DRIVE (DID520VC6-104LE) (DAIDO)

40550-KV6-405

Unavailable

1

CHAIN SET, DRIVE (RK520MOZ9-104LE) (RK EXCEL)

40550-KV6-406

$205.98

2

CASE, DRIVE CHAIN

40510-KAE-870

$42.84

2

CASE, DRIVE CHAIN This part replaces 40510-KR6-000.

40510-KAE-870

$42.84

3

STAY, CHAIN CASE This part replaces 40512-KV6-000.

40512-KV6-610

Unavailable

3

STAY, CHAIN CASE

40512-KV6-610

Unavailable

4

GUIDE, RR. BRAKE HOSE

43468-KAE-000

$5.46

5

STAY, TENSIONER

50143-MA0-770

Unavailable

6

SWINGARM ASSY., RR.

52100-KV6-670

Unavailable

7

BUSH, PIVOT THRUST

52109-430-300

$16.01

8

COLLAR, RR. SWINGARM CENTER

52141-KT1-770

Unavailable

9

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$17.31

9

CAP, DUST SEAL (NOK) This part replaces 52144-286-000.

52144-356-005

$17.31

9

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

9

CAP, DUST SEAL (NOK) This part replaces 52144-356-003.

52144-356-005

$17.31

9

CAP, DUST SEAL (NOK)

52144-356-005

$17.31

10

GUIDE, CHAIN

52146-MN1-671

$34.04

11

SLIDER, CHAIN GUIDE

52147-MN1-670

$13.97

12

SLIDER, CHAIN

52155-KT1-670

$36.39

13

PIN, CHAIN ADJUSTER

52156-KV6-000

$11.31

14

COLLAR, CHAIN ROLLER

52159-169-000

Unavailable

15

SLIDER, CHAIN

52170-KR6-000

$57.13

16

WASHER, CHAIN SLIDER

52171-KR6-000

$2.57

18

SCREW, PAN (5X10)

90104-ML7-920

$2.92

19

BOLT, SWINGARM PIVOT

90121-KT1-670

Unavailable

20

NUT, U (6MM)

90301-473-003

$4.07

21

NUT, U (14MM)

90305-GE8-003

$3.86

22

WASHER (6X9)

90513-405-000

$2.09

22

WASHER (6X9) This part replaces 90513-428-900.

90513-405-000

$2.09

23

BEARING, NEEDLE (20X26X20) (TOYO)

91070-GC4-601

$24.72

24

SCREW, PAN (5X8)

93500-05008-0G

$1.49

25

SCREW, FLAT (6X45)

93600-06045-0A

$1.49

26

FITTING, GREASE (B.76S)

96201-80000

$2.56

27

BOLT, FLANGE (6X16) This part replaces 96400-06016-00.

96300-06016-00

$1.49

27

BOLT, FLANGE (6X16)

96300-06016-00

$1.49

28

BOLT, FLANGE (6X10)

96300-06010-07

Unavailable

28

BOLT, FLANGE (6X10) This part replaces 96500-06010-07.

96300-06010-07

Unavailable

29

BOLT, FLANGE (6X14) This part replaces 96500-06014-00.

96300-06014-00

$1.49

29

BOLT, FLANGE (6X14)

96300-06014-00

$1.49

30

BOLT, FLANGE (6X45) This part replaces 96500-06045-00.

96300-06045-00

$2.23

30

BOLT, FLANGE (6X45)

96300-06045-00

$2.23
