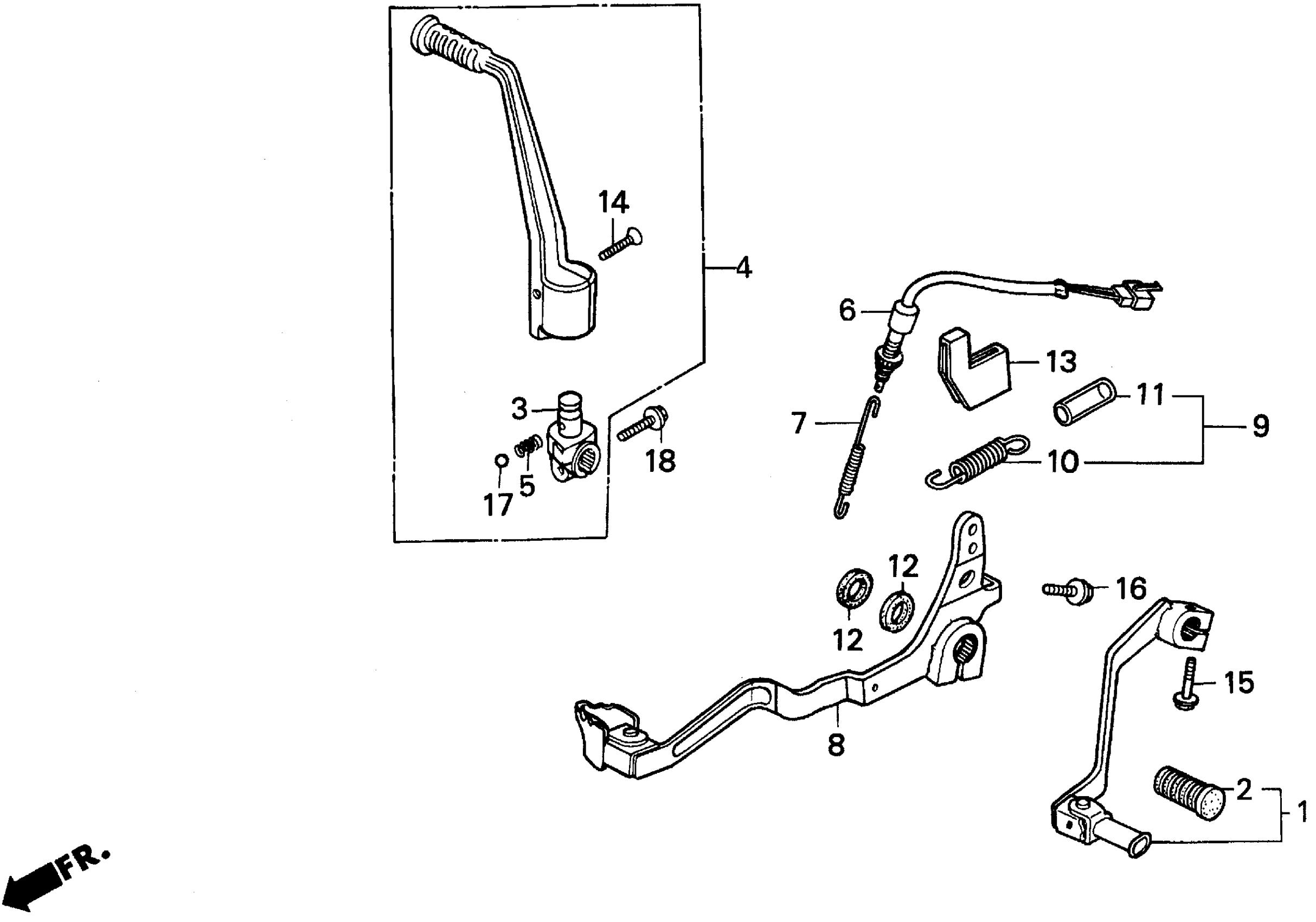

Honda XR250LA (91) MOTORCYCLE, JPN, VIN# JH2MD220-MK000003 TO JH2MD220-MK002363 PEDAL Diagram

PEDAL ASSY., CHANGE This part replaces 24700-KV6-000.

24700-KV6-610

Unavailable

PEDAL ASSY., CHANGE

24700-KV6-610

Unavailable

RUBBER, CHANGE PEDAL

24781-KE1-000

$3.97

JOINT, KICK ARM

28241-KT1-671

Unavailable

ARM ASSY., KICK STARTER

28300-KT1-671

$122.26

SPRING, KICK STARTER

28333-KK0-000

$2.51

SWITCH ASSY., RR. STOP This part replaces 35350-KL4-010.

35350-KV6-405

$18.15

SPRING, STOP SWITCH

35357-ME9-000

$4.74

PEDAL, RR. BRAKE

46500-KZ9-000

Unavailable

SPRING, BRAKE PEDAL

46514-KZ9-000

$5.14

TUBE, BRAKE PEDAL SPRING

46515-MN1-670

$3.26

DUST SEAL (17X20X2.5)

46525-KK0-003

$5.05

COVER, MIDDLE ARM

46526-KZ9-000

Unavailable

BOLT, KICK ARM

90101-KT1-780

Unavailable

BOLT, FLANGE (6X20)

90102-MN1-670

$2.92

BOLT, FLANGE (8X25)

95701-08025-07

$1.49

BALL, STEEL (#8) (1/4)

96211-08000

$1.49

BOLT, FLANGE (8X25)

96300-08025-07

$2.09
