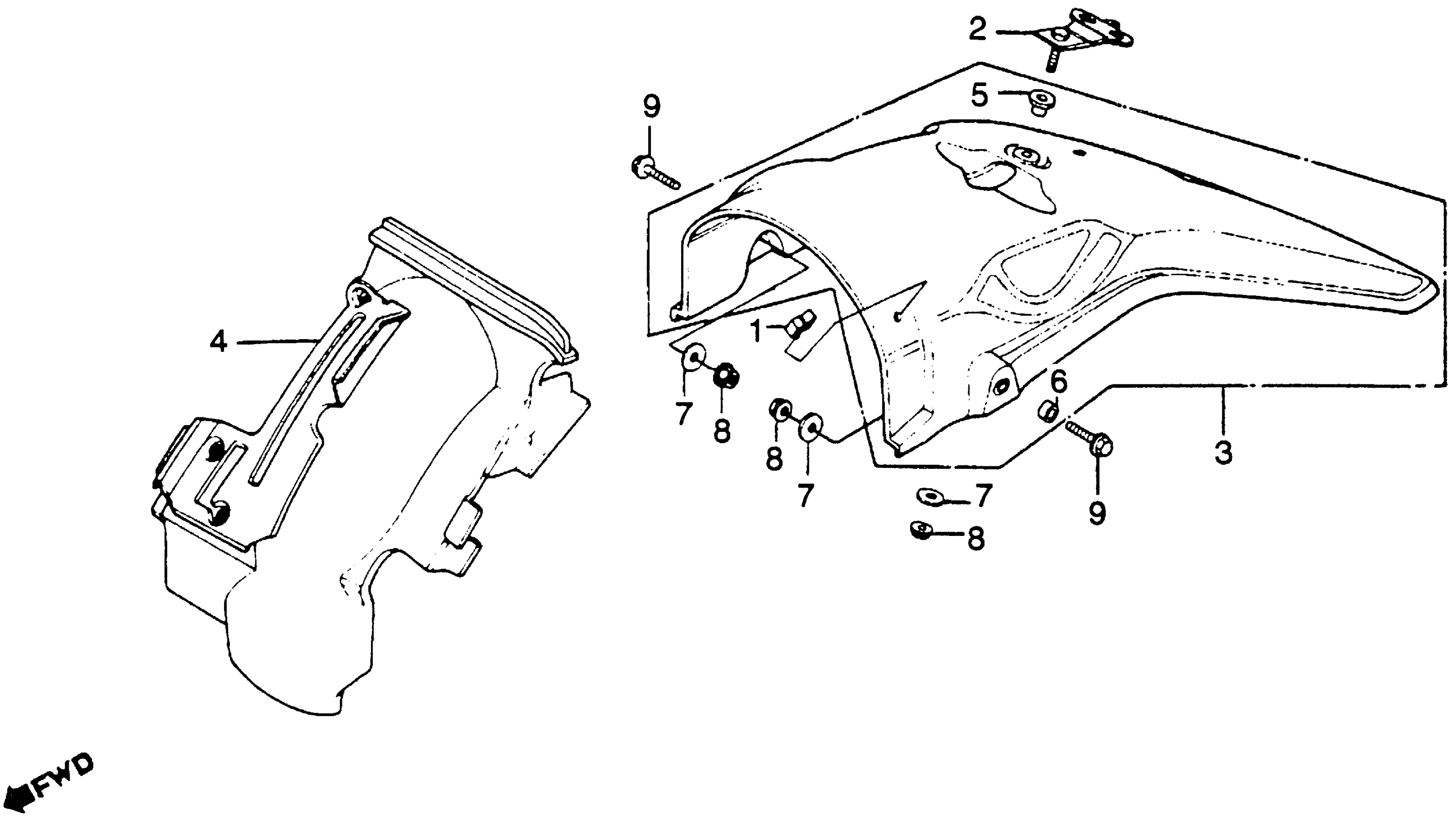

Honda XR250A (80) MOTORCYCLE, JPN, VIN# ME01-5100001 REAR FENDER Diagram

GROMMET, WIRE

32985-300-000

$3.35

STAY, TAILLIGHT (NOT AVAILABLE)

33720-434-000

Unavailable

FENDER ASSY., RR. *R23* (TAHITIAN RED) (NOT AVAILABLE)

80100-434-000ZA

Unavailable

FENDER B, RR. (NOT AVAILABLE)

80105-428-000

Unavailable

BOLT, RR. SWINGARM PIVOT

90121-KE6-830

Unavailable

BOLT, RR. SWINGARM PIVOT This part replaces 90121-107-000.

90121-KE6-830

Unavailable

BOLT, RR. SWINGARM PIVOT This part replaces 90121-107-780.

90121-KE6-830

Unavailable

COLLAR (9X12X4.5) (NOT AVAILABLE)

90512-122-700

Unavailable

WASHER (6MM)

90525-434-000

Unavailable

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
