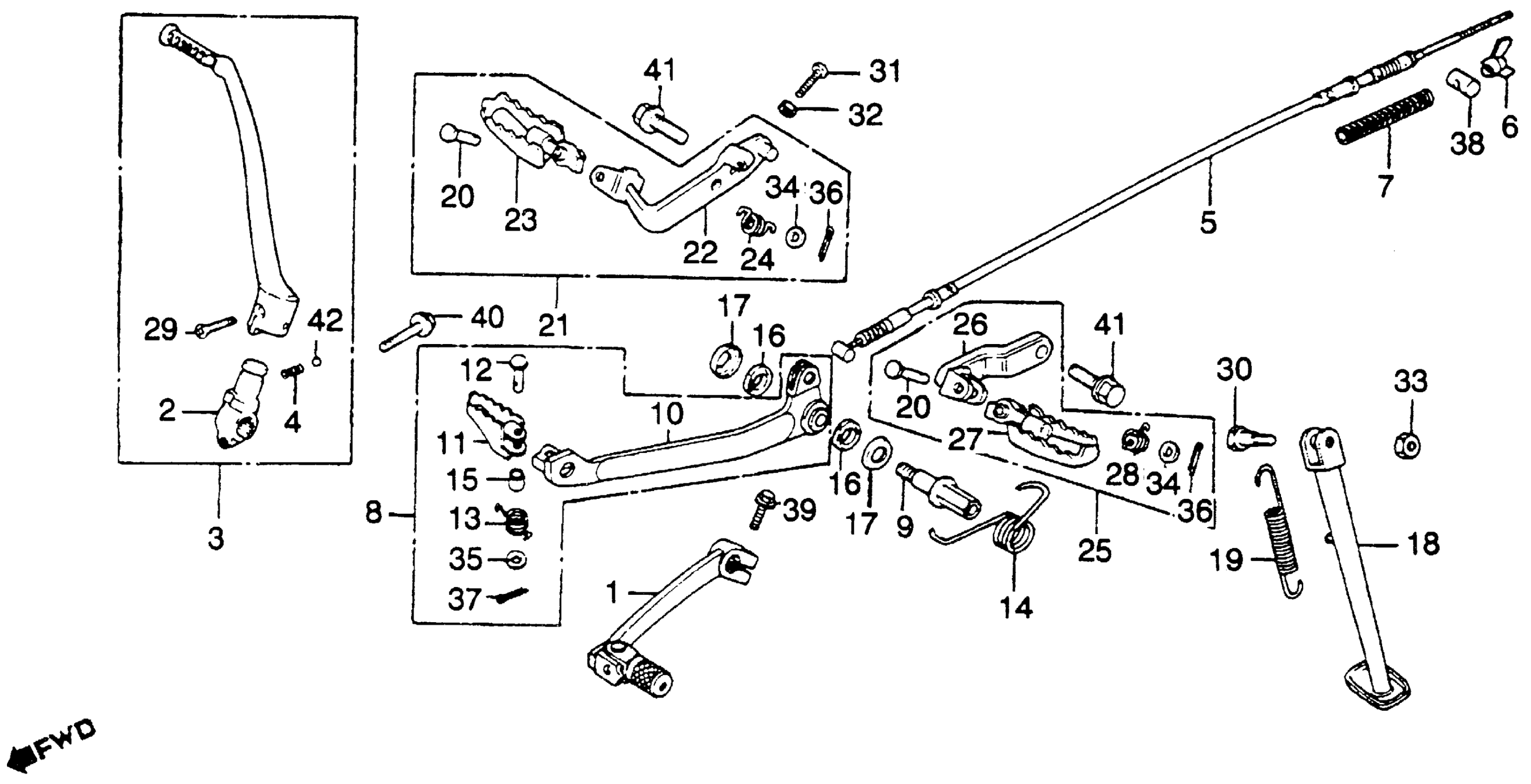

Honda XR250A (80) MOTORCYCLE, JPN, VIN# ME01-5100001 PEDAL + STEP + KICK STARTER ARM Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-434-000

Unavailable

2

JOINT, KICK ARM (NOT AVAILABLE)

28241-428-871

Unavailable

3

ARM, KICK STARTER This part replaces 28300-428-871.

28300-KB7-910

Unavailable

4

SPRING, KICK STARTER STOPPER

28333-300-000

$2.92

5

CABLE, RR. BRAKE (NOT AVAILABLE)

43450-428-870

Unavailable

6

NUT, BRAKE ADJUST

43459-434-000

$15.27

7

SPRING A, BRAKE CABLE (NOT AVAILABLE)

45452-044-300

Unavailable

8

PEDAL ASSY., BRAKE (NOT AVAILABLE) This part replaces 46500-434-000.

46500-429-000

Unavailable

9

SHAFT, RR. BRAKE This part replaces 46510-428-000.

46515-429-000

$26.56

9

SHAFT, RR. BRAKE (NOT AVAILABLE)

46515-429-000

$26.56

10

PEDAL ASSY., BRAKE (NOT AVAILABLE) This part replaces 46510-434-000.

46500-429-000

Unavailable

11

PEDAL, BRAKE (NOT AVAILABLE)

46511-434-000

Unavailable

12

PIN, BRAKE PEDAL

46512-434-000

Unavailable

13

SPRING, BRAKE PEDAL RETURN (NOT AVAILABLE)

46513-434-000

Unavailable

14

SPRING, BRAKE PEDAL This part replaces 46514-428-000.

46514-428-900

Unavailable

14

SPRING, BRAKE PEDAL This part replaces 46514-429-000.

46514-428-900

Unavailable

15

COLLAR, BRAKE PEDAL (NOT AVAILABLE)

46514-434-000

Unavailable

16

DUST SEAL, BRAKE PEDAL

46516-430-000

Unavailable

17

WASHER, BRAKE PIVOT (NOT AVAILABLE)

46518-361-000

Unavailable

18

BAR, SIDE STAND

50530-434-000

Unavailable

19

SPRING C, SIDE STAND (NOT AVAILABLE)

50535-434-000

Unavailable

20

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

20

PIN, STEP BAR JOINT

50603-033-010

$3.30

21

ARM ASSY., R. FOOTPEG (NOT AVAILABLE)

50610-428-000

Unavailable

22

ARM, R. FOOTPEG (NOT AVAILABLE)

50615-428-000

Unavailable

23

FOOTPEG, R.

50616-428-000

Unavailable

24

SPRING, R. STEP RETURN

50617-MM9-000

$4.53

24

SPRING, R. STEP RETURN This part replaces 50617-329-000.

50617-MM9-000

$4.53

25

ARM ASSY., L. FOOTPEG (NOT AVAILABLE)

50620-428-000

Unavailable

26

ARM, L. FOOTPEG

50624-428-000

Unavailable

27

FOOTPEG, L.

50642-428-000

Unavailable

28

SPRING, L. STEP RETURN

50644-MM9-000

$4.53

28

SPRING, L. STEP RETURN This part replaces 50644-329-000.

50644-MM9-000

$4.53

29

BOLT, KICK ARM

90101-329-000

$3.67

30

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

31

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

32

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM)

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

33

NUT, HEX. (10MM)

94030-10000

$1.49

34

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

34

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

34

WASHER, PLAIN (6MM)

94101-06800

$1.49

35

WASHER, PLAIN (8MM)

94101-08000

$1.49

36

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

36

PIN, COTTER (1.6X25)

94201-16250

$1.49

37

PIN, SPLIT (2.0X12)

94201-20120

$1.49

38

JOINT B, BRAKE ARM

95015-32001

$1.49

39

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

39

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

40

BOLT, FLANGE (8X28) This part replaces 95700-08028-00.

95701-08028-00

$1.49

40

BOLT, FLANGE (8X28)

95701-08028-00

$1.49

41

BOLT, FLANGE (12X25) This part replaces 95700-12025-00.

95701-12025-00

$2.05

41

BOLT, FLANGE (12X25)

95701-12025-00

$2.05

42

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
