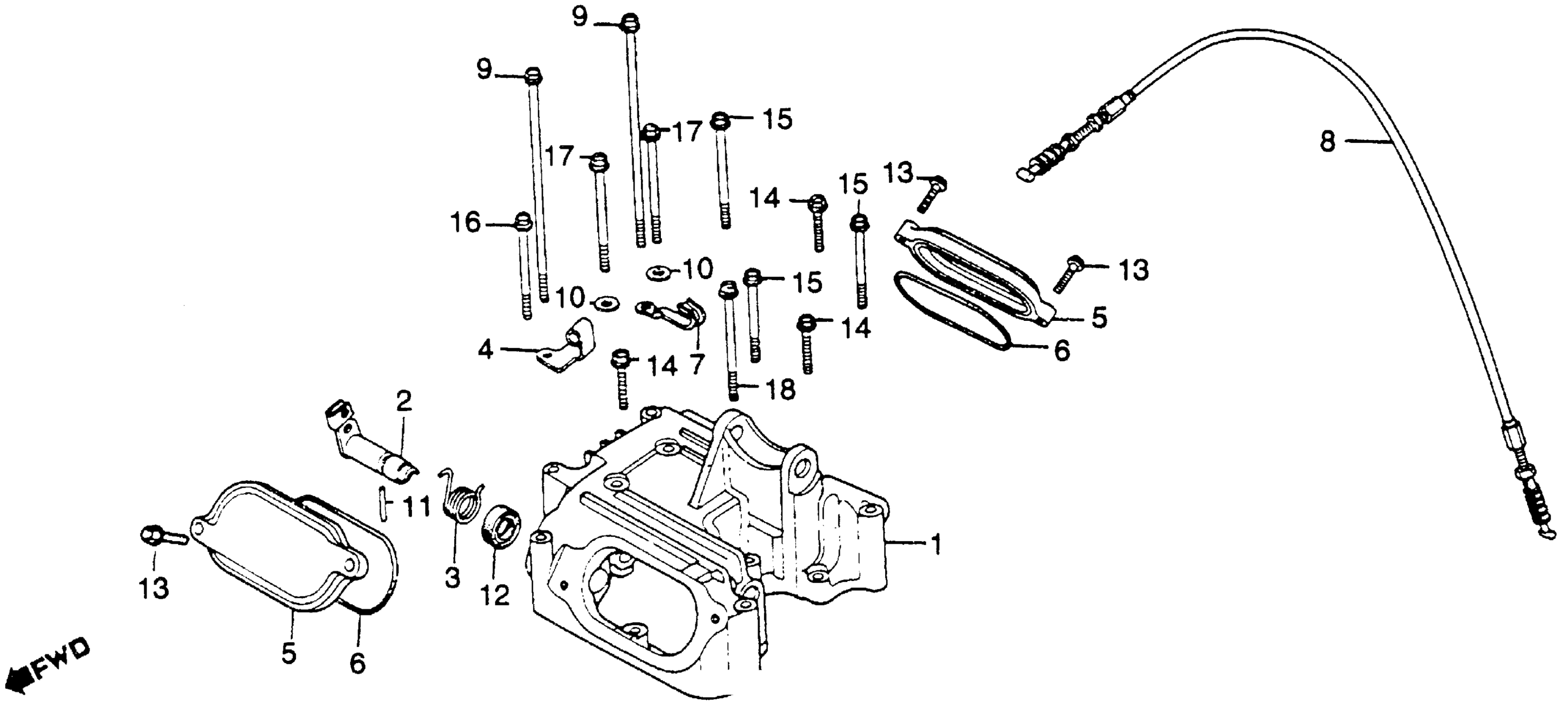

Honda XR250A (80) MOTORCYCLE, JPN, VIN# ME01-5100001 CYLINDER HEAD COVER + DECOMPRESSION CABLE Diagram

#

Description
Price

1

COVER, CYLINDER HEAD (NOT AVAILABLE)

12310-428-325

Unavailable

2

LIFTER, VALVE (NOT AVAILABLE)

12319-428-000

Unavailable

3

SPRING, VALVE LIFT

12321-428-000

Unavailable

4

RECEIVER, DECOMPRESSION (NOT AVAILABLE)

12323-428-000

Unavailable

5

COVER, TAPPET ADJUSTING HOLE

12351-428-000

$34.49

6

GASKET, TAPPET COVER (KOYO)

12392-HC4-005

$3.66

6

GASKET, TAPPET COVER (KOYO) This part replaces 12392-428-000.

12392-HC4-005

$3.66

7

CLAMP, CLUTCH CABLE (NOT AVAILABLE)

22825-428-000

Unavailable

8

CABLE, DECOMPRESSION (NOT AVAILABLE)

28291-428-000

Unavailable

9

BOLT, FLANGE (6X130) This part replaces 90048-329-000.

95701-06130-00

$2.85

9

BOLT, FLANGE (6X130)

95701-06130-00

$2.85

10

WASHER, SEALING (6MM)

90442-397-000

$2.25

11

PIN, DOWEL (5X28)

91101-428-000

$3.57

12

OIL SEAL (17X27X5) (KOYO) This part replaces 91201-428-005.

91202-HC5-005

$3.32

12

OIL SEAL (17X27X5) (KOYO)

91202-HC5-005

$3.32

13

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.61

13

BOLT, FLANGE (6X20)

95701-06020-00

$1.61

14

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.64

14

BOLT, FLANGE (6X25)

95701-06025-00

$1.64

15

BOLT, FLANGE (6X45) This part replaces 95700-06045-00.

95701-06045-07

$1.97

15

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$1.97

15

BOLT, FLANGE (6X45)

95701-06045-07

$1.97

16

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$1.97

16

BOLT, FLANGE (6X50)

95701-06050-00

$1.97

17

BOLT, FLANGE (6X60) This part replaces 95700-06060-00.

95701-06060-00

$0.29

17

BOLT, FLANGE (6X60)

95701-06060-00

$0.29

18

BOLT, FLANGE (6X65)

95701-06065-00

$1.38

18

BOLT, FLANGE (6X65) This part replaces 95718-06065-00.

95701-06065-00

$1.38
