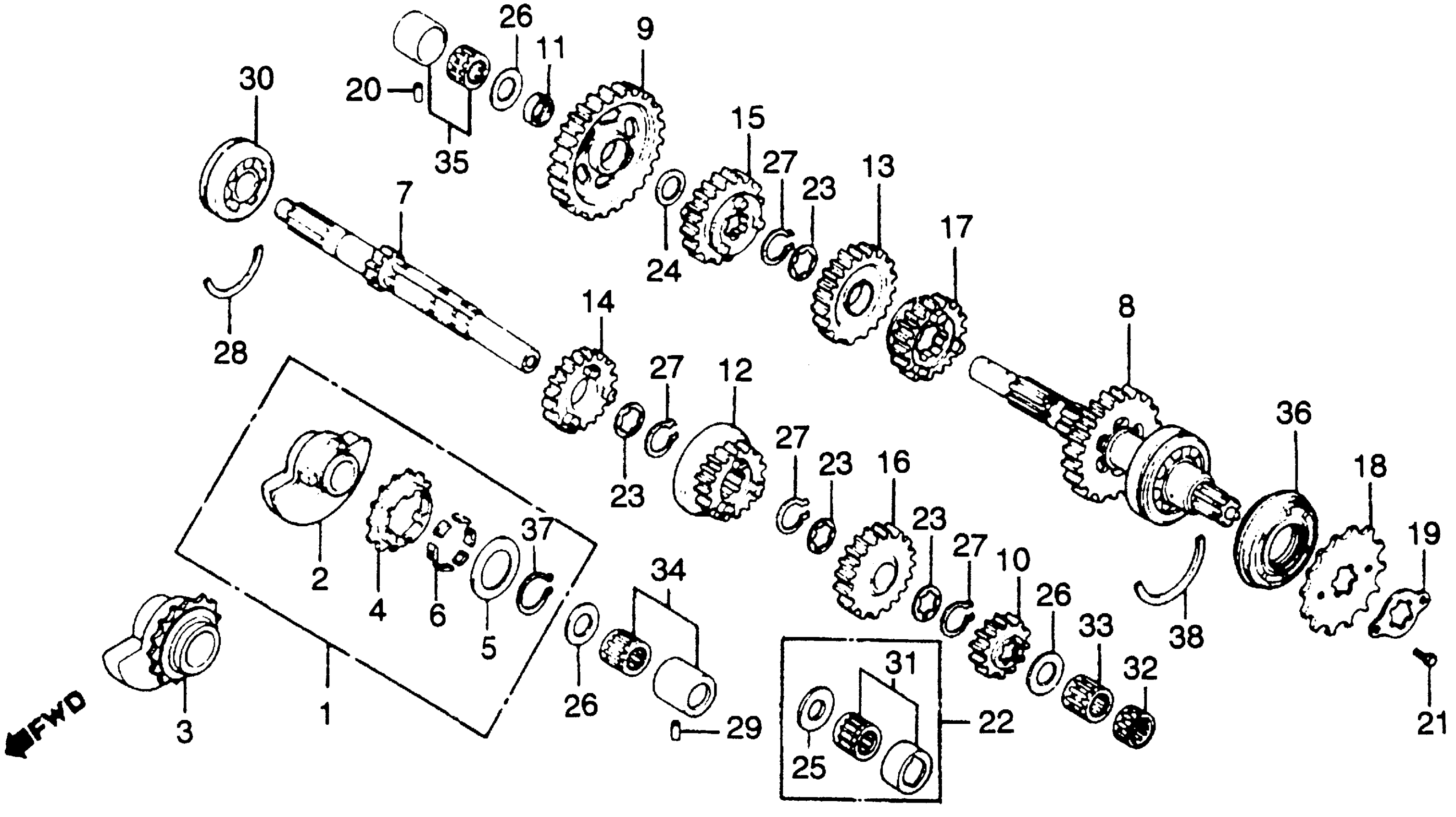

Honda XR250A (79) MOTORCYCLE, JPN, VIN# ME01-5000032 TRANSMISSION Diagram

#

Description
Price

1

BALANCER, RR. (NOT AVAILABLE)

13410-428-000

Unavailable

2

WEIGHT, RR. BALANCER (NOT AVAILABLE) | Use up to Engine SN 5008398 This part replaces 13420-428-300.

13420-428-310

Unavailable

3

WEIGHT, RR. BALANCER (NOT AVAILABLE) | Use from Engine SN 5008399

13420-428-310

Unavailable

4

SPROCKET, BALANCER DRIVEN (23T) (NOT AVAILABLE)

13611-428-003

Unavailable

5

PLATE, SIDE

13613-428-300

Unavailable

6

RUBBER, DAMPER (NOT AVAILABLE)

13614-428-300

Unavailable

7

MAINSHAFT, TRANSMISSION This part replaces 23211-428-010.

23211-428-020

Unavailable

7

MAINSHAFT, TRANSMISSION

23211-428-020

Unavailable

8

COUNTERSHAFT (37T) (NOT AVAILABLE)

23220-428-010

Unavailable

9

GEAR, COUNTERSHAFT LOW (42T) (NOT AVAILABLE)

23411-428-000

Unavailable

10

GEAR, MAINSHAFT SECOND (20T) (NOT AVAILABLE)

23421-428-000

Unavailable

11

BUSH (20MM) (NOT AVAILABLE)

23422-428-000

Unavailable

12

GEAR, MAINSHAFT THIRD (24T) (NOT AVAILABLE)

23441-428-000

Unavailable

13

GEAR, COUNTERSHAFT THIRD (33T) (NOT AVAILABLE) This part replaces 23451-428-000.

23451-428-010

Unavailable

13

GEAR, COUNTERSHAFT THIRD (33T) (NOT AVAILABLE)

23451-428-010

Unavailable

14

GEAR, MAINSHAFT FOURTH (27T) (NOT AVAILABLE) This part replaces 23461-428-000.

23461-428-010

Unavailable

14

GEAR, MAINSHAFT FOURTH (27T) (NOT AVAILABLE)

23461-428-010

Unavailable

15

GEAR, COUNTERSHAFT FOURTH (30T) (NOT AVAILABLE)

23471-428-000

Unavailable

16

GEAR, MAINSHAFT TOP (30T) (NOT AVAILABLE) This part replaces 23481-428-000.

23481-428-010

Unavailable

17

GEAR, COUNTERSHAFT TOP (27T) (NOT AVAILABLE)

23491-428-000

Unavailable

18

SPROCKET, DRIVE (13T) (NOT AVAILABLE)

23801-434-000

Unavailable

19

PLATE, DRIVE SPROCKET FIXING (NOT AVAILABLE)

23811-434-000

Unavailable

20

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

21

BOLT, DRIVE SPROCKET FIXING

90084-041-000

$4.62

22

BEARING, NEEDLE (NOT AVAILABLE) | Use up to Engine SN 5008790

90450-428-305

Unavailable

23

WASHER, THRUST (25MM)

90451-413-000

$3.26

24

WASHER, THRUST (20MM)

90454-428-000

$2.53

25

SPACER (20MM) (NOT AVAILABLE)

90454-429-000

Unavailable

26

WASHER, THRUST (20MM)

90458-292-000

$3.54

27

CIRCLIP (25MM)

90601-107-000

$3.74

28

SET-RING (56MM) (NOT AVAILABLE)

90601-393-000

Unavailable

29

PIN, BEARING SETTING (NOT AVAILABLE)

90705-428-010

Unavailable

30

BEARING, RADIAL BALL (63/22) (NOT AVAILABLE) This part replaces 91007-393-003.

91007-438-003

Unavailable

31

BEARING, NEEDLE (20X26X20) | Use from Engine SN 5008791

91011-P48-008

Unavailable

31

BEARING, NEEDLE (20X26X20) | Use from Engine SN 5008791 This part replaces 91011-428-008.

91011-P48-008

Unavailable

32

BEARING, NEEDLE (20X26X17) (TOYO) | Use up to Engine SN 5008790 This part replaces 91012-428-008.

91012-471-008

Unavailable

33

BEARING, NEEDLE (20X26X9) (NOT AVAILABLE) | Use up to Engine SN 5008790

91014-428-008

Unavailable

34

BEARING, NEEDLE (20MM) (NOT AVAILABLE)

91020-428-006

Unavailable

35

BEARING, NEEDLE (20MM)

91022-415-008

$52.13

36

OIL SEAL (34X62X14)

91206-KB7-005

$27.44

36

OIL SEAL (34X62X14) This part replaces 91206-428-005.

91206-KB7-005

$27.44

37

CIRCLIP (OUTER) (32MM) | Use up to Engine SN 5008398

94510-32000

$1.77

38

SET-RING (62MM) (NOT AVAILABLE)

90602-428-000

Unavailable

38

SET-RING (62MM) (NOT AVAILABLE) This part replaces 95015-26200.

90602-428-000

Unavailable
