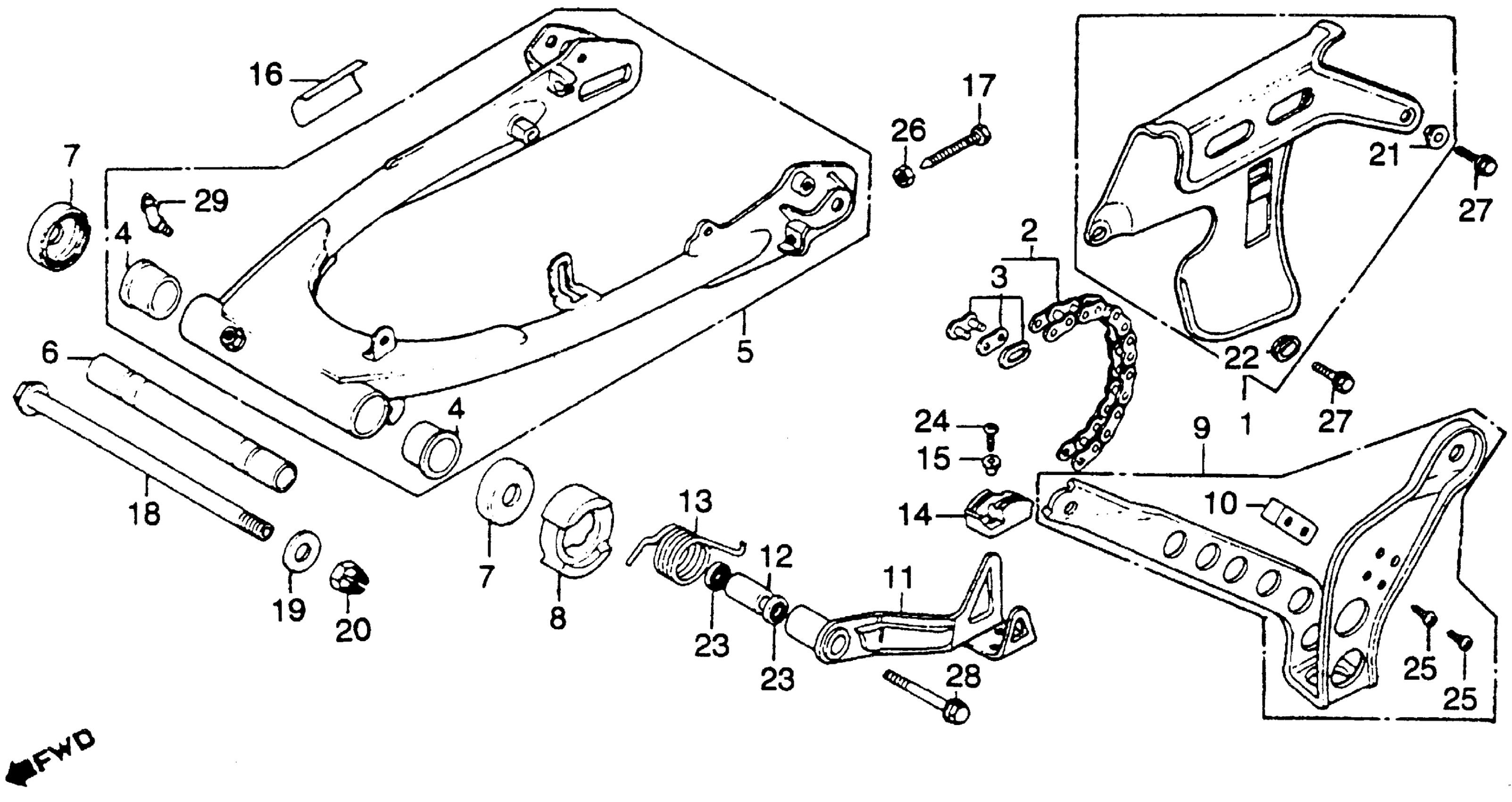

Honda XR250A (79) MOTORCYCLE, JPN, VIN# ME01-5000032 SWINGARM + DRIVE CHAIN Diagram

#

Description
Price

1

GUARD, DRIVE CHAIN (NOT AVAILABLE)

40510-428-000

Unavailable

2

CHAIN, DRIVE (102L) (DAIDO)

405W3-434-505

Unavailable

2

CHAIN, DRIVE (102L) (DAIDO) This part replaces 40530-KK4-005.

405W3-434-505

Unavailable

2

CHAIN, DRIVE (102L) (DAIDO) This part replaces 40530-434-003.

405W3-434-505

Unavailable

3

MASTER LINK This part replaces 40531-357-305.

40531-958-003

Unavailable

3

MASTER LINK This part replaces 40531-381-000.

40531-958-003

Unavailable

3

MASTER LINK This part replaces 40531-430-003.

40531-958-003

Unavailable

3

MASTER LINK This part replaces 40531-430-005.

40531-958-003

Unavailable

3

MASTER LINK This part replaces 40531-434-003.

40531-958-003

Unavailable

3

MASTER LINK

40531-958-003

Unavailable

3

MASTER LINK This part replaces 40540-357-305.

40531-958-003

Unavailable

4

BUSH, PIVOT THRUST | Use up to Frame SN 5005341 This part replaces 52109-357-006.

52109-357-310

Unavailable

4

BUSH, PIVOT THRUST | Use up to Frame SN 5005341

52109-357-310

Unavailable

4

BUSH, PIVOT THRUST

52109-357-310

Unavailable

5

SWINGARM ASSY., RR. *NH1* (BLACK) (NOT AVAILABLE)

52110-434-010ZA

Unavailable

6

COLLAR, SWINGARM CENTER (NOT AVAILABLE) | Use up to Frame SN 5004688 This part replaces 52141-391-670.

52141-391-671

Unavailable

6

COLLAR, SWINGARM CENTER (NOT AVAILABLE)

52141-391-671

Unavailable

7

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$17.31

7

CAP, DUST SEAL (NOK) This part replaces 52144-286-000.

52144-356-005

$17.31

7

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

7

CAP, DUST SEAL (NOK) This part replaces 52144-356-003.

52144-356-005

$17.31

7

CAP, SWINGARM DUST SEAL (NOK)

52144-356-005

$17.31

8

SLIDER, DRIVE CHAIN (NOT AVAILABLE)

52155-434-000

Unavailable

11

TENSIONER, CHAIN (NOT AVAILABLE)

52170-434-010

Unavailable

12

COLLAR, CHAIN TENSIONER | Use up to Frame SN 5001372 This part replaces 52171-434-000.

52171-434-020

Unavailable

12

COLLAR, CHAIN TENSIONER | Use up to Frame SN 5001372 This part replaces 52171-434-010.

52171-434-020

Unavailable

12

COLLAR, CHAIN TENSIONER This part replaces 52171-434-010.

52171-434-020

Unavailable

12

COLLAR, CHAIN TENSIONER | Use up to Frame SN 5001372

52171-434-020

Unavailable

12

COLLAR, CHAIN TENSIONER

52171-434-020

Unavailable

13

SPRING, CHAIN TENSIONER

52174-434-000

Unavailable

14

SLIPPER, TENSIONER This part replaces 52178-376-000.

52178-434-000

Unavailable

14

SLIPPER, TENSIONER

52178-434-000

Unavailable

15

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

16

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

17

BOLT, CHAIN ADJUSTING

90119-300-000

$9.49

18

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-428-000

Unavailable

19

WASHER, PIVOT BOLT (NOT AVAILABLE)

90122-428-000

Unavailable

20

NUT, LOCK (14MM)

90354-268-000

$6.78

21

WASHER (6X20)

90512-300-000

$3.08

22

WASHER (6X9)

90513-323-000

$1.84

23

OIL SEAL (14X20X3)

91201-434-003

$4.26

24

SCREW, PAN (5X10)

93500-05010-0A

$1.49

26

NUT, HEX. (8MM)

94001-08000-0S

$1.49

27

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

27

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

28

BOLT, FLANGE (8X45) This part replaces 95700-08045-00.

95701-08045-00

$1.49

28

BOLT, FLANGE (8X45)

95701-08045-00

$1.49

29

NIPPLE, GREASE (B.T6S)

96201-80000

$2.56
