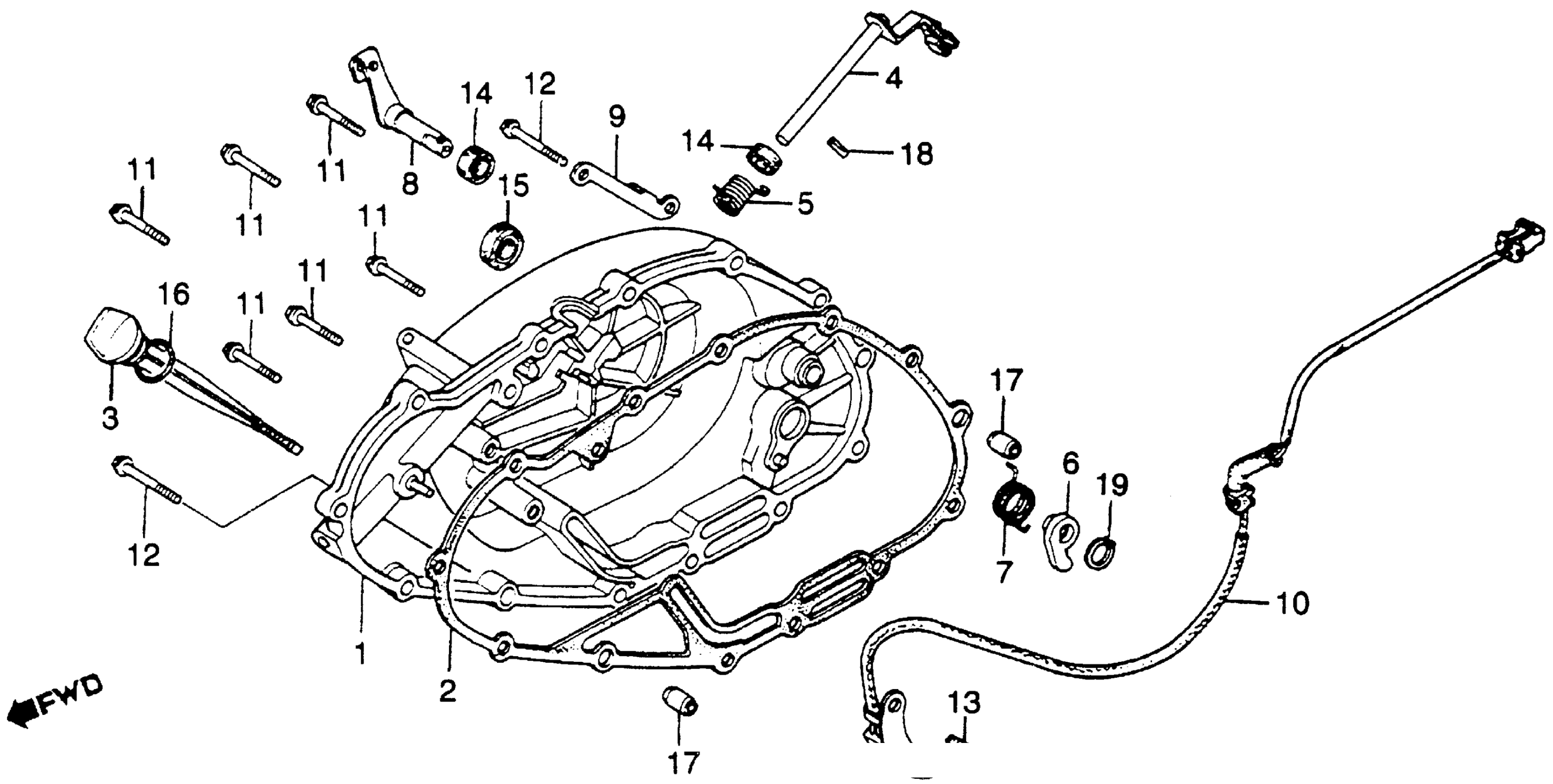

Honda XR250A (79) MOTORCYCLE, JPN, VIN# ME01-5000032 RIGHT CRANKCASE COVER + PULSER Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE) | Use up to Engine SN 5008164 This part replaces 11330-428-000.

11330-429-000

Unavailable

1

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-429-000

Unavailable

2

GASKET, R. CRANKCASE COVER This part replaces 11394-MA0-000.

11394-MA0-306

$19.89

2

GASKET, R. CRANKCASE COVER

11394-MA0-306

$19.89

2

GASKET, R. CRANKCASE COVER This part replaces 11394-428-000.

11394-MA0-306

$19.89

2

GASKET, R. CRANKCASE COVER This part replaces 11394-429-000.

11394-MA0-306

$19.89

3

DIPSTICK, OIL This part replaces 15650-399-000.

15650-471-000

Unavailable

3

DIPSTICK, OIL

15650-471-000

Unavailable

4

LEVER, CLUTCH (NOT AVAILABLE)

22810-428-000

Unavailable

5

SPRING, CLUTCH LEVER

22815-428-000

$3.28

6

FOLLOWER, CAM

28271-428-000

Unavailable

7

SPRING, FOLLOWER (NOT AVAILABLE)

28274-428-000

Unavailable

8

SHAFT, FOLLOWER (NOT AVAILABLE)

28280-428-000

Unavailable

9

RECEIVER B, DECOMPRESSION (NOT AVAILABLE)

28287-428-000

Unavailable

10

GENERATOR ASSY. B, PULSE (NOT AVAILABLE)

30302-428-305

Unavailable

10

GENERATOR ASSY. C, PULSE (NOT AVAILABLE)

30303-428-305

Unavailable

10

GENERATOR ASSY. A, PULSE

30301-428-305

Unavailable

11

BOLT, FLANGE (6X25) This part replaces 90005-415-000.

96000-06025-00

$2.00

11

BOLT, FLANGE (6X25) This part replaces 90005-437-000.

96000-06025-00

$2.00

11

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

11

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

12

BOLT, FLANGE (6X40) This part replaces 90007-428-000.

96001-06040-00

$2.16

12

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

12

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

13

SCREW, TAPPING (6X16) (NOT AVAILABLE)

90190-663-671

Unavailable

14

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

14

OIL SEAL (12X22X5) This part replaces 91201-148-005.

91201-965-000

$4.06

14

OIL SEAL (12X22X5)

91201-965-000

$4.06

15

OIL SEAL (18X29X7)

91204-286-003

$4.31

15

OIL SEAL (18X29X7) This part replaces 91204-286-005.

91204-286-003

$4.31

16

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

16

O-RING (18X3)

91307-035-000

$2.92

17

PIN, DOWEL (10X16)

94301-10160

$2.28

18

PIN, SPRING (3X10)

94305-30102

$1.74

19

CIRCLIP, OUTER (10MM)

94510-10000

$1.49
