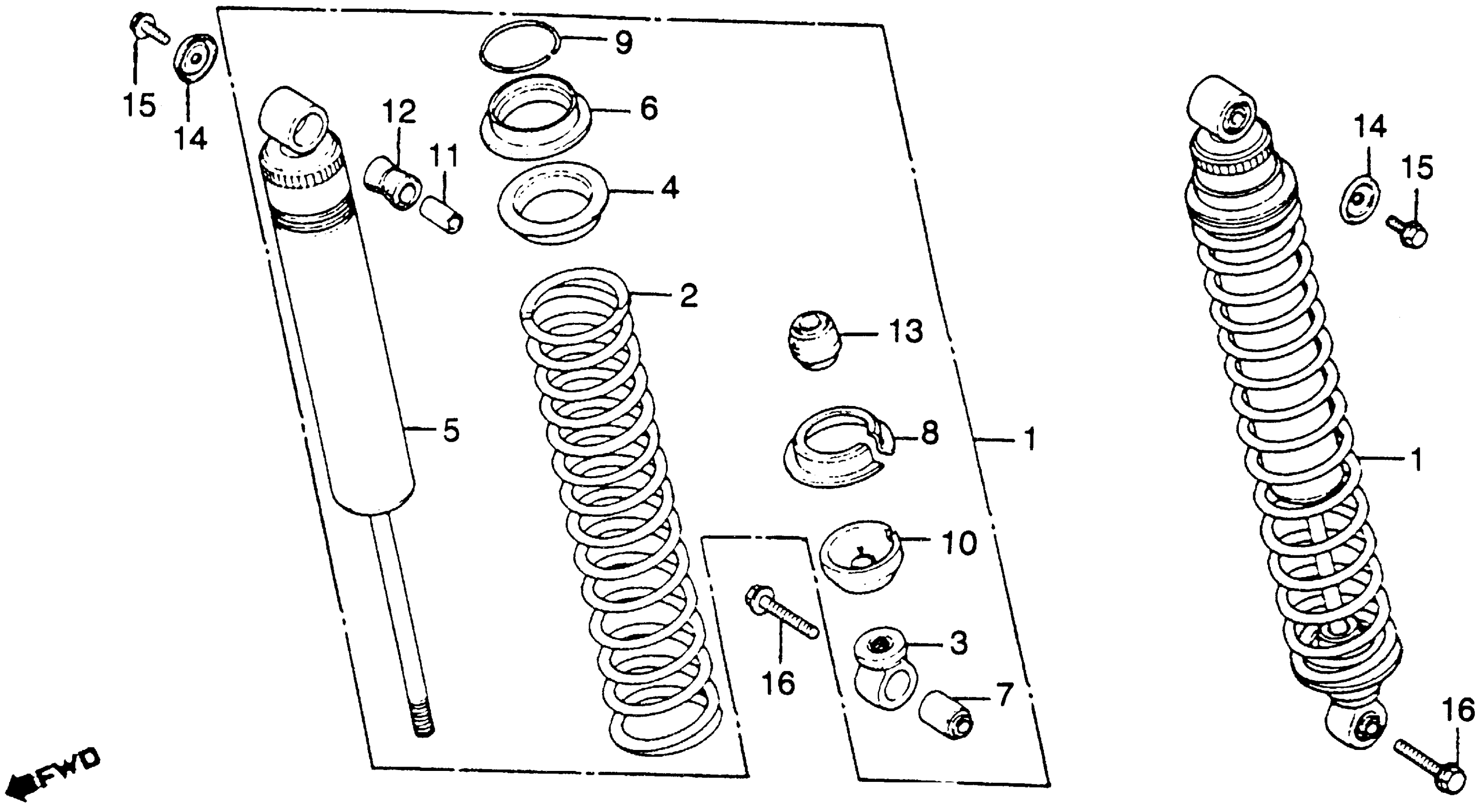

Honda XR250A (79) MOTORCYCLE, JPN, VIN# ME01-5000032 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. (SHOWA) (NOT AVAILABLE) This part replaces 52400-434-003.

52400-434-013

Unavailable

1

SHOCK ABSORBER ASSY., RR. (SHOWA) (NOT AVAILABLE)

52400-434-013

Unavailable

2

SPRING, RR. SHOCK ABSORBER (SHOWA) (NOT AVAILABLE)

52401-434-003

Unavailable

3

JOINT (UPPER) (NOT AVAILABLE)

52403-360-700

Unavailable

4

GUIDE, SPRING (LOWER) (NOT AVAILABLE)

52407-381-771

Unavailable

5

DAMPER, RR. (SHOWA) (NOT AVAILABLE) This part replaces 52410-434-003.

52410-434-013

Unavailable

5

DAMPER, RR. (SHOWA) (NOT AVAILABLE)

52410-434-013

Unavailable

6

ADJUSTER, SPRING (NOT AVAILABLE)

52422-400-681

Unavailable

7

BUSH, RR. SHOCK ABSORBER

52451-357-000

Unavailable

8

SEAT, SPRING STOPPER (NOT AVAILABLE)

52459-400-681

Unavailable

9

C-RING, STOPPER (NOT AVAILABLE)

52460-400-681

Unavailable

10

SEAT, SPRING STOPPER LOCK (NOT AVAILABLE)

52483-430-000

Unavailable

11

COLLAR, RR. SHOCK ABSORBER RUBBER BUSH

52486-056-000

$4.28

12

BUSH, RUBBER (UPPER) (SHOWA)

52489-399-601

$5.28

13

RUBBER ASSY., STOPPER (NOT AVAILABLE)

52517-400-681

Unavailable

14

WASHER, RR. SHOCK (NOT AVAILABLE) This part replaces 90502-428-000.

90502-429-770

Unavailable

14

WASHER, RR. SHOCK (NOT AVAILABLE)

90502-429-770

Unavailable

15

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

15

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

16

BOLT, FLANGE (10X35) This part replaces 95700-10035-00.

95701-10035-00

$1.51

16

BOLT, FLANGE (10X35)

95701-10035-00

$1.51
