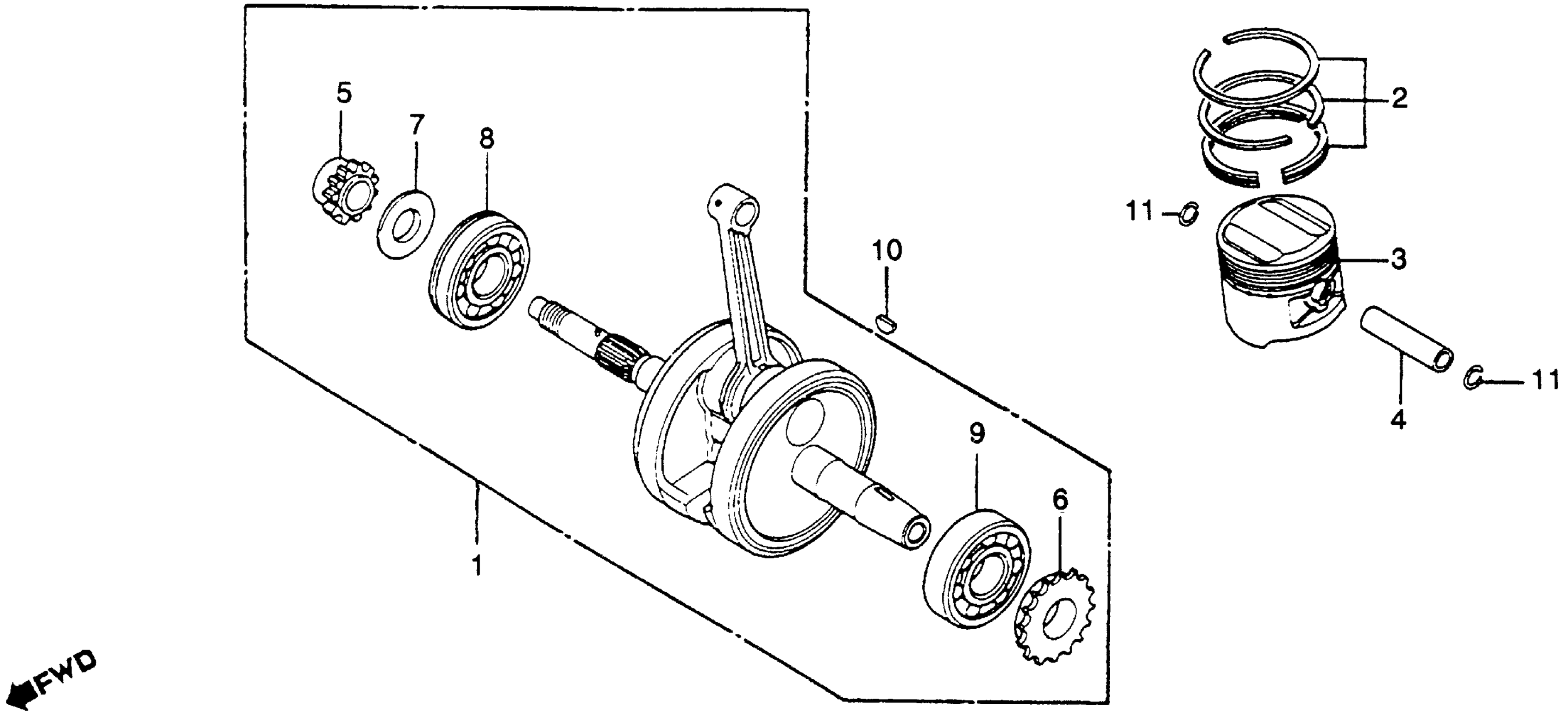

Honda XR250A (79) MOTORCYCLE, JPN, VIN# ME01-5000032 PISTON + CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT This part replaces 13000-428-000.

13000-471-000

Unavailable

2

RING SET, PISTON (STD) This part replaces 13011-434-003.

13011-471-003

Unavailable

2

RING SET, PISTON (STD)

13011-471-003

Unavailable

2

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional). This part replaces 13021-434-003.

13021-471-003

$49.44

2

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional).

13021-471-003

$49.44

2

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional). This part replaces 13031-434-003.

13031-471-003

Unavailable

2

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional).

13031-471-003

Unavailable

3

PISTON (STD) (NOT AVAILABLE) This part replaces 13101-434-003.

13101-434-770

Unavailable

3

PISTON (OS 0.25) (NOT AVAILABLE) | (Optional).

13102-434-003

Unavailable

3

PISTON (OS 0.50) PISTON (STD) | (Optional).

13103-434-003

Unavailable

4

PIN, PISTON This part replaces 13111-428-000.

13111-471-000

Unavailable

4

PIN, PISTON

13111-471-000

Unavailable

5

SPROCKET, BALANCER DRIVE (23T)

13621-428-300

Unavailable

6

SPROCKET, TIMING (19T) (NOT AVAILABLE)

14312-428-300

Unavailable

7

WASHER (23MM) (NOT AVAILABLE)

90455-428-000

Unavailable

8

BEARING, RADIAL BALL (6306C3) (TOYO) (NOT AVAILABLE) This part replaces 91001-428-003.

91001-471-008

Unavailable

9

BEARING, BALL (6306) This part replaces 91002-428-003.

91030-950-003

$41.07

9

BEARING, BALL (6306) This part replaces 91002-471-008.

91030-950-003

$41.07

9

BEARING, BALL (6306)

91030-950-003

$41.07

10

KEY, SPECIAL WOODRUFF (25X18)

94401-25180

$1.49

11

CLIP, PISTON PIN (19MM)

94601-19000

$1.49
