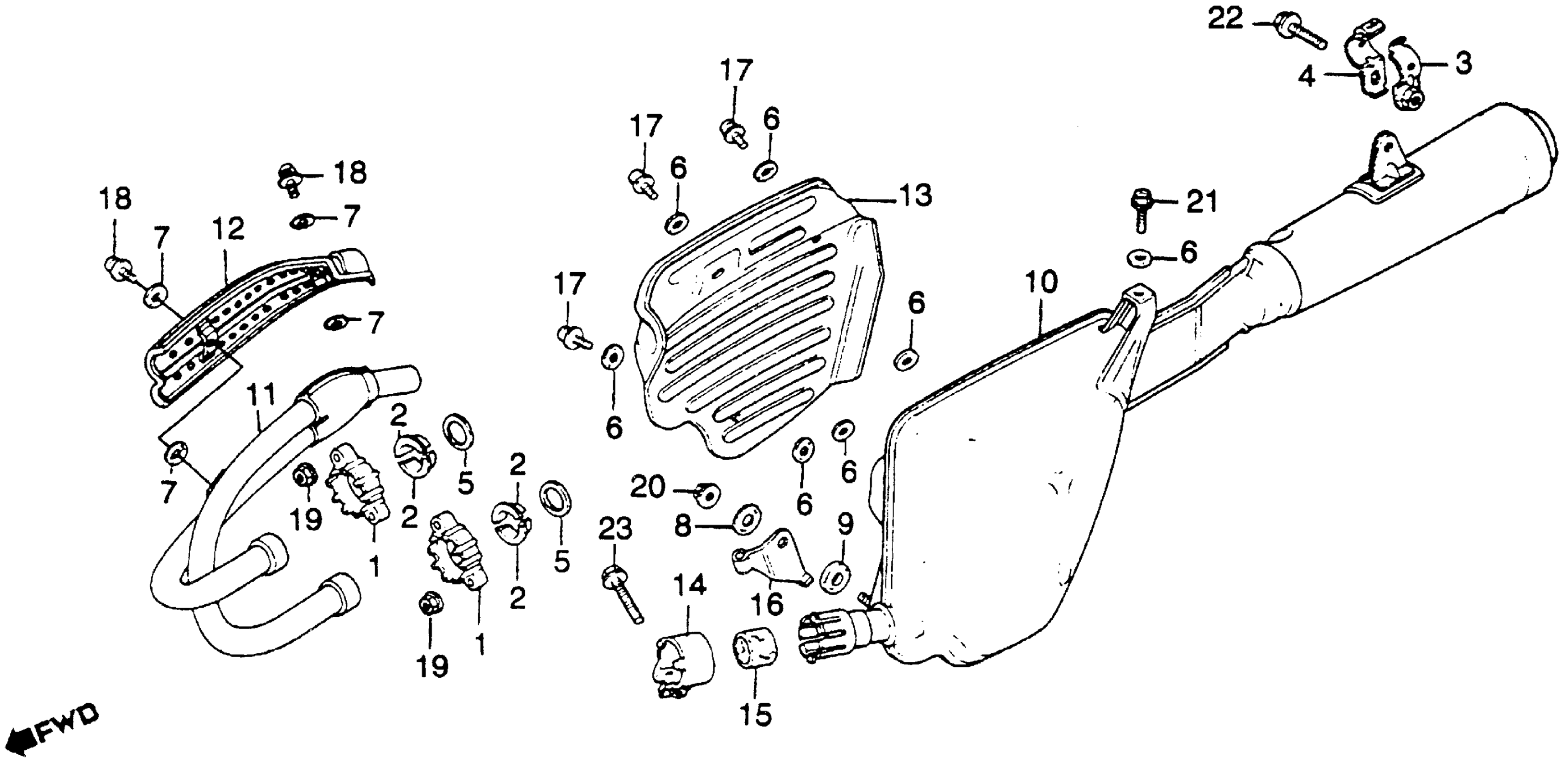

Honda XR250A (79) MOTORCYCLE, JPN, VIN# ME01-5000032 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE (NOT AVAILABLE)

18231-428-000

Unavailable

2

COLLAR, EX. PIPE JOINT (NOT AVAILABLE)

18233-434-000

Unavailable

3

BAND A, SUB-MUFFLER (NOT AVAILABLE)

18283-428-000

Unavailable

4

BAND B, SUB-MUFFLER

18284-428-000

Unavailable

5

GASKET, EX. PIPE

18291-HB2-900

$3.72

5

GASKET, EX. PIPE This part replaces 18291-001-010.

18291-HB2-900

$3.72

5

GASKET, EX. PIPE This part replaces 18291-001-306.

18291-HB2-900

$3.72

6

GASKET, PROTECTOR

18292-167-890

$1.88

6

GASKET, PROTECTOR This part replaces 18292-329-000.

18292-167-890

$1.88

7

GASKET, PROTECTOR This part replaces 18292-KF9-900.

18292-MM9-740

$3.03

7

GASKET, PROTECTOR

18292-MM9-740

$3.03

7

GASKET, PROTECTOR This part replaces 18292-415-000.

18292-MM9-740

$3.03

8

GASKET A, MUFFLER This part replaces 18292-428-000.

18292-429-405

Unavailable

9

GASKET B, MUFFLER (NOT AVAILABLE)

18295-428-000

Unavailable

10

MUFFLER, ARRESTER (NOT AVAILABLE) This part replaces 18300-434-000.

18300-434-007

Unavailable

10

MUFFLER, ARRESTER (NOT AVAILABLE)

18300-434-007

Unavailable

11

PIPE, EX. (NOT AVAILABLE) This part replaces 18320-434-000.

18320-434-770

Unavailable

12

PROTECTOR, EX. PIPE (NOT AVAILABLE)

18325-434-000

Unavailable

13

PROTECTOR, MUFFLER

18345-428-000

Unavailable

14

BAND, MUFFLER (NOT AVAILABLE)

18371-434-000

Unavailable

15

GASKET A, MUFFLER

18391-MAM-000

$10.45

15

GASKET A, MUFFLER This part replaces 18391-MY4-003.

18391-MAM-000

$10.45

15

GASKET A, MUFFLER This part replaces 18391-434-000.

18391-MAM-000

$10.45

16

RECEIVER, CLUTCH CABLE (NOT AVAILABLE)

50355-428-000

Unavailable

17

SCREW-WASHER (6X10)

93891-06010-00

$1.49

18

SCREW-WASHER (6X12)

93891-06012-00

$1.49

19

NUT, FLANGE (6MM)

94050-06000

$1.49

20

NUT, FLANGE (8MM)

94050-08000

$1.49

21

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

21

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

22

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.78

22

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

23

BOLT, FLANGE (8X35)

95728-08035-00

Unavailable
