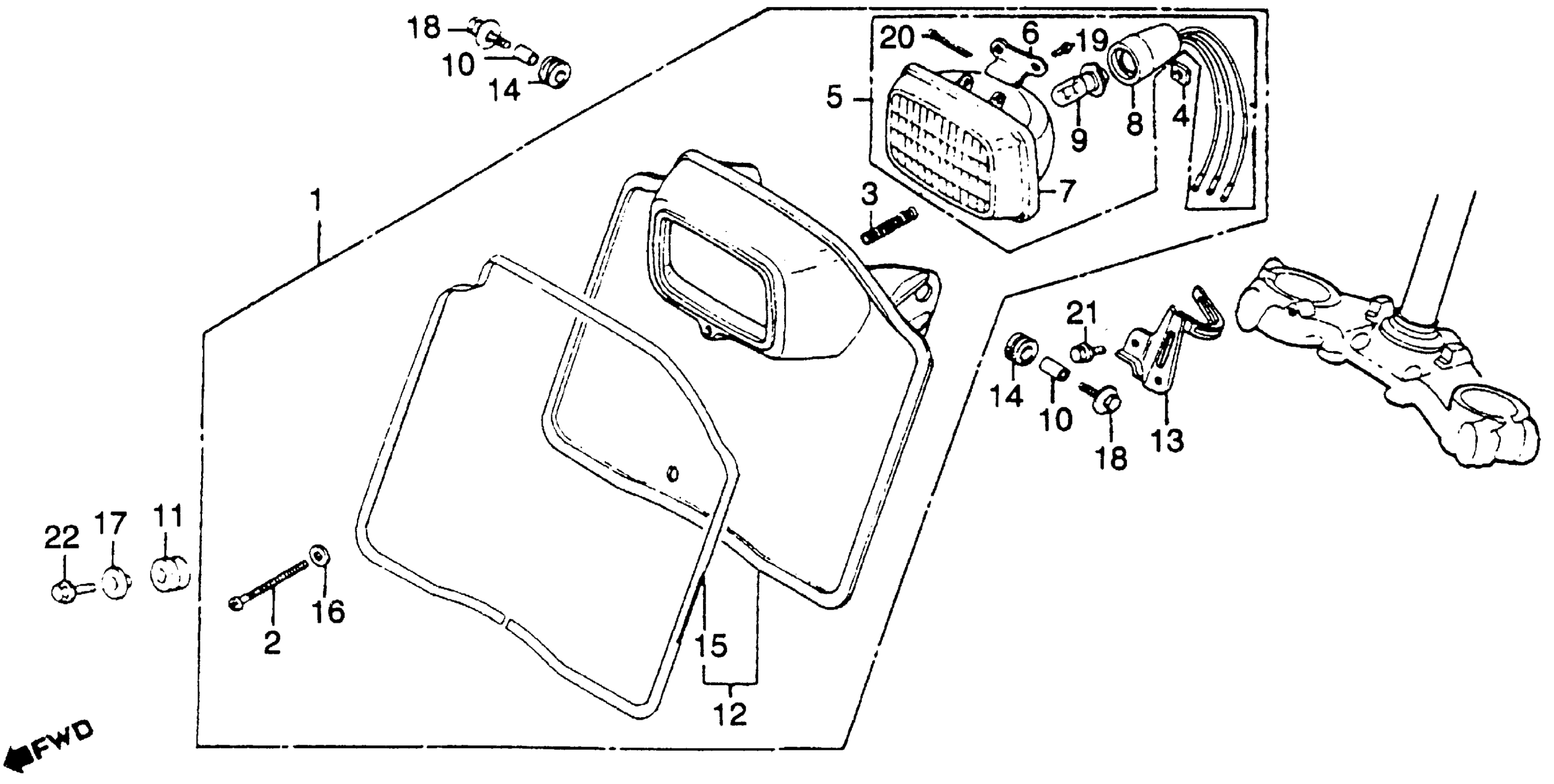

Honda XR250A (79) MOTORCYCLE, JPN, VIN# ME01-5000032 HEADLIGHT Diagram

HEADLIGHT ASSY. *R23/NH105* (TAHITIAN RED AND MATT BLACK) (NOT AVAILABLE)

33100-434-671ZA

Unavailable

SCREW, BEAM ADJUSTING (NOT AVAILABLE)

33103-434-670

Unavailable

SPRING, HEADLIGHT BEAM ADJUSTING

33107-246-003

$2.23

NUT, BEAM ADJ.

33117-041-003

$1.95

HEADLIGHT UNIT (NOT AVAILABLE) This part replaces 33120-434-671.

33120-434-672

Unavailable

HEADLIGHT UNIT (NOT AVAILABLE)

33120-434-672

Unavailable

STAY, HEADLIGHT (NOT AVAILABLE)

33122-434-671

Unavailable

LENS, HEADLIGHT (NOT AVAILABLE)

33125-434-671

Unavailable

SOCKET ASSY., HEADLIGHT (NOT AVAILABLE) This part replaces 33130-434-671.

33130-434-672

Unavailable

SOCKET ASSY., HEADLIGHT (NOT AVAILABLE)

33130-434-672

Unavailable

BULB, HEADLIGHT (6V25/25W) (STANLEY)

34901-030-003

$9.57

BULB, HEADLIGHT (6V25/25W) (STANLEY)

34901-087-640

$9.57

COLLAR, STARTER MAGNETIC SWITCH SETTING (NOT AVAILABLE)

35851-292-000

Unavailable

CASE, HEADLIGHT *R23/NH105* (TAHITIAN RED AND MATT BLACK) (NOT AVAILABLE) CASE, HEADLIGHT *R23/A01*

61300-434-000ZA

Unavailable

STAY, HEADLIGHT (LOWER) (NOT AVAILABLE)

61311-434-000

Unavailable

CUSHION A, RR. FENDER

80105-061-000

$4.01

STRIPE, HEADLIGHT CASE (NOT AVAILABLE)

87126-434-300

Unavailable

WASHER, BEAM ADJ.

90286-147-670

$2.39

WASHER (6X20) COLLAR, HEADLIGHT SETTING

90512-300-000

$3.08

BOLT-WASHER (6X20)

93404-06020-00

$1.55

BOLT-WASHER (6X20) This part replaces 93494-06020-00.

93404-06020-00

$1.55

SCREW, PAN (4X8)

93500-04008-0A

$1.49

PIN, COTTER (3.0X35) This part replaces 94201-03350.

94201-30350

$1.49

PIN, COTTER (3.0X35)

94201-30350

$1.49

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

BOLT, FLANGE (6X16) BOLT, FLANGE (6X22)

95701-06016-00

$1.55
