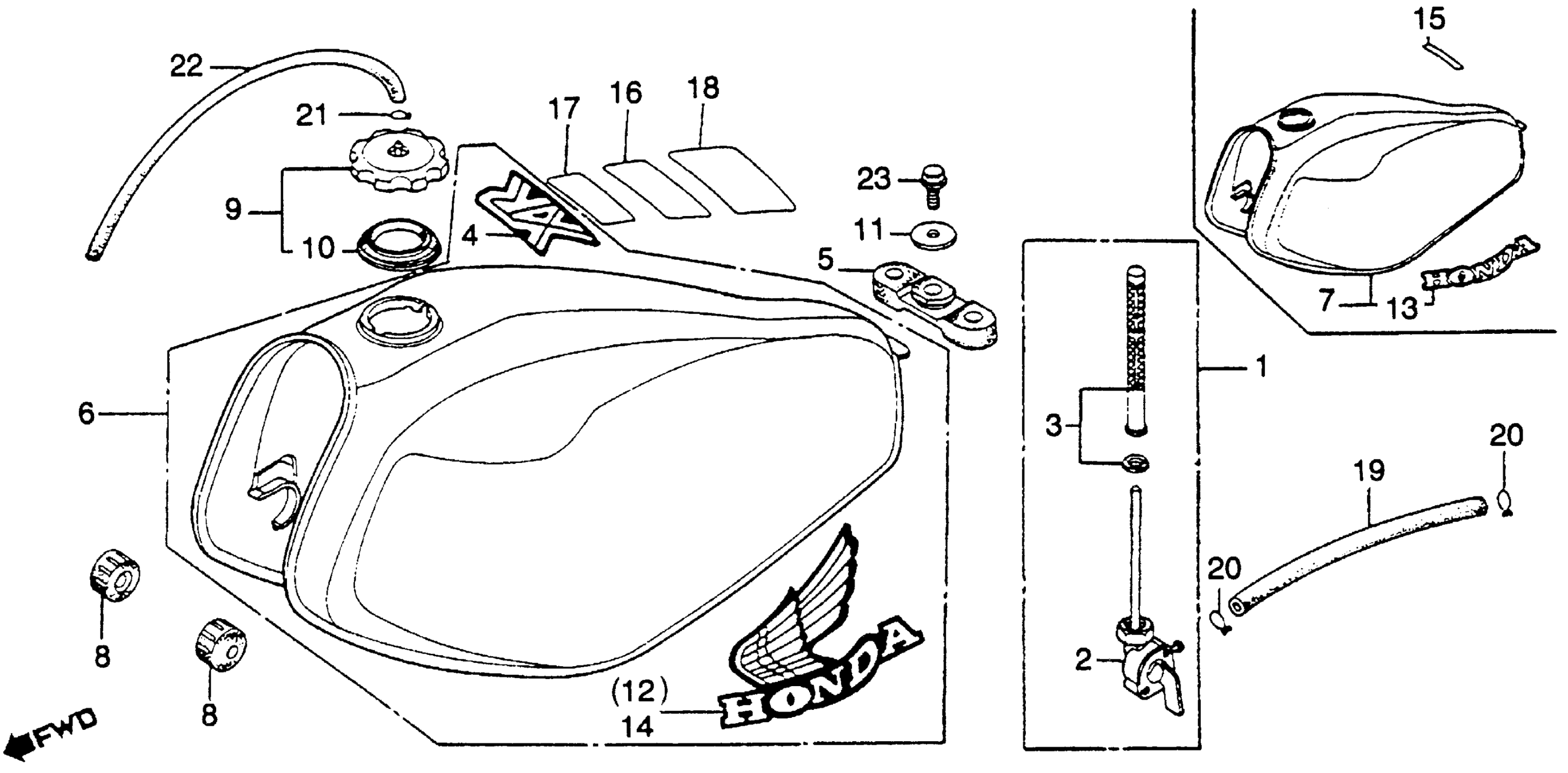

Honda XR250A (79) MOTORCYCLE, JPN, VIN# ME01-5000032 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY. (NOT AVAILABLE) This part replaces 16950-434-005.

16950-434-015

Unavailable

1

PETCOCK ASSY. (NOT AVAILABLE)

16950-434-015

Unavailable

2

BODY, PETCOCK (NOT AVAILABLE) This part replaces 16951-434-005.

16951-434-015

Unavailable

2

BODY, PETCOCK (NOT AVAILABLE)

16951-434-015

Unavailable

3

SCREEN SET, FUEL STRAINER (NOT AVAILABLE)

16952-434-005

Unavailable

5

RUBBER, RR. FUEL TANK MOUNT (NOT AVAILABLE) RUBBER, RR. FUEL TANK SETTING

17509-428-000

Unavailable

7

TANK SUB-ASSY., FUEL *R23/NH105* (TAHITIAN RED AND MATT BLACK) (NOT AVAILABLE)

17520-434-000ZA

Unavailable

8

RUBBER, FR. FUEL TANK

17611-KE8-000

$4.22

8

RUBBER, FR. FUEL TANK This part replaces 17611-286-000.

17611-KE8-000

$4.22

9

CAP, FUEL FILLER (NOT AVAILABLE)

17620-434-010

Unavailable

10

GASKET This part replaces 17631-VM6-300.

17631-899-010

$6.32

10

GASKET This part replaces 17631-434-310.

17631-899-010

$6.32

10

GASKET This part replaces 17631-899-000.

17631-899-010

$6.32

10

GASKET This part replaces 17631-958-680.

17631-899-010

$6.32

11

WASHER, FR. COVER SETTING WASHER, TANK SETTING

64347-001-000

$2.10

13

EMBLEM, FUEL TANK (A.M.) (NOT AVAILABLE)

87123-434-300

Unavailable

15

MARK B, CAUTION | Use up to Frame SN 5004071

87208-434-670

Unavailable

16

LABEL, USE CAUTION *NH1* (BLACK) (NOT AVAILABLE) This part replaces 87504-130-720ZB.

87504-130-720ZA

Unavailable

17

LABEL, OPERATOR WARNING *NH0* (CHAMPIONSHIP WHITE)

87510-147-670ZB

Unavailable

18

MARK, DRIVE CAUTION (TYPEW) This part replaces 87560-375-680A.

87560-375-680ZF

$4.04

18

MARK, DRIVE CAUTION (TYPEW) This part replaces 87560-375-680ZA.

87560-375-680ZF

$4.04

18

MARK, DRIVE CAUTION (TYPEW)

87560-375-680ZF

$4.04

19

BULK HOSE, FUEL (5.5X3000) (5.5X180) TUBE, FUEL (5.3X220)

95001-55003-60M

$47.32

20

CLIP, TUBE (B10)

95002-02100

$1.90

22

BULK HOSE, VACUUM (5X3000) (5X350)

95005-50003-30M

$20.85

23

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

23

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
