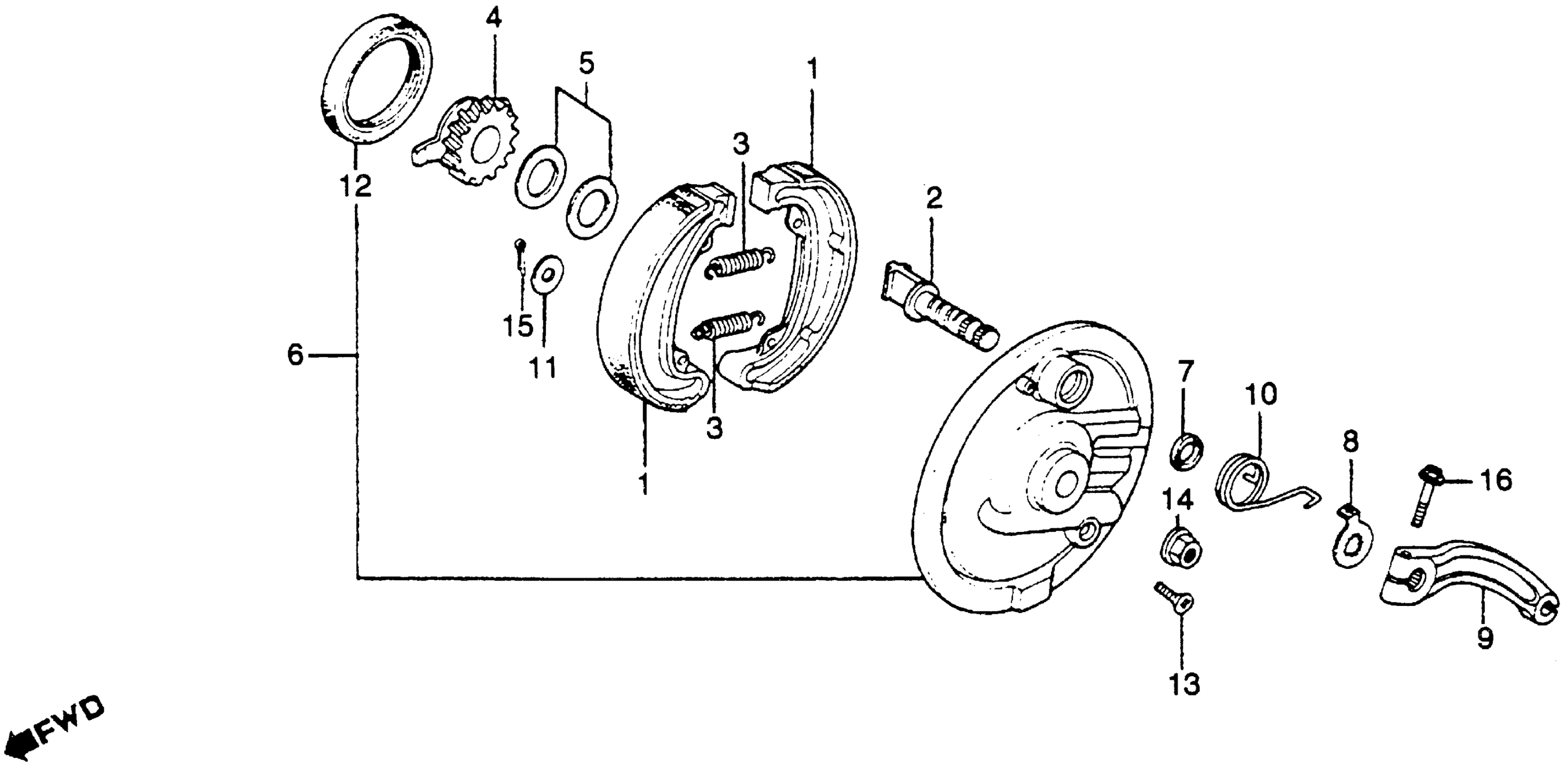

Honda XR250A (79) MOTORCYCLE, JPN, VIN# ME01-5000032 FRONT BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (ASK) This part replaces 06450-KBG-000.

06450-KC2-680

$42.29

NI

SHOE SET, BRAKE (ASK)

06450-KC2-680

$42.29

NI

SHOE SET, BRAKE (ASK) This part replaces 06450-KC2-681.

06450-KC2-680

$42.29

NI

SHOE SET, BRAKE (ASK) This part replaces 431A2-329-670.

06450-KC2-680

$42.29

1

SHOE SET, BRAKE (ASK)

06450-KC2-680

$42.29

1

SHOE SET, BRAKE (ASK) This part replaces 43120-329-670.

06450-KC2-680

$42.29

2

CAM, RR. BRAKE | Use from Frame SN 5004842

43141-ME4-000

Unavailable

2

CAM, RR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 5004841

43141-399-000

Unavailable

2

CAM, RR. BRAKE | Use from Frame SN 5004842 This part replaces 43141-399-010.

43141-ME4-000

Unavailable

3

SPRING, BRAKE SHOE

43151-329-000

$2.75

4

GEAR, SPEEDOMETER (NOT AVAILABLE)

44804-428-000

Unavailable

5

WASHER, SPEEDOMETER GEAR

44809-402-000

$2.34

6

SUB-PANEL, FR. BRAKE (NOT AVAILABLE)

45010-428-000

Unavailable

7

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

8

INDICATOR, FR. BRAKE (NOT AVAILABLE)

45145-428-000

Unavailable

9

ARM, FR. BRAKE (NOT AVAILABLE)

45410-434-000

Unavailable

10

SPRING, BRAKE ARM RETURN

45435-428-000

Unavailable

11

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

12

OIL SEAL (47X60X7)

91251-GK4-003

$9.19

12

OIL SEAL (47X60X7) (ARAI) This part replaces 91251-121-000.

91251-GK4-003

$9.19

13

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

14

NUT, FLANGE (12MM)

94050-12000

$1.49

15

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

15

PIN, SPLIT (2.0X22)

94201-20220

$1.49

15

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

15

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

15

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

15

PIN, COTTER (2.0X35)

94201-20350

$1.49

15

PIN, COTTER (2.0X22)

94201-29220

$1.49

16

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

16

BOLT, FLANGE (6X28)

95701-06028-00

$1.73
