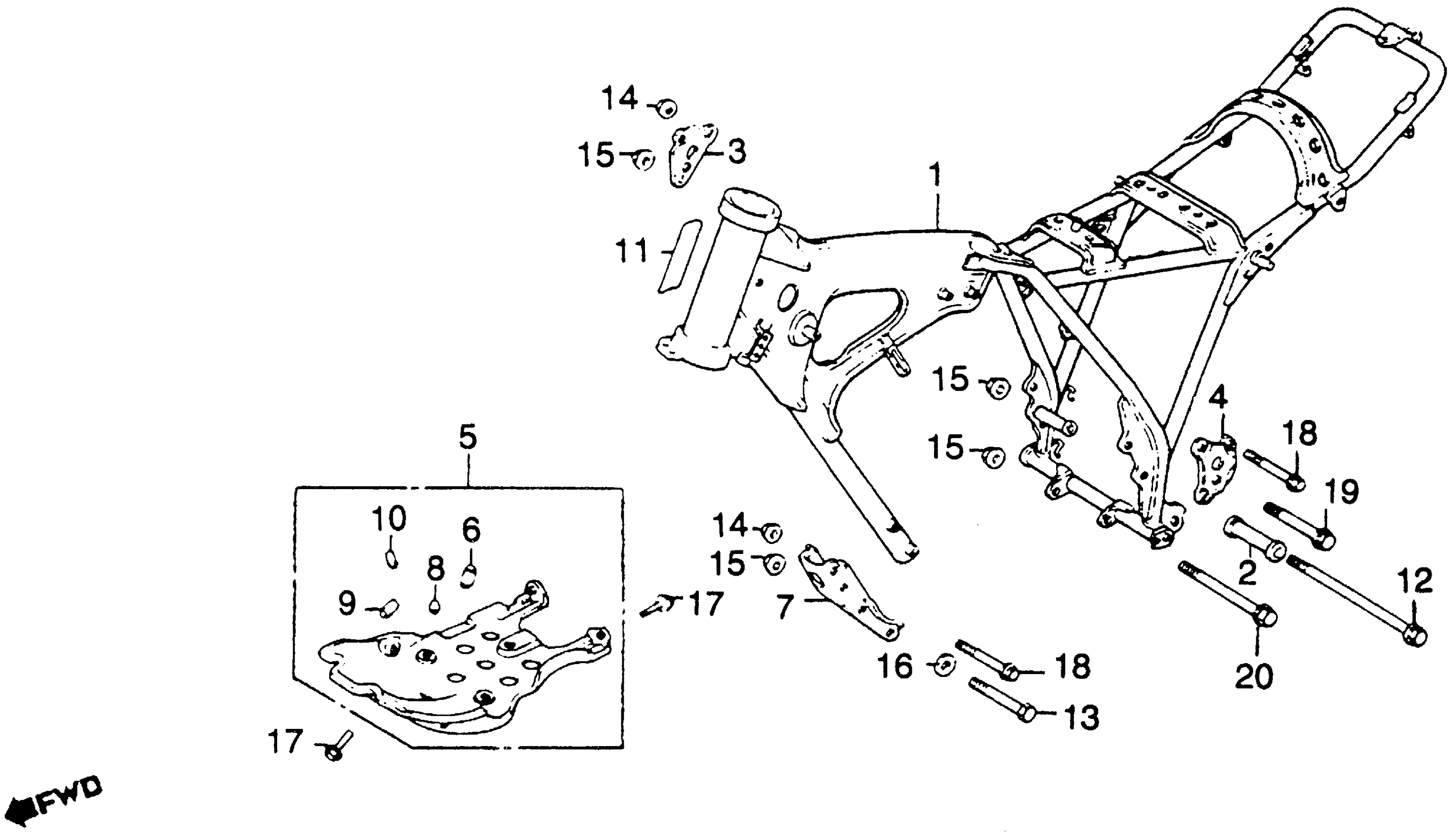

Honda XR250A (79) MOTORCYCLE, JPN, VIN# ME01-5000032 FRAME Diagram

FRAME *NH1* (BLACK)

50100-434-010ZA

Unavailable

COLLAR, ENGINE HANGER (NOT AVAILABLE)

50130-428-000

Unavailable

PLATE, R. ENGINE HANGER (UPPER) *NH1* (BLACK) (NOT AVAILABLE)

50138-428-000ZA

Unavailable

PLATE, L. ENGINE HANGER (UPPER) *NH1* (BLACK) (NOT AVAILABLE)

50139-428-000ZA

Unavailable

PLATE, SKID (NOT AVAILABLE) This part replaces 50351-429-000.

50351-429-770

Unavailable

PLATE, SKID (NOT AVAILABLE)

50351-429-770

Unavailable

PLATE, SKID (NOT AVAILABLE) This part replaces 50351-434-000.

50351-429-770

Unavailable

RUBBER A, STOPPER

50352-434-000

$5.55

HANGER, FR. ENGINE *NH1* (BLACK) (NOT AVAILABLE)

50353-434-000ZA

Unavailable

RUBBER B, STOPPER

50354-428-000

$2.75

RUBBER B, STOPPER

50354-434-000

$5.34

RUBBER C, STOPPER

50355-434-000

$4.45

LABEL, CAUTION *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)

87560-373-780ZA

Unavailable

BOLT, FLANGE (10X238) (NOT AVAILABLE)

90104-428-000

Unavailable

BOLT, HEX. (10X60) This part replaces 92200-10060-0A.

92201-10060-0A

$3.02

BOLT, HEX. (10X60)

92201-10060-0A

$3.02

NUT, FLANGE (8MM)

94050-08000

$1.49

NUT, FLANGE (10MM)

94050-10000

$1.59

WASHER, PLAIN (10MM)

94101-10000

$1.49

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (8X60) This part replaces 95800-08060-00.

95801-08060-00

$2.48

BOLT, FLANGE (10X70) This part replaces 95800-10070-00.

95801-10070-00

$1.80

BOLT, FLANGE (10X70)

95801-10070-00

$1.80

BOLT, FLANGE (10X125) This part replaces 95800-10125-00.

95801-10125-00

Unavailable

BOLT, FLANGE (10X125)

95801-10125-00

Unavailable
