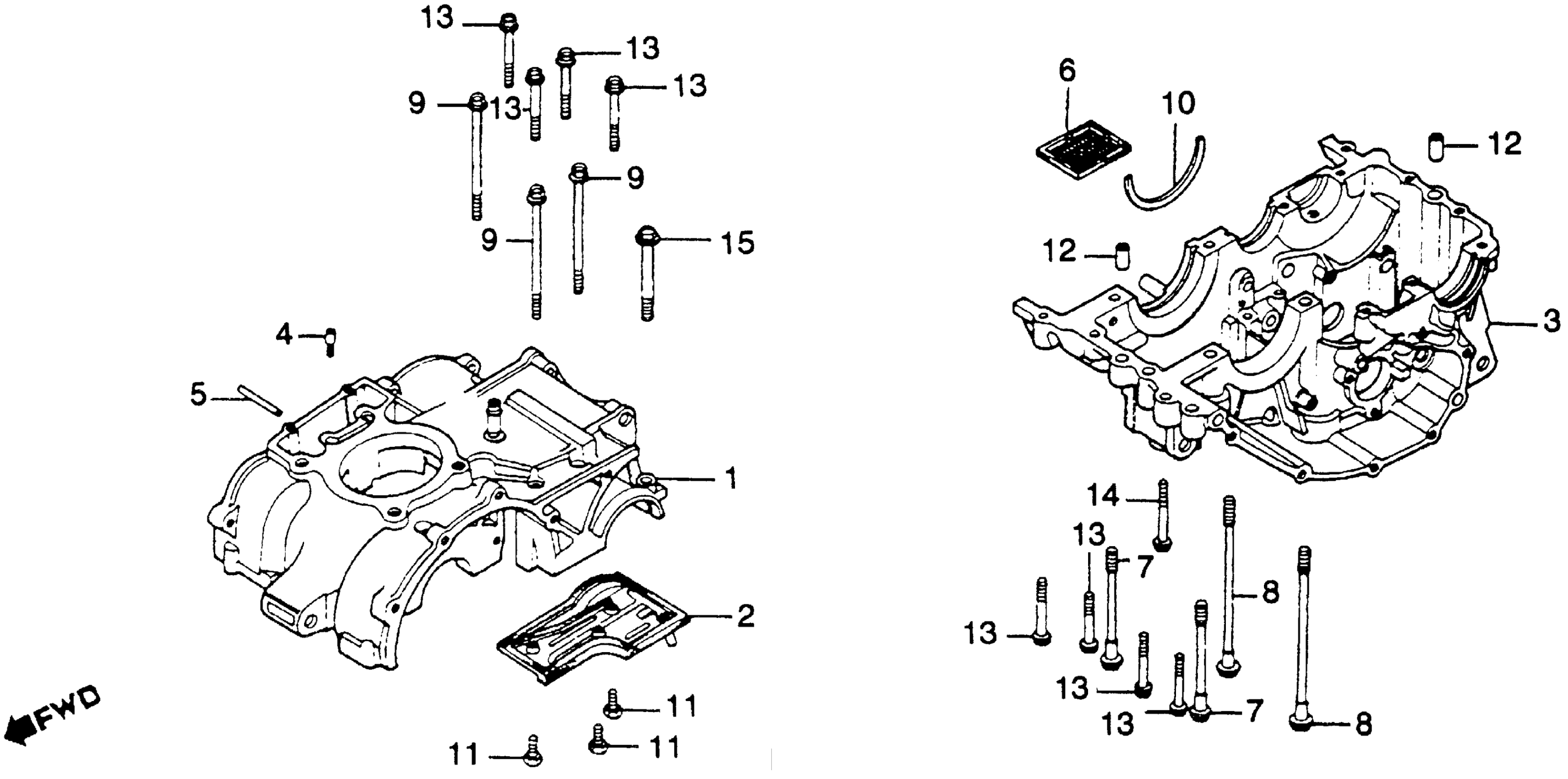

Honda XR250A (79) MOTORCYCLE, JPN, VIN# ME01-5000032 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE (UPPER) (NOT AVAILABLE)
11100-428-040
Unavailable
2
PLATE, BREATHER (NOT AVAILABLE) | Use up to Engine SN 5007478
11110-428-000
Unavailable
2
PLATE, BREATHER (NOT AVAILABLE) | Use from Engine SN 5007479
11110-429-000
Unavailable
3
CRANKCASE (LOWER) (NOT AVAILABLE)
11200-428-030
Unavailable
4
ORIFICE, OIL (NOT AVAILABLE)
11333-376-000
Unavailable
5
PIPE, OIL PASSAGE (NOT AVAILABLE)
11335-428-000
Unavailable
7
BOLT, FLANGE (8X70)
90025-PC9-910
Unavailable
7
BOLT, FLANGE (8X70) This part replaces 90044-428-000.
90025-PC9-910
Unavailable
8
BOLT, UBS (8X114) (NOT AVAILABLE)
90045-329-000
Unavailable
9
BOLT, FLANGE (6X75)
90051-393-000
Unavailable
10
SET-RING (72MM) (NOT AVAILABLE)
90601-428-000
Unavailable
