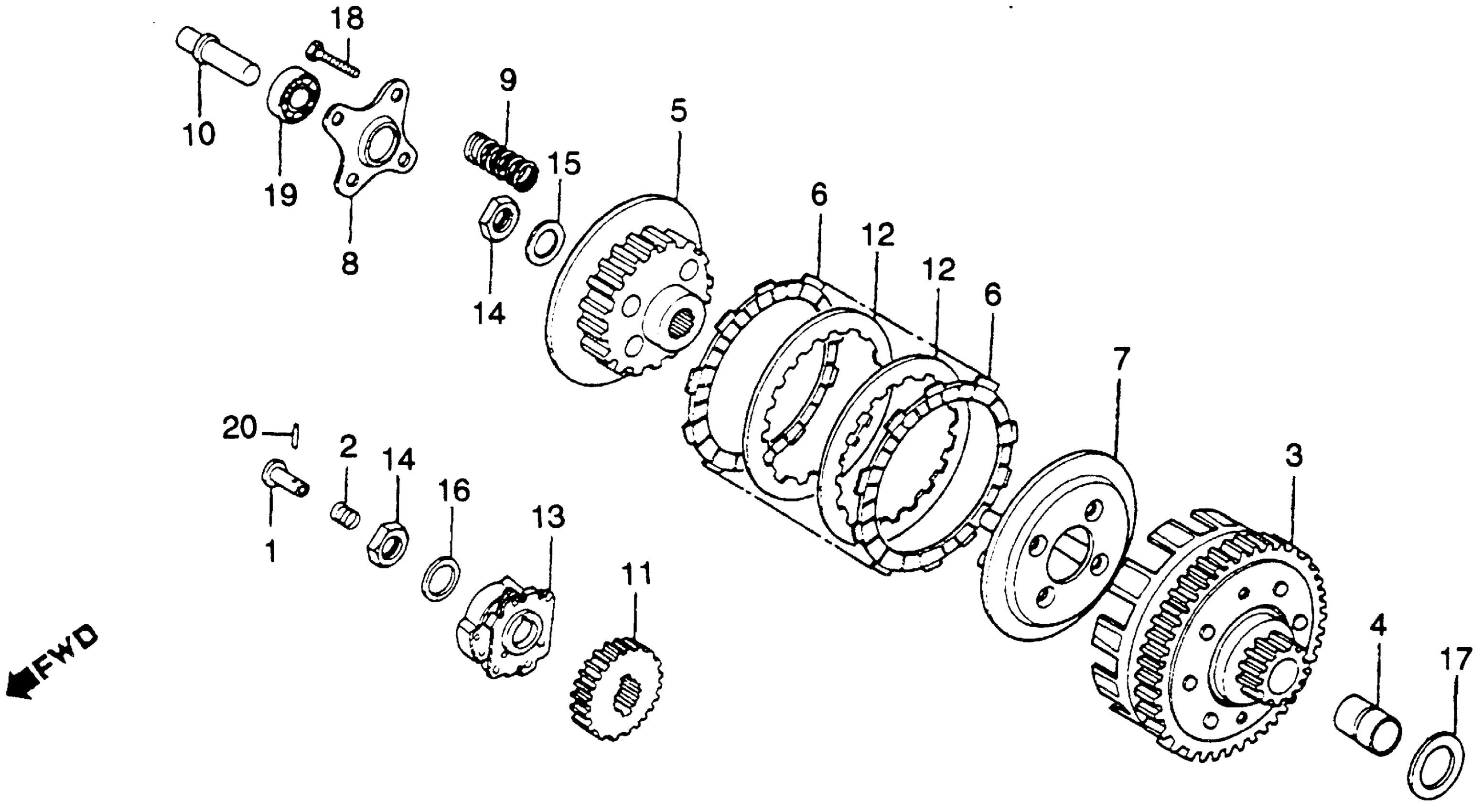

Honda XR250A (79) MOTORCYCLE, JPN, VIN# ME01-5000032 CLUTCH + ADVANCER Diagram

THROUGH, OIL (NOT AVAILABLE)

15445-428-000

Unavailable

SPRING, OIL THROUGH

15447-149-000

$2.92

CLUTCH (OUTER) (69T 17T) (NOT AVAILABLE)

22100-428-000

Unavailable

GUIDE, CLUTCH (OUTER) (NOT AVAILABLE)

22116-428-000

Unavailable

CENTER, CLUTCH (NOT AVAILABLE)

22120-428-000

Unavailable

DISK, CLUTCH FRICTION

22201-ML4-610

$16.40

DISK, CLUTCH FRICTION This part replaces 22201-377-000.

22201-ML4-610

$16.40

PLATE, CLUTCH PRESSURE (NOT AVAILABLE)

22350-428-000

Unavailable

PLATE, CLUTCH LIFTER (NOT AVAILABLE)

22361-428-000

Unavailable

SPRING, CLUTCH

22401-428-000

Unavailable

ROD, LIFTER (NOT AVAILABLE)

22847-428-000

Unavailable

GEAR, PRIMARY DRIVE (NOT AVAILABLE)

23121-434-000

Unavailable

PLATE A, CLUTCH

23311-200-000

$12.22

ADVANCER ASSY. A, SPARK (NOT AVAILABLE) | Use up to Engine SN 5008398 This part replaces 30222-428-305.

30222-428-315

Unavailable

ADVANCER ASSY. B, SPARK (NOT AVAILABLE) | Use up to Engine SN 5008398

30223-428-305

Unavailable

ADVANCER ASSY. B, SPARK (NOT AVAILABLE) | Use from Engine SN 5008399

30223-428-315

Unavailable

ADVANCER ASSY. C, SPARK (NOT AVAILABLE) ADVANCER ASSY. B, SPARK | Use up to Engine SN 5008398 This part replaces 30224-428-305.

30224-428-315

Unavailable

ADVANCER ASSY. A, SPARK (NOT AVAILABLE)

30222-428-315

Unavailable

ADVANCER ASSY. C, SPARK (NOT AVAILABLE)

30224-428-315

Unavailable

NUT, LOCK (18MM)

90235-428-000

Unavailable

WASHER, LOCK

90432-428-000

$7.57

WASHER (18MM)

90451-357-000

Unavailable

WASHER, THRUST (22.5MM) (NOT AVAILABLE) This part replaces 90453-704-000.

90453-426-000

Unavailable

BOLT, HEX. (6X25) This part replaces 92025-06025.

92025-06025-0A

$1.49

BOLT, HEX. (6X25)

92025-06025-0A

$1.49

BEARING, RADIAL BALL (6001) This part replaces 96100-60010.

96100-60010-00

$17.13

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13

ROLLER (2X13.8)

96220-20138

$1.49
