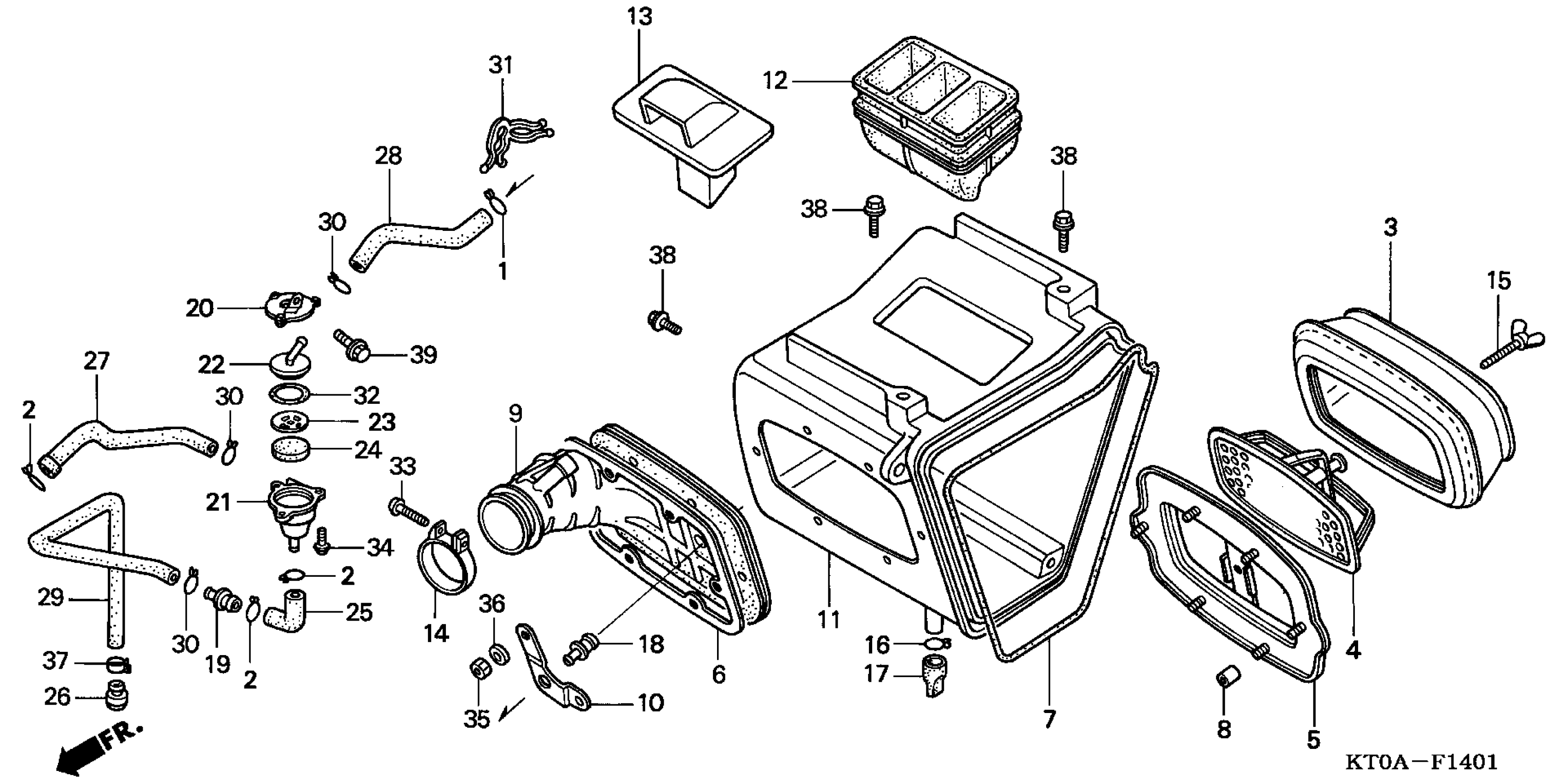

Honda XR200RAC (02) MOTORCYCLE, JPN, VIN# JH2ME051-2K400001 AIR CLEANER (2) Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15707-634-000

$4.90

2

CLIP, OIL DRAIN TUBE

15771-KV6-000

$3.56

3

ELEMENT, AIR CLEANER

17213-KK0-000

$22.80

4

HOLDER, ELEMENT

17214-KK0-030

Unavailable

5

PLATE, ELEMENT SETTING

17216-KK0-000

Unavailable

6

PLATE, HOLDER

17217-KK0-000

$21.50

7

SEAL, AIR CLEANER COVER This part replaces 17219-KK0-000.

17222-MN4-405

$6.97

7

SEAL, AIR CLEANER COVER

17222-MN4-405

$6.97

8

COLLAR, CONNECTING TUBE SETTING

17221-KA4-300

$2.24

9

TUBE, AIR CLEANER CONNECTING

17222-KT0-L00

Unavailable

10

STAY, JOINT HOLDER

17227-KV6-000

Unavailable

11

HOUSING, AIR CLEANER

17230-KK0-000

Unavailable

12

DUCT, AIR CLEANER IN.

17240-KK0-000

Unavailable

13

CAP, IN. DUCT

17241-KT0-770

Unavailable

14

BAND, AIR CLEANER CONNECTING TUBE (46) This part replaces 17255-KF9-900.

95018-46250

$7.30

14

BAND, AIR CLEANER CONNECTING TUBE (46) This part replaces 90652-GHB-660.

95018-46250

$7.30

14

BAND, AIR CLEANER CONNECTING TUBE (46)

95018-46250

$7.30

15

BOLT, ELEMENT SETTING

17291-KT0-674

Unavailable

16

CLIP, BREATHER TUBE

17316-611-000

$8.49

17

TUBE, DRAIN

17359-KK0-000

$6.74

18

JOINT, BREATHER TUBE

17359-KT0-L00

Unavailable

19

JOINT, BREATHER TUBE

17359-428-000

$5.21

20

STAY, BREATHER

17361-KN4-L10

Unavailable

21

BODY, BREATHER SEPARATOR

17361-419-670

Unavailable

22

CAP, BREATHER SEPARATOR

17362-419-670

Unavailable

23

HOLDER, ELEMENT

17363-419-670

Unavailable

24

ELEMENT, CONDENSATION

17364-419-000

Unavailable

25

TUBE A, DRAIN

17366-KG0-000

Unavailable

26

PLUG, BREATHER TUBE

17370-419-700

$3.58

27

TUBE A, BREATHER

17371-KT0-L00

$5.50

28

TUBE B, BREATHER

17372-KT0-L00

Unavailable

29

TUBE, BREATHER DRAIN

17373-KT0-L00

Unavailable

30

CLIP, TUBE (B12.5)

90651-MK3-780

$1.43

31

CLIP, THROTTLE WIRE (NOT AVAILABLE)

90655-689-671

Unavailable

32

O-RING (47X1.9)

91305-419-670

Unavailable

33

SCREW, PAN (4X25)

93500-04025-0G

$0.60

34

SCREW-WASHER (4X16)

93891-04016-07

$0.78

35

NUT, HEX. (5MM)

94002-05070-0S

$0.56

36

WASHER, PLAIN (5MM)

94101-05700

$0.91

37

CLAMP, TUBE (D12.5)

95002-41250-04

$2.34

38

BOLT, FLANGE (6X10)

96300-06010-00

$0.87

39

BOLT, FLANGE (6X12)

96300-06012-00

$0.87
