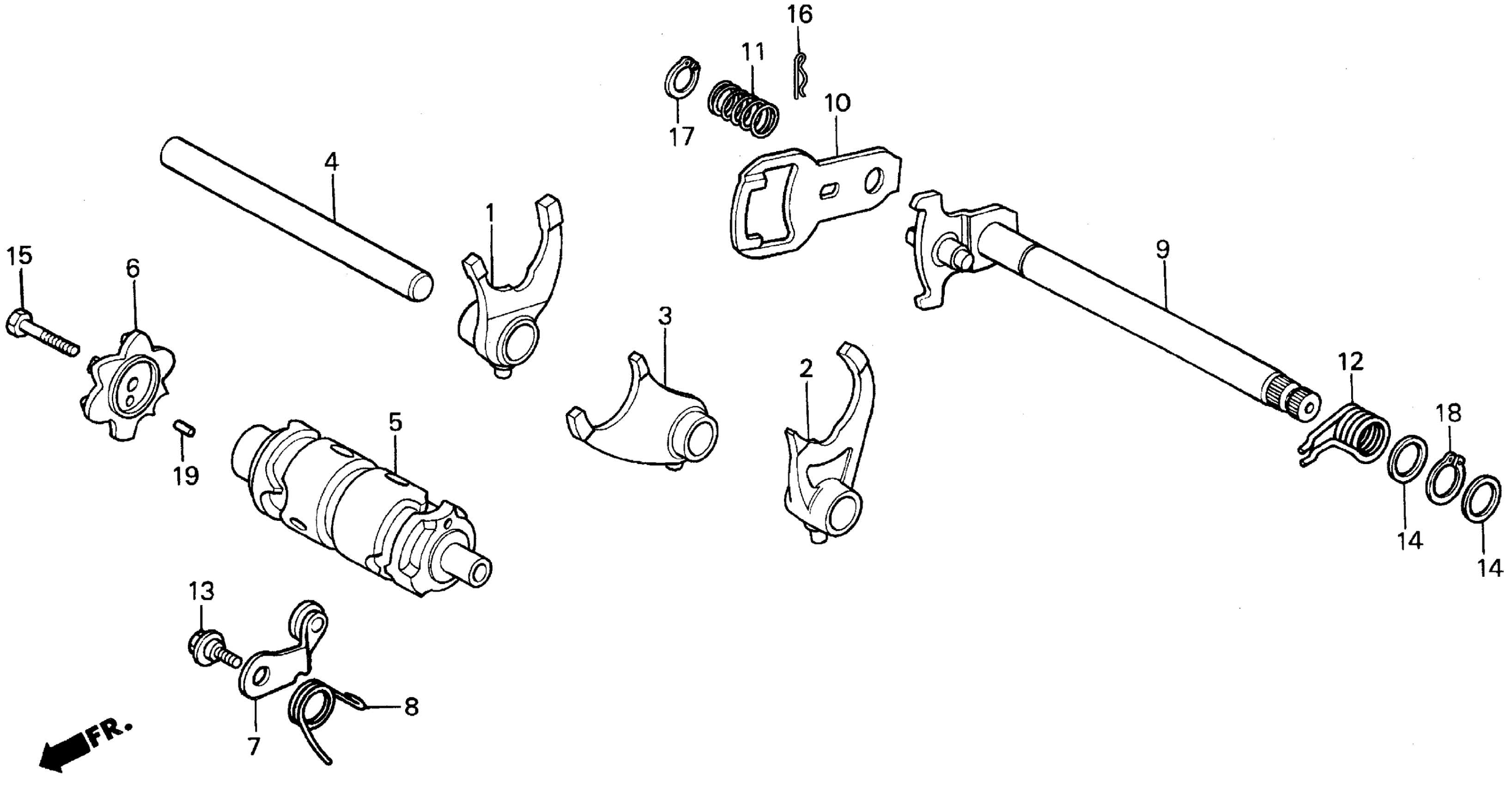

Honda XR200RA (97) MOTORCYCLE, JPN, VIN# JH2ME050-VK100001 SHIFT DRUM Diagram

FORK, R. GEARSHIFT

24211-446-650

Unavailable

FORK, L. GEARSHIFT

24221-446-650

Unavailable

FORK, CENTER GEARSHIFT

24231-446-650

Unavailable

SHAFT, GEARSHIFT FORK GUIDE

24241-KCS-650

Unavailable

DRUM, GEARSHIFT

24301-446-650

Unavailable

CAM, GEARSHIFT

24411-446-650

$46.35

STOPPER, GEARSHIFT DRUM

24430-437-000

$17.25

SPRING, SHIFT DRUM STOPPER

24435-437-000

Unavailable

SPINDLE, GEARSHIFT

24610-KT0-000

$57.09

PLATE, GEARSHIFT

24621-446-650

$13.10

SPRING, GEARSHIFT PLATE

24631-107-000

$2.92

SPRING, GEARSHIFT RETURN

24651-437-000

$8.55

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

WASHER, THRUST (14MM)

90451-001-000

$3.67

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

PIN, LOCK (10MM)

94251-10000

$1.49

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

CIRCLIP, OUTER (14MM)

94510-14000

$1.49

ROLLER (4X10)

96220-40100

$1.49
