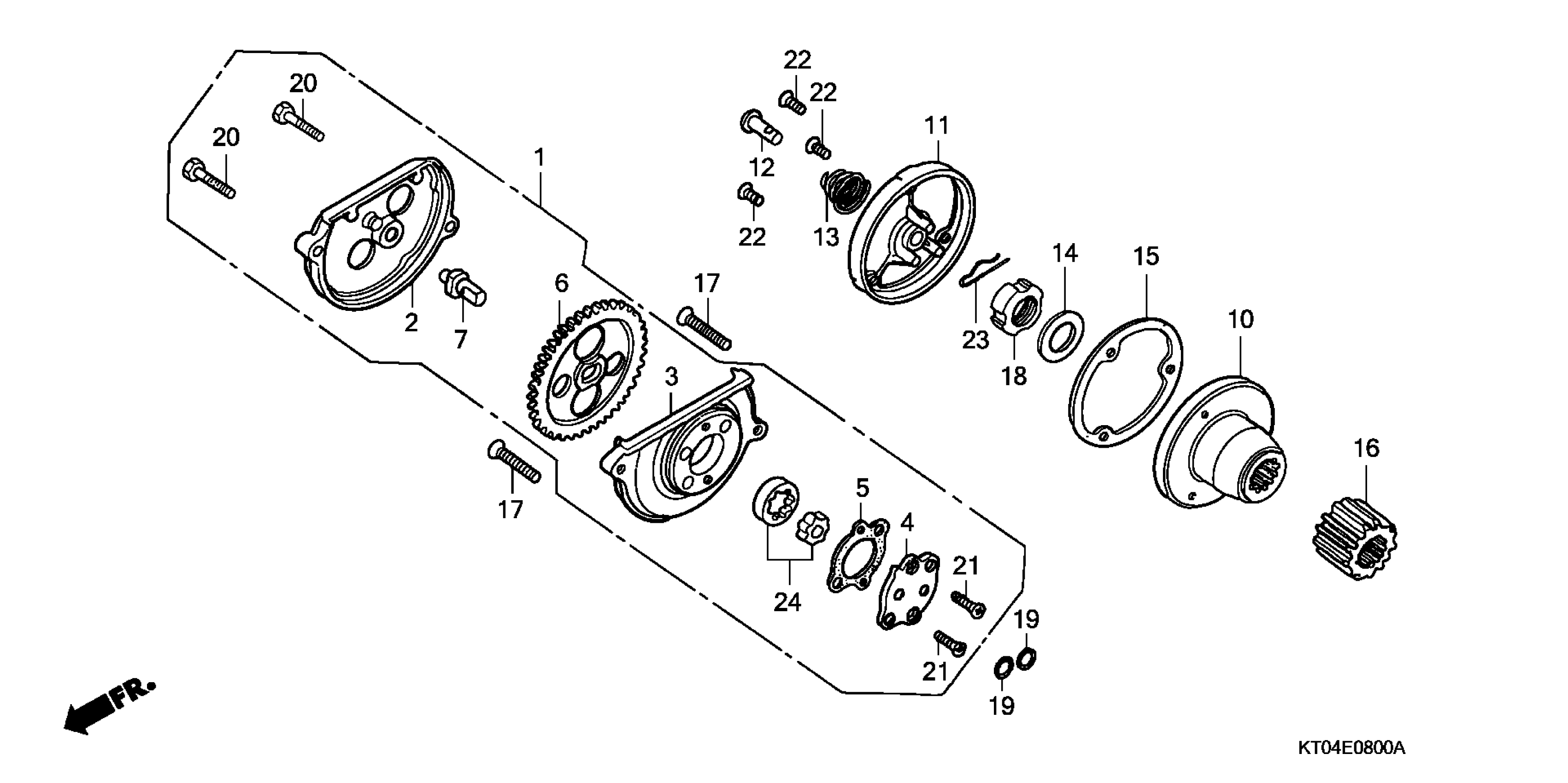

Honda XR200RA (97) MOTORCYCLE, JPN, VIN# JH2ME050-VK100001 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL

15100-KB5-721

$192.13

6

GEAR, OIL PUMP DRIVE (37T) (TO BE USED ONLY WITH OIL PUMP ASSY. P/N 15100-KB5-721.

15131-KEH-900

Unavailable

8

ROTOR, OIL PUMP (INNER) (YAMADA) (TO BE USED ONLY WITH OIL PUMP ASSY. P/N 15100-KB5-721.

15331-399-000

Unavailable

9

ROTOR, OIL PUMP (OUTER) (YAMADA) (TO BE USED ONLY WITH OIL PUMP ASSY. P/N 15100-KB5-721.

15332-399-000

Unavailable

10

ROTOR, OIL FILTER

15430-440-030

$64.57

11

CAP, OIL FILTER ROTOR

15436-107-000

$39.51

12

THROUGH, OIL

15441-KCS-650

$6.77

13

SPRING, OIL THROUGH

15446-107-000

$4.11

14

WASHER, OIL FILTER ROTOR LOCKING

15451-107-000

$4.03

15

GSKT, OIL FILTER CAP This part replaces 15459-KT0-710.

15459-K70-630

$3.56

15

GSKT, OIL FILTER CAP This part replaces 15459-KWK-900.

15459-K70-630

$3.56

16

GEAR, PRIMARY DRIVE (21T)

23121-437-010

$60.97

17

SCREW, FLAT (6X30)

90101-440-000

$2.51

18

NUT, LOCK (16MM)

90231-KCS-651

$4.21

19

O-RING (9.4X2.4)

91304-KK3-830

$2.31

20

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

21

SCREW, FLAT (4X12)

93600-04012-1A

$1.49

22

SCREW, OVAL (5X12)

93700-05012-0A

$1.49

23

PIN, LOCK (8MM)

94251-08000

$1.49

24

ROTOR SET, OIL PUMP

15021-399-000

$46.31
