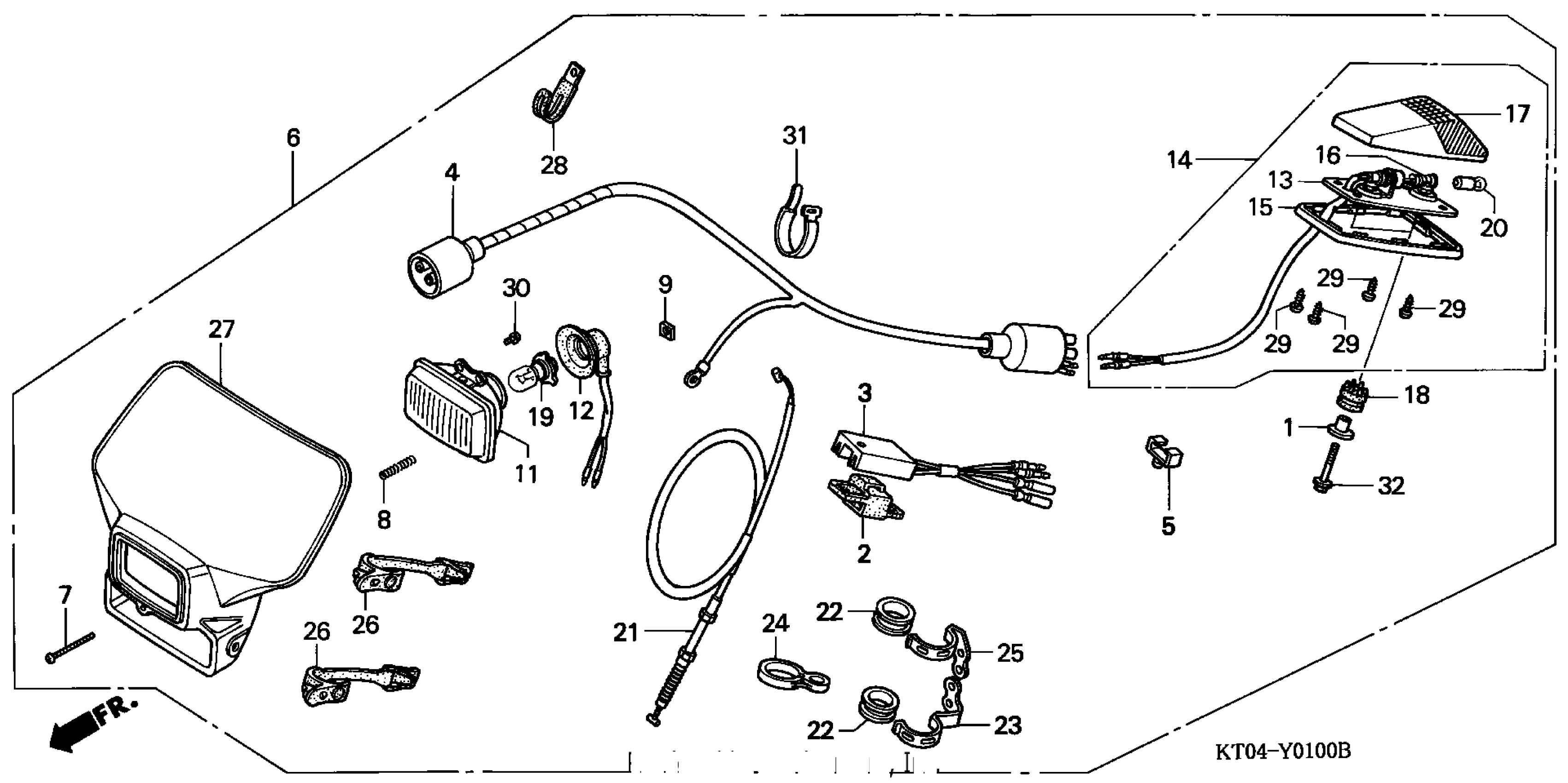

Honda XR200RA (97) MOTORCYCLE, JPN, VIN# JH2ME050-VK100001 LIGHTING SET Diagram

#

Description
Price

1

COLLAR, AIR CLEANER

17246-439-000

$6.60

2

RUBBER, A.C. REGULATOR

31401-KT0-670

Unavailable

3

REGULATOR, A.C.

31410-KT0-840

Unavailable

4

WIRE HARNESS

32100-KT0-810

Unavailable

5

GROMMET, WIRE

32985-300-000

$3.35

6

LIGHTING SET *NH138* (SHASTA WHITE) (NOT AVAILABLE)

33000-KT0-690ZA

Unavailable

7

SCREW, BEAM ADJUSTING

33103-KF0-670

$4.24

8

SPRING, HEADLIGHT BEAM ADJUSTING

33107-246-003

$2.23

9

NUT, BEAM ADJUSTING (STANLEY)

33117-KA2-003

$1.94

11

HEADLIGHT (STANLEY) (NOT AVAILABLE)

33123-KR9-003

Unavailable

12

SOCKET ASSY., HEADLIGHT

33130-MN1-671

Unavailable

13

BASE, TAILLIGHT

33142-KT0-670

Unavailable

14

TAILLIGHT UNIT

33701-KT0-670

Unavailable

15

BODY, TAILLIGHT

33702-KF0-003

$22.13

16

SOCKET, TAILLIGHT

33703-KT0-670

Unavailable

17

LENS, TAILLIGHT

33704-KF0-003

Unavailable

18

RUBBER, TAILLIGHT SETTING

33716-KT0-670

Unavailable

19

BULB, HEADLIGHT (12V 35W) (STANLEY)

34901-MN1-671

$6.61

20

BULB, DASH (12V 3.4W) (STANLEY)

34902-259-000

$2.18

21

CABLE, FR. BRAKE

45450-KK0-000

Unavailable

22

INNER, CABLE GUIDE

45466-KA4-000

$6.51

23

GUIDE, BRAKE CABLE (LOWER) (NOT AVAILABLE)

45468-KK0-000

Unavailable

24

GUIDE, SPEEDOMETER CABLE

45468-KT0-680

Unavailable

25

GUIDE, BRAKE HOSE TOP

45469-KT1-670

Unavailable

26

BAND, HEADLIGHT CASE

61309-KK0-000

Unavailable

27

CASE SET, HEADLIGHT *NH138* (WL) (SHASTA WHITE)

87126-MN1-870ZA

Unavailable

28

CLIP, WIRE

91405-671-000

$9.00

29

SCREW, TAPPING (3X10)

93901-22210

$1.49

30

SCREW, TAPPING (4X10)

93901-34210

$1.49

31

BAND A3, WIRE

95014-61300

$1.97

32

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
