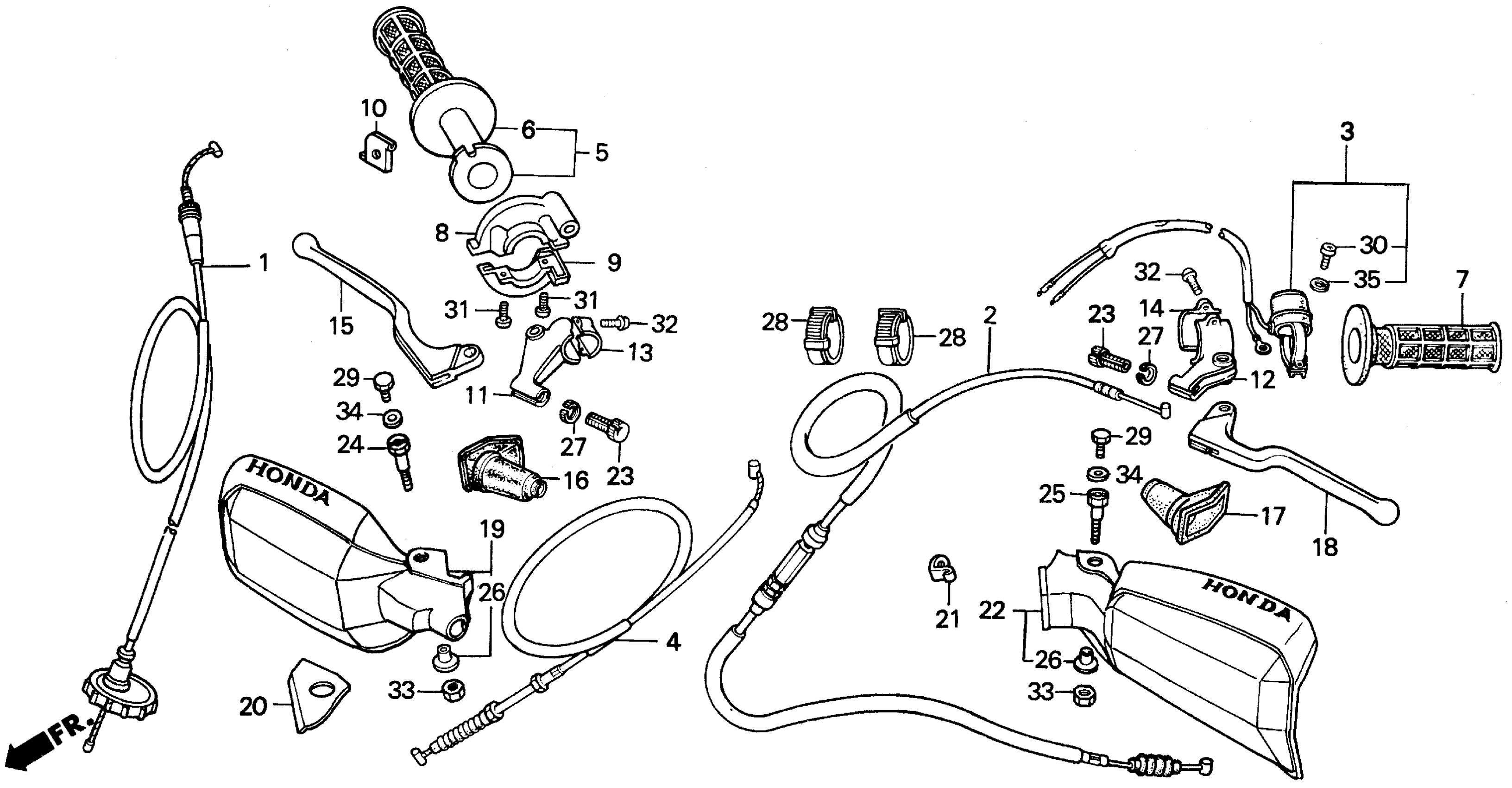

Honda XR200RA (95) MOTORCYCLE, JPN, VIN# JH2ME050-SK900001 TO JH2ME050-SK902529 HANDLE SWITCH + CABLES Diagram

#

Description
Price

1

CABLE SET, THROTTLE

17920-KT0-305

Unavailable

2

CABLE, CLUTCH

22870-KT0-670

$33.55

3

SWITCH ASSY., STOP

35130-KT0-830

Unavailable

4

CABLE, FR. BRAKE

45450-KT0-830

Unavailable

5

GRIP ASSY., THROTTLE

53140-KT0-830

Unavailable

6

GRIP, R. HANDLE This part replaces 53165-430-000.

53165-GFW-305

$12.63

7

GRIP, L. HANDLEBAR This part replaces 53166-430-000.

53166-459-910

$9.44

8

HOUSING, THROTTLE (UPPER) This part replaces 53167-KA2-000.

53167-KA2-010

$20.89

8

HOUSING, THROTTLE (UPPER)

53167-KA2-010

$20.89

9

HOUSING, THROTTLE (LOWER) This part replaces 53168-KA2-000.

53168-KA2-010

$19.52

9

HOUSING, THROTTLE (LOWER)

53168-KA2-010

$19.52

10

SLIDER, THROTTLE

53169-HB7-010

$12.88

11

BRACKET, R. HANDLEBAR (NOT AVAILABLE)

53171-KA3-710

Unavailable

12

BRACKET, L. HANDLEBAR

53172-429-770

$33.14

13

HOLDER, LEVER BRACKET (NOT AVAILABLE)

53173-KA3-710

Unavailable

14

HOLDER, LEVER BRACKET

53173-376-000

$10.95

15

LEVER, R. HANDLEBAR

53175-KF0-000

Unavailable

16

COVER, R. HANDLEBAR

53176-KK0-000

Unavailable

17

COVER, L. HANDLE LEVER

53177-KN5-670

$9.41

18

LEVER, L. HANDLEBAR

53178-KF0-000

$38.96

19

GUARD, R. KNUCKLE *NH138* (SHASTA WHITE) (NOT AVAILABLE)

53180-KK0-000ZB

Unavailable

20

PLATE, GUARD SETTING *NH138* (SHASTA WHITE)

53181-KK0-000ZB

Unavailable

21

PLATE, GUARD SETTING

53181-KN5-670

$6.58

22

GUARD, L. KNUCKLE *NH138* (SHASTA WHITE)

53185-KN5-670ZB

$36.03

23

BOLT, WIRE ADJUSTING

53192-KA4-710

$10.51

24

BOLT, HANDLEBAR PIVOT

90114-KF0-770

Unavailable

25

BOLT, LEVER PIVOT

90114-KN5-670

$8.98

26

COLLAR (6X4)

90127-KF0-770

$3.42

27

NUT, FIXING This part replaces 90321-KA4-700.

90321-KF0-000

$9.76

27

NUT, FIXING

90321-KF0-000

$9.76

28

BAND, WIRE

90650-KW3-000

$4.48

29

BOLT, RECESSED (5X8)

92301-05008-0A

$1.49

30

SCREW, PAN (4X12)

93500-04012-0A

$1.49

30

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$1.49

31

SCREW, PAN (5X16)

93500-05016-0G

$1.49

32

SCREW, PAN (5X20)

93500-05020-0G

$1.49

33

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM)

94001-06200-0S

$1.49

34

WASHER, PLAIN (5MM)

94103-05000

$1.49

35

WASHER, SPRING (4MM)

94111-04000

$1.49
