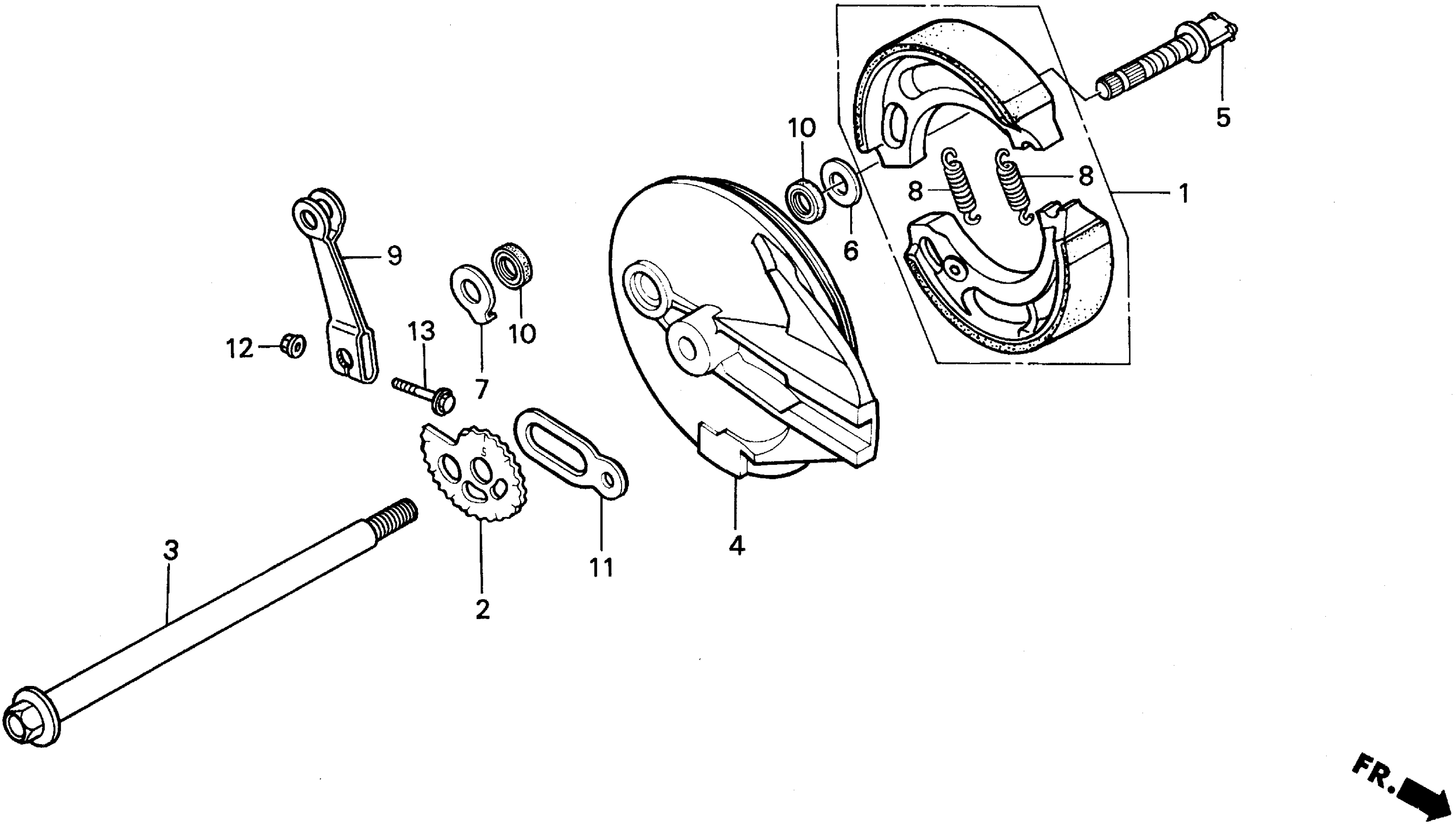

Honda XR200RA (94) MOTORCYCLE, JPN, VIN# JH2ME050-RK800001 TO JH2ME050-RK803024 REAR BRAKE PANEL Diagram

SHOE SET, BRAKE (ASK)

06430-GBJ-J10

$29.23

SHOE SET, BRAKE (ASK) This part replaces 06430-KT0-305.

06430-GBJ-J10

$29.23

ADJUSTER, R. CHAIN This part replaces 40544-KF0-000.

40544-MS8-000

Unavailable

ADJUSTER, R. CHAIN

40544-MS8-000

Unavailable

AXLE, RR. WHEEL

42301-KT0-830

$56.97

PANEL, RR. BRAKE

43100-KK0-000

Unavailable

CAM, RR. BRAKE

43141-KF0-000

Unavailable

SEAT, RR. BRAKE CAM This part replaces 43142-KB7-000.

43142-MN1-670

Unavailable

SEAT, RR. BRAKE CAM

43142-MN1-670

Unavailable

INDICATOR, RR. BRAKE

43145-KB7-000

$6.43

SPRING, BRAKE SHOE

43151-110-000

$2.92

ARM, RR. BRAKE

43410-KT0-830

Unavailable

DUST SEAL, BRAKE CAM (NOK)

45134-KB7-005

$2.97

STOPPER, RR. AXLE

52162-KF0-000

$5.46

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X32)

95701-06032-00

$1.89
