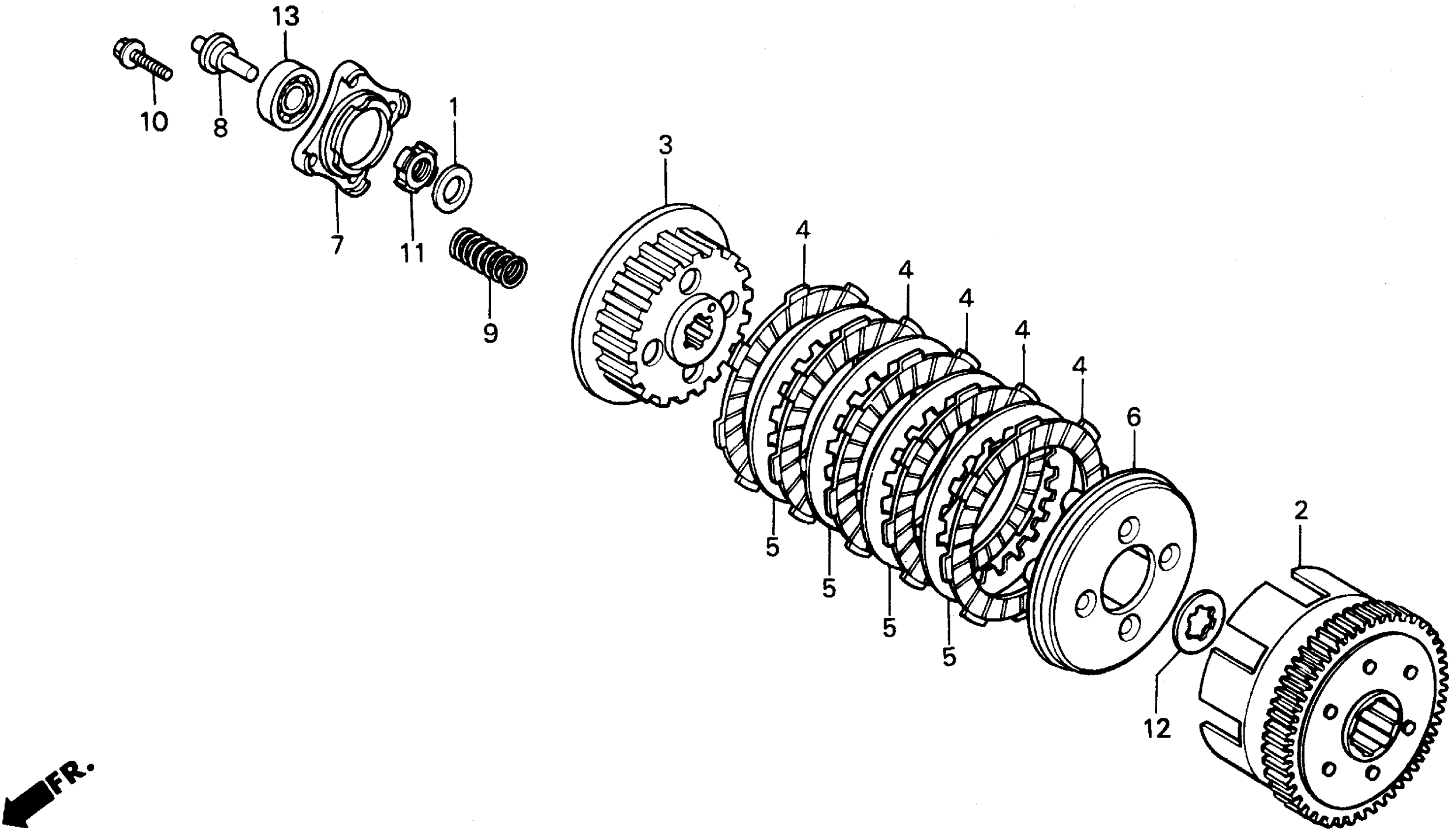

Honda XR200RA (94) MOTORCYCLE, JPN, VIN# JH2ME050-RK800001 TO JH2ME050-RK803024 CLUTCH Diagram

WASHER, OIL FILTER ROTOR LOCKING

15451-107-000

$4.03

CLUTCH (OUTER)

22100-437-020

$325.33

CENTER, CLUTCH | Use up to Engine SN 5708410 This part replaces 22121-107-010.

22121-KCS-650

$36.58

CENTER, CLUTCH

22121-KCS-650

$36.58

DISK, CLUTCH FRICTION

22201-166-000

$17.44

PLATE, CLUTCH

22311-KN4-680

$6.31

PLATE, CLUTCH This part replaces 22311-107-000.

22311-KN4-680

$6.31

PLATE, CLUTCH PRESSURE

22350-107-010

$30.91

PLATE, CLUTCH LIFTER

22361-437-000

$14.82

ROD, CLUTCH LIFTER | Use up to Engine SN 5708410 This part replaces 22366-437-000.

22366-KCN-000

Unavailable

ROD, CLUTCH LIFTER

22366-KCN-000

Unavailable

SPRING, CLUTCH

22401-KT0-000

$5.10

BOLT, SPECIAL FLANGE (6X22)

90050-357-000

$3.35

NUT, LOCK (16MM) | Use up to Engine SN 5708410 This part replaces 90231-200-010.

90231-KCS-651

$4.21

NUT, LOCK (16MM)

90231-KCS-651

$4.21

WASHER B, SPLINE (20MM)

90461-107-000

$4.58

BEARING, RADIAL BALL (16003) This part replaces 91008-KK6-000.

91011-KK6-013

$15.40

BEARING, RADIAL BALL (16003) This part replaces 91010-HC0-003.

91011-KK6-013

$15.40

BEARING, RADIAL BALL (16003)

91011-KK6-013

$15.40
