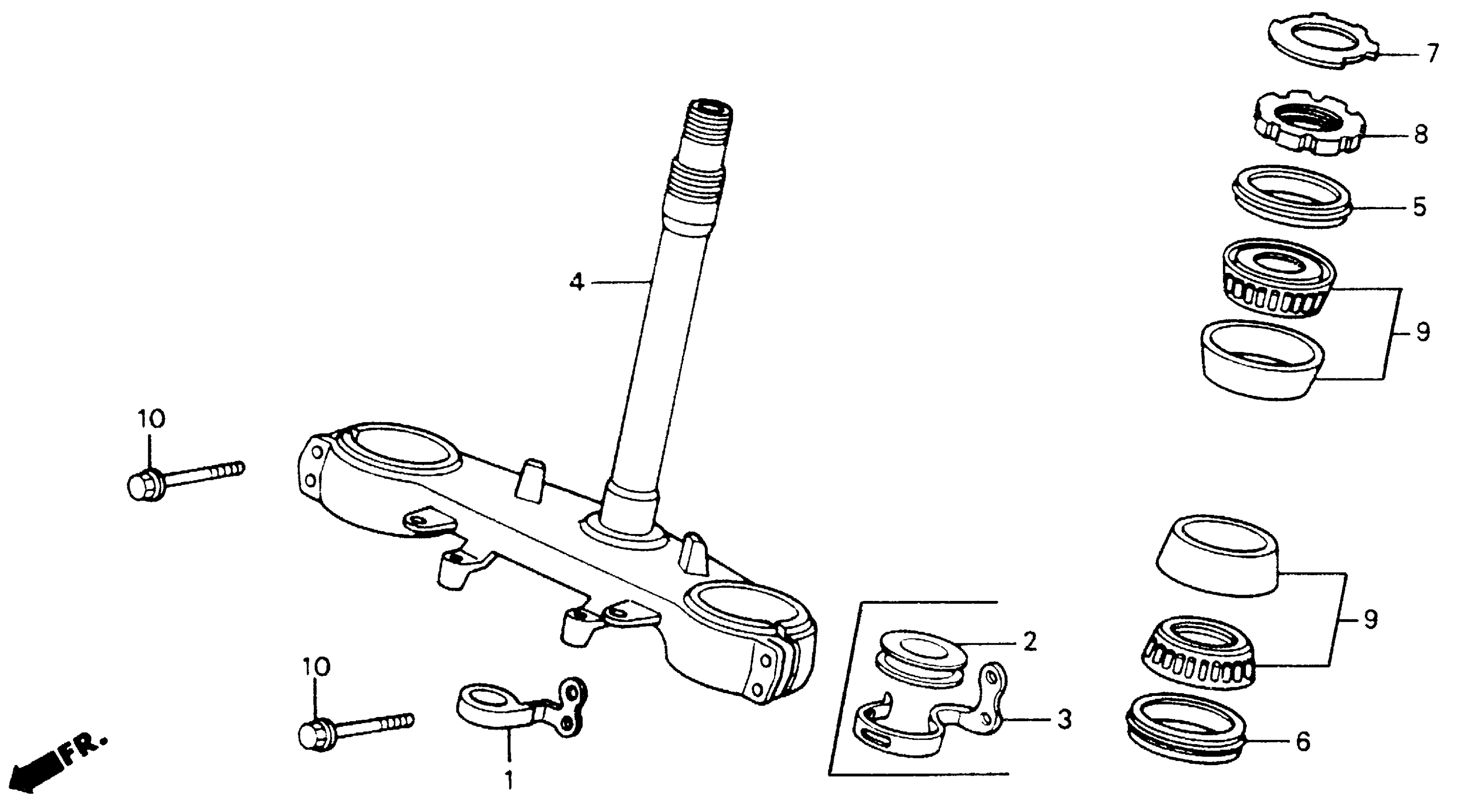

Honda XR200RA (93) MOTORCYCLE, JPN, VIN# JH2ME050-PK700001 STEERING STEM 90-93 Diagram

#

Description

Price

1

GUIDE, BRAKE CABLE (LOWER)

45460-KT0-830

Unavailable

2

INNER, CABLE GUIDE | (Optional).

45466-KA4-000

$6.51

3

GUIDE, BRAKE CABLE (LOWER) (NOT AVAILABLE) | (Optional).

45468-KK0-000

Unavailable

4

STEM SUB-ASSY., STEERING This part replaces 53200-KT0-830.

53219-KT0-A00

Unavailable

4

STEM SUB-ASSY., STEERING This part replaces 53200-KT0-831.

53219-KT0-A00

Unavailable

4

STEM SUB-ASSY., STEERING

53219-KT0-A00

Unavailable

5

DUST SEAL, STEERING HEAD (ARAI)

53214-KA3-732

$6.19

6

DUST SEAL, STEERING HEAD (ARAI)

53214-KA4-701

$6.61

7

WASHER, TOP THREAD

53228-KN5-000

$8.48

8

THREAD, STEERING HEAD TOP

53229-KN5-650

$26.43

9

BEARING, HEAD PIPE (UPPER) (NACHI) This part replaces 91015-425-831.

91015-425-832

$31.00

9

BEARING, HEAD PIPE (UPPER) (NACHI)

91015-425-832

$31.00

10

BOLT, FLANGE (8X35)

96300-08035-00

$1.95
