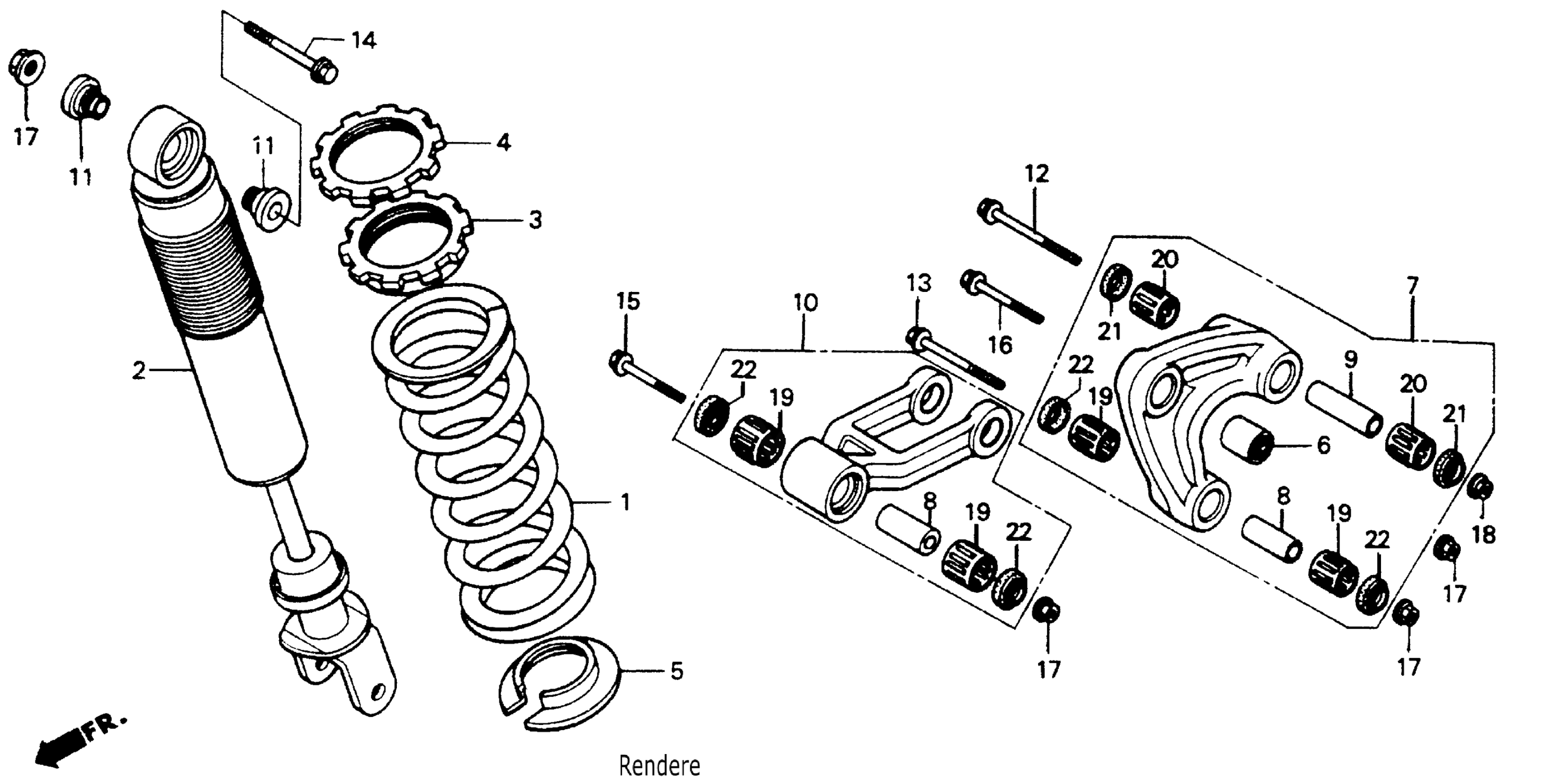

Honda XR200RA (93) MOTORCYCLE, JPN, VIN# JH2ME050-PK700001 REAR SHOCK ABSORBER 93 Diagram

#

Description
Price

1

SPRING, RR. SHOCK ABSORBER

52401-KT0-691

Unavailable

2

DAMPER, RR.

52410-KT0-691

Unavailable

3

SEAT, SPRING (UPPER)

52422-KT0-691

Unavailable

4

NUT, ADJUST

52423-KT0-691

Unavailable

5

GUIDE, SPRING (LOWER)

52424-HC0-004

$23.80

6

BUSH, DAMPER (LOWER)

52451-MA0-000

$15.12

7

ARM ASSY., SHOCK ABSORBER

52460-KT0-830

Unavailable

8

COLLAR A, CUSHION ARM

52463-KT0-830

Unavailable

9

COLLAR B, CUSHION ARM

52464-KT0-830

Unavailable

10

ROD ASSY., SHOCK CONNECTING

52470-KT0-830

Unavailable

11

COLLAR, SHOCK ABSORBER (UPPER)

52486-KT0-691

Unavailable

12

BOLT, FLANGE (12X90)

90128-KT0-680

$19.72

13

BOLT, FLANGE (10X72)

90150-KF0-000

$15.67

14

BOLT, FLANGE (10X83) (NOT AVAILABLE)

90150-KK0-000

Unavailable

15

BOLT, FLANGE (10X69) This part replaces 90151-KF0-000.

90151-KV6-910

Unavailable

15

BOLT, FLANGE (10X69)

90151-KV6-910

Unavailable

16

BOLT, FLANGE (10X58)

90153-KK0-000

$7.27

16

BOLT, FLANGE (10X58) This part replaces 90153-KT0-680.

90153-KK0-000

$7.27

17

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

18

NUT, FLANGE (12MM) (FUSERASHI)

90306-KF0-003

$3.85

19

BEARING, NEEDLE (16X22X12)

91077-GS2-702

$19.89

20

BEARING, NEEDLE (17.5X24.5X22)

91079-KA3-831

$27.76

21

OIL SEAL (17.5X26X5)

91205-KT2-005

$5.79

22

DUST SEAL (16X23X3.5)

91251-KY7-003

$4.92
