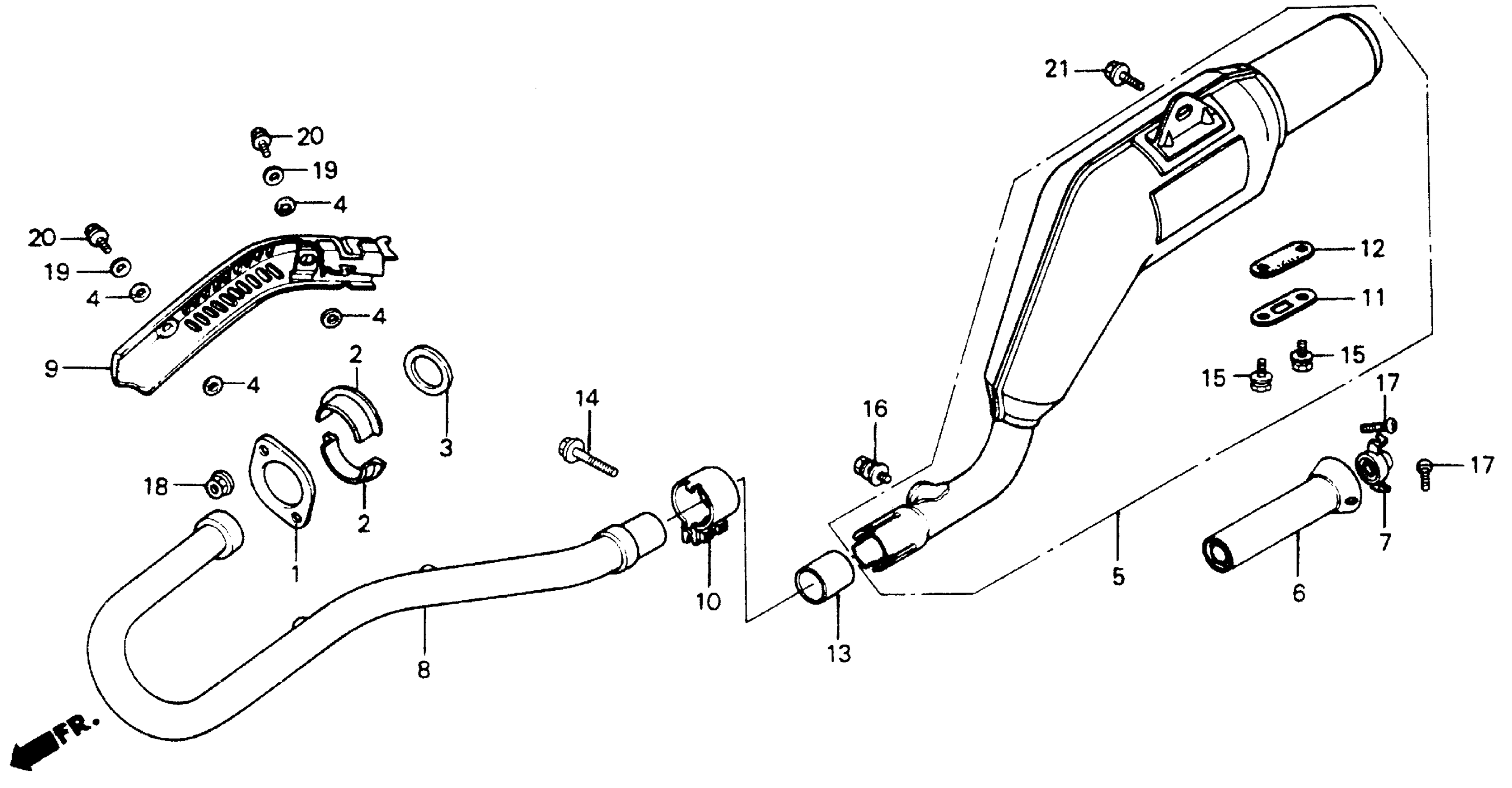

Honda XR200RA (93) MOTORCYCLE, JPN, VIN# JH2ME050-PK700001 MUFFLER 86-93 Diagram

JOINT, EX. PIPE

18231-355-000

$31.93

COLLAR, EX. PIPE JOINT

18233-437-000

$9.37

GASKET, EX. PIPE

18291-MN5-650

$3.77

GASKET, PROTECTOR

18292-KBR-000

$3.45

MUFFLER

18310-KT0-771

Unavailable

PIPE, TAIL

18311-KT0-670

Unavailable

PIPE, TAIL END This part replaces 18312-KT1-650.

18312-KT1-670

Unavailable

PIPE, TAIL END

18312-KT1-670

Unavailable

PIPE, EX.

18320-KT0-670

Unavailable

PROTECTOR, EX. PIPE

18321-KT0-830

Unavailable

BAND, MUFFLER

18371-VM5-000

$21.91

LID, MUFFLER

18373-429-010

$9.15

GASKET, MUFFLER LID

18374-MN1-880

$4.21

GASKET, EX.

18391-MB0-891

$17.92

BOLT, FLANGE (8X32)

96300-08032-07

$1.90

BOLT-WASHER (6X12)

93401-06012-07

$1.62

BOLT-WASHER (8X25)

93403-08025-00

Unavailable

NUT, CAP (6MM)

90304-438-000

$7.14

WASHER, PLAIN (6MM)

94101-06700

$1.49

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

BOLT, FLANGE (8X35)

96300-08035-00

$1.95
