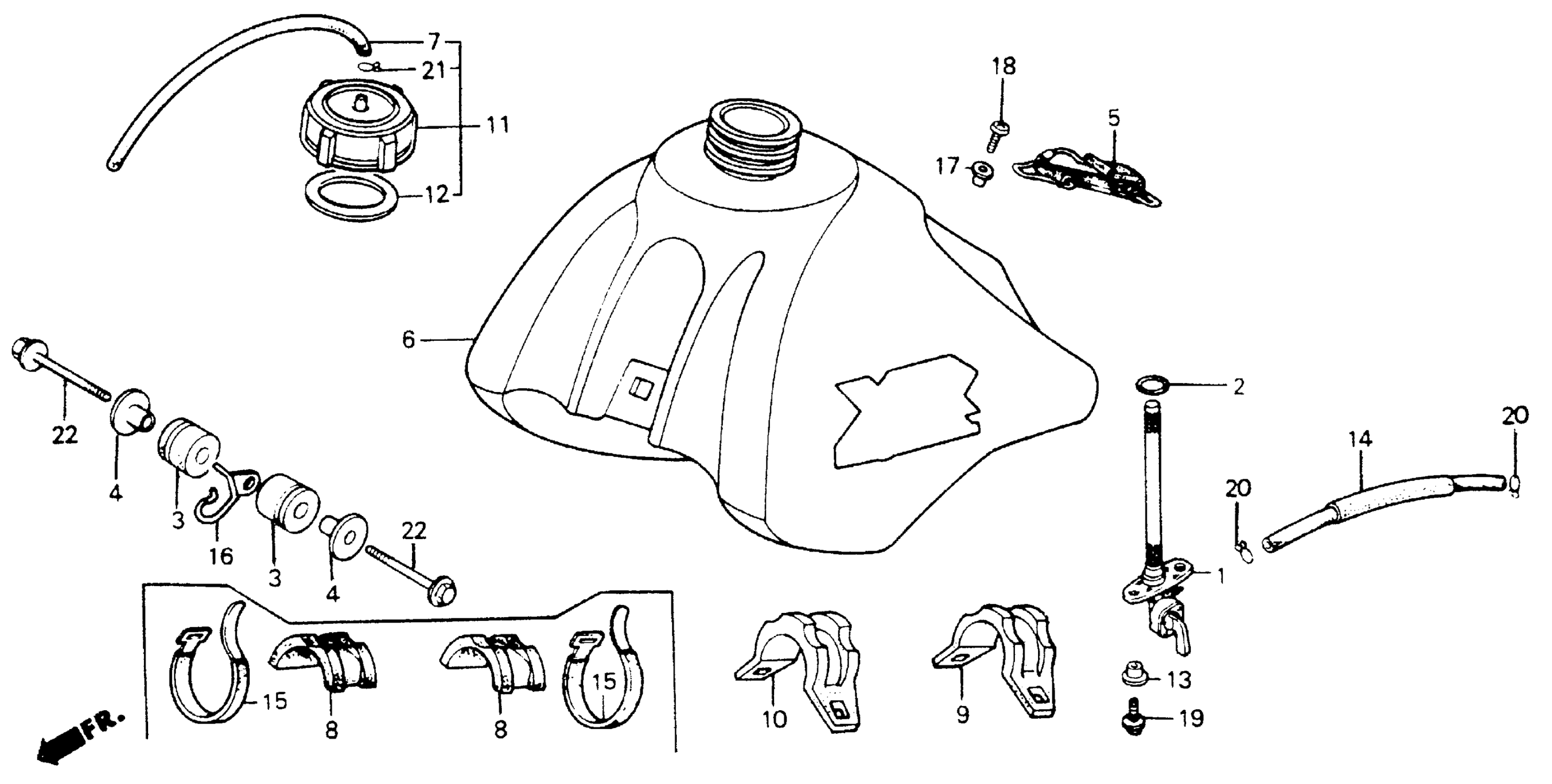

Honda XR200RA (93) MOTORCYCLE, JPN, VIN# JH2ME050-PK700001 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY.

16950-KT0-831

$88.40

2

O-RING (11.8X3.55)

16997-467-000

$2.04

3

RUBBER, FUEL TANK MOUNTING

17508-KA3-710

$8.09

4

COLLAR, FUEL TANK SETTING

17509-KA3-710

$9.94

5

BAND, RR. TANK

17516-KT0-670

$27.56

6

TANK SET, FUEL *NH138* (WL) (SHASTA WHITE) (NOT AVAILABLE)

17520-KT0-690ZA

Unavailable

7

TUBE, FUEL CAP BREATHER

17521-429-000

$6.66

9

RUBBER, RR. TANK

17611-KT0-670

Unavailable

10

RUBBER, FR. TANK

17612-KT0-670

Unavailable

11

CAP ASSY., FUEL TANK

17620-KT1-780

$29.21

12

GASKET, FUEL CAP This part replaces 17624-KT1-780.

17624-KT1-781

$4.60

13

COLLAR, FUEL TANK SETTING

17626-467-000

$4.56

14

BULK HOSE, FUEL (5.5X3000) (5.5X145)

95001-55003-60M

$56.68

17

COLLAR, LOCK SETTING

83119-MG9-000

$5.64

18

SCREW, PAN (6X14)

93500-06014-0A

$0.97

19

BOLT, FLANGE (6X16)

96001-06016-00

$0.97

20

CLIP, TUBE (B10)

95002-02100

$1.75

21

CLIP, TUBE (C9)

95002-50000

$1.16

22

BOLT, FLANGE (6X40)

96300-06040-00

$1.85
