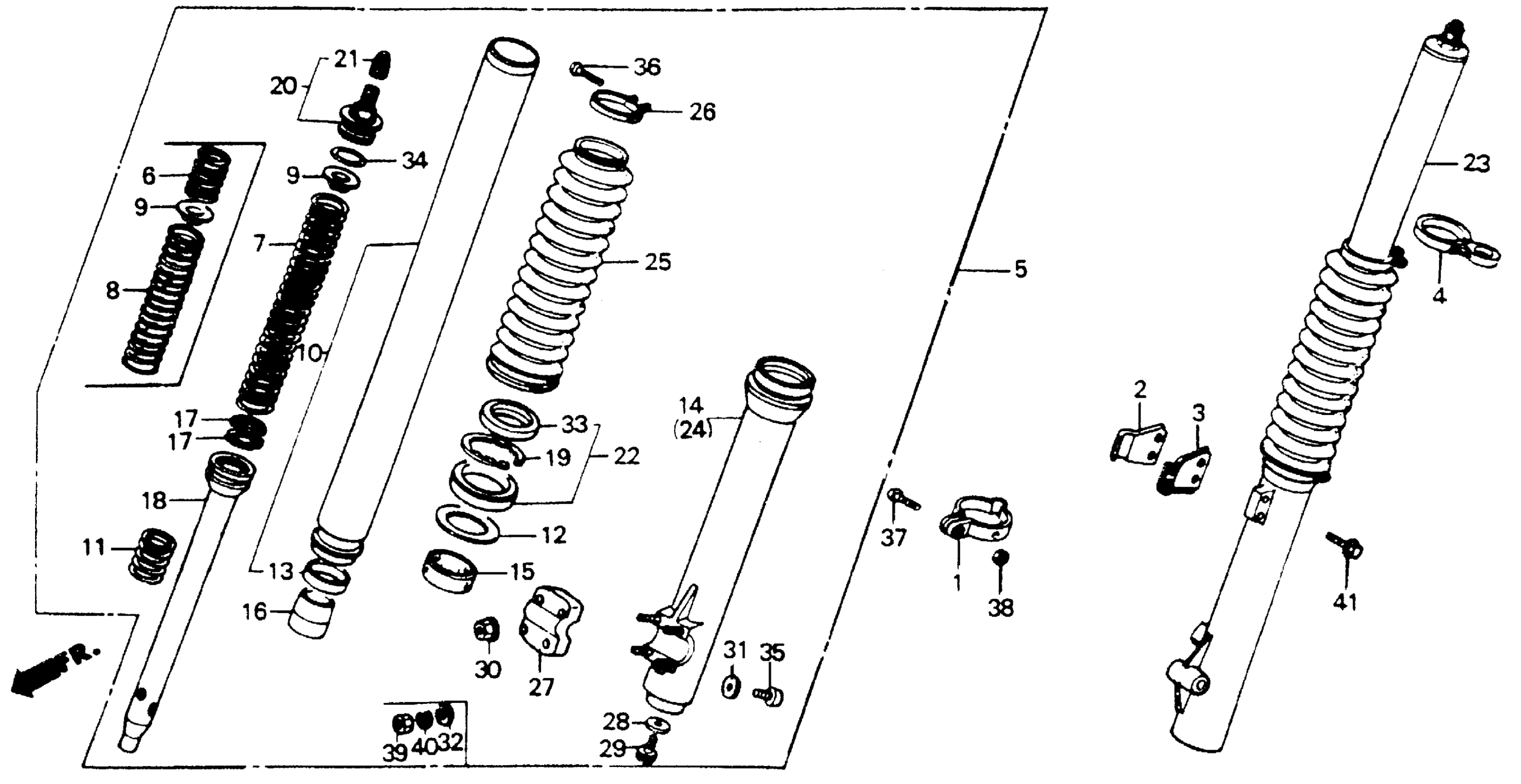

Honda XR200RA (93) MOTORCYCLE, JPN, VIN# JH2ME050-PK700001 FRONT FORK Diagram

#

Description
Price

1

CLAMP, SPEEDOMETER CABLE | (Optional).

44832-KK0-000

Unavailable

2

CLAMP A, FR. BRAKE CABLE

45461-KG0-000

Unavailable

3

CLAMP B, FR. BRAKE CABLE

45462-KG0-000

Unavailable

4

GUIDE, SPEEDOMETER CABLE | (Optional).

45468-KT0-680

Unavailable

5

FORK ASSY., R. FR. *B106* (KAYABA) (CAPRI BLUE) (NOT AVAILABLE)

51400-KT0-691ZA

Unavailable

7

SPRING, FR. FORK

51401-KT0-691

Unavailable

9

GUIDE, SPRING

51403-KK0-004

Unavailable

10

PIPE, FR. FORK

51410-KT0-691

Unavailable

11

SPRING, FR. REBOUND

51411-KK0-004

Unavailable

12

WASHER

51412-KK0-004

Unavailable

13

SLEEVE, FORK PIPE

51415-KK0-004

Unavailable

14

CASE, R. (LOWER) This part replaces 51420-KK0-004.

51420-KK0-014

Unavailable

14

CASE, R. (LOWER)

51420-KK0-014

Unavailable

15

BUSH, FORK PIPE

51424-KK0-004

Unavailable

16

PIECE, OIL LOCK

51432-KK0-004

Unavailable

17

RING, PISTON

51437-KK0-004

Unavailable

18

PIPE, SEAT

51440-KT0-691

Unavailable

19

RING, SNAP

51447-KK0-004

$6.39

20

BOLT ASSY., FR. FORK

51450-KK0-004

Unavailable

21

CAP, AIR VALVE

51453-KK0-004

$4.46

22

SEAL SET, FR. FORK

51490-KK0-305

$41.43

23

FORK ASSY., L. FR. *B106* (KAYABA) (CAPRI BLUE) (NOT AVAILABLE)

51500-KT0-691ZA

Unavailable

24

CASE, L. (LOWER) This part replaces 51520-KK0-004.

51520-KK0-014

Unavailable

24

CASE, L. (LOWER)

51520-KK0-014

Unavailable

25

BOOT, FR. FORK *B106* (CAPRI BLUE) (NOT AVAILABLE)

51611-KT0-681ZB

Unavailable

26

BAND, BOOT (UPPER)

51612-KA3-711

Unavailable

27

HOLDER, AXLE

51634-KT0-671

Unavailable

28

WASHER, OIL BOLT

52442-KA3-731

$2.34

29

BOLT, SOCKET (10X25)

90116-KK0-004

$5.94

30

NUT, U (6MM)

90301-473-003

$4.07

31

WASHER, DRAIN (4MM)

90543-KA4-004

Unavailable

33

DUST SEAL (36MM)

91254-KK0-004

Unavailable

34

O-RING (26.57X3.53)

91356-KK0-004

Unavailable

35

SCREW, PAN (4X8)

93500-04008-0A

$1.49

35

SCREW, PAN (4X8) This part replaces 93500-04008-1A.

93500-04008-0A

$1.49

36

SCREW, PAN (4X16)

90202-KA4-004

$2.48

36

SCREW, PAN (4X16)

93500-04016-0A

$1.49

37

SCREW, PAN (5X18) | (Optional).

93500-05018-0A

$1.49

38

NUT, HEX. (5MM) | (Optional).

94001-05000-0S

$2.74

41

BOLT, FLANGE (6X16)

96300-06016-00

$1.49

41

BOLT, FLANGE (6X16) This part replaces 96500-06016-00.

96300-06016-00

$1.49
