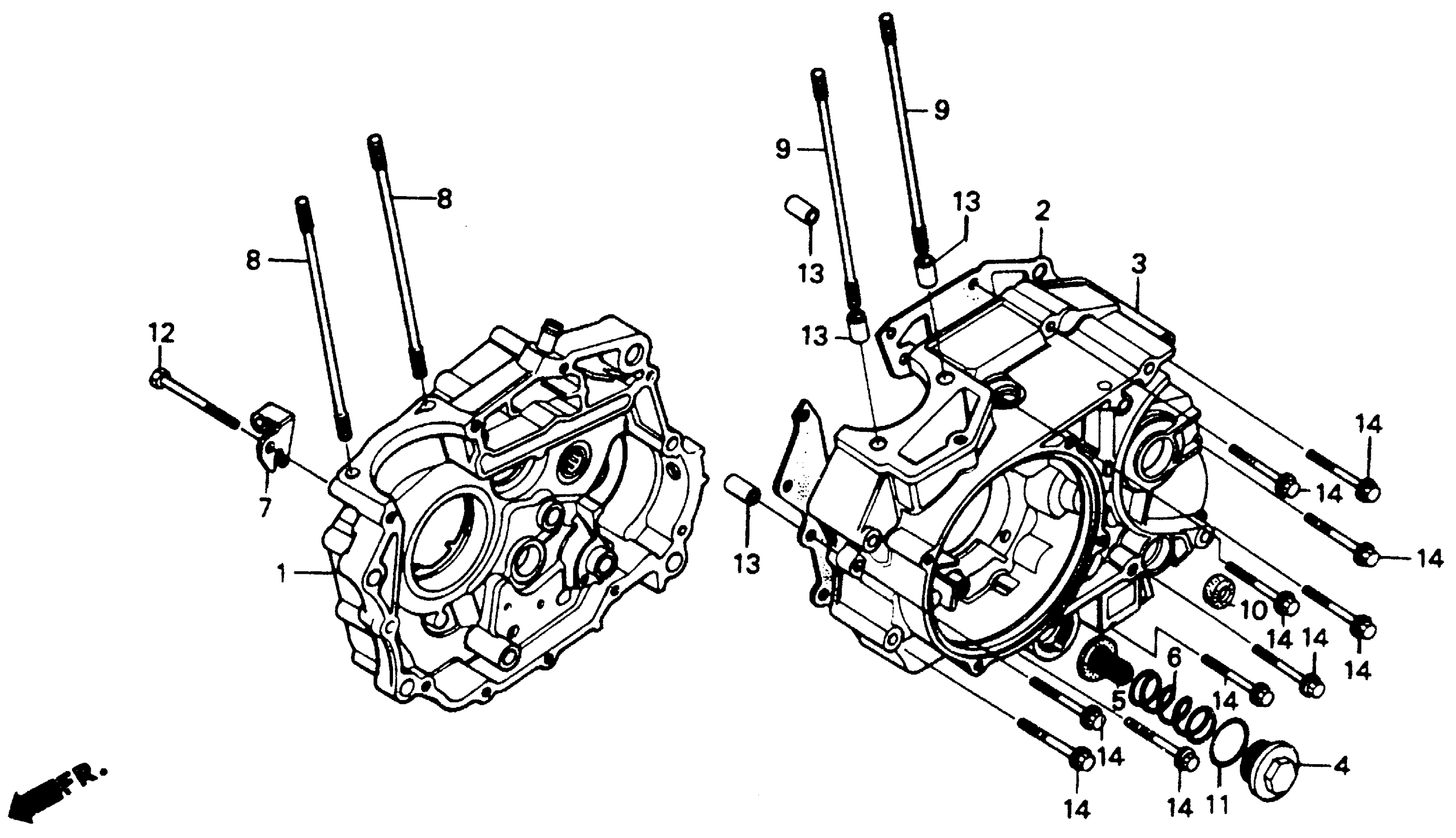

Honda XR200RA (93) MOTORCYCLE, JPN, VIN# JH2ME050-PK700001 CRANKCASE 86-93 Diagram

CRANKCASE, R. | Use up to Engine SN 5705048 This part replaces 11100-KT0-682.

11100-KT0-406

Unavailable

CRANKCASE, R. | Use from Engine SN 5705049 This part replaces 11100-KT0-683.

11100-KT0-684

Unavailable

CRANKCASE, R. | Use from Engine SN 5705049

11100-KT0-684

Unavailable

GASKET, CRANKCASE This part replaces 11191-KT0-710.

11191-KT0-711

$21.56

GASKET, CRANKCASE

11191-KT0-711

$21.56

CRANKCASE, L.

11200-KT0-680

Unavailable

CAP, TAPPET ADJUSTING HOLE

12361-383-000

$6.43

SCREEN, OIL FILTER

15421-107-000

$6.31

SPRING, OIL FILTER SCREEN

15426-107-000

$3.63

HOLDER, CLUTCH CABLE

22838-KF9-900

Unavailable

BOLT A, CYLINDER STUD

90031-427-010

Unavailable

BOLT B, CYLINDER STUD

90032-427-010

$10.95

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

O-RING (35X3) (ARAI) This part replaces 91303-107-000.

91303-KK3-830

$2.92

BOLT, HEX. (6X60)

92101-06060-0G

Unavailable

PIN A, DOWEL (10X14)

94301-10140

$2.28

PIN A, DOWEL (10X14) This part replaces 90703-HC4-000.

94301-10140

$2.28

BOLT, FLANGE (6X50)

96001-06050-00

$2.16
