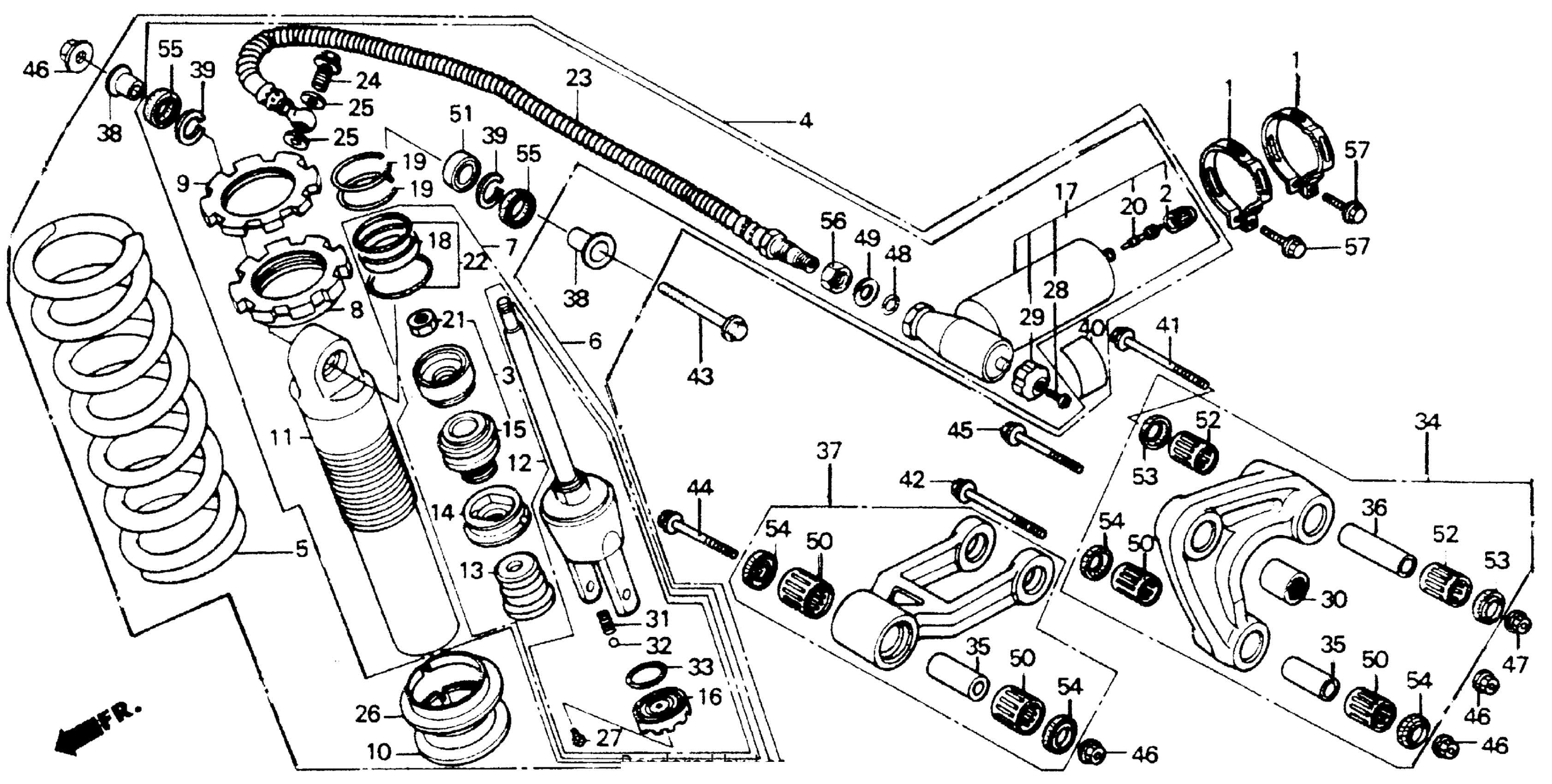

Honda XR200RA (91) MOTORCYCLE, JPN, VIN# JH2ME050-MK600001 REAR SHOCK ABSORBER 90-91 Diagram

BAND, SUB-TANK (NOT AVAILABLE)

50252-KT0-670

Unavailable

CAP, AIR VALVE

51453-KK0-004

$4.46

CASE & NUT SET, ROD GUIDE (NOT AVAILABLE)

524A2-KA3-731

Unavailable

CUSHION ASSY., RR. *R119* (KAYABA) (FLASH RED) (NOT AVAILABLE)

52400-KT0-682ZA

Unavailable

SPRING, RR. SHOCK ABSORBER *R119* (FLASH RED) (NOT AVAILABLE)

52401-KT0-681ZA

Unavailable

DAMPER, RR. (NOT AVAILABLE)

52410-KT0-682

Unavailable

ROD, PISTON (NOT AVAILABLE)

52421-KT0-681

Unavailable

SEAT, SPRING (UPPER) (KAYABA)

52422-KA3-731

Unavailable

NUT, ADJUSTER

52423-KA3-731

Unavailable

SEAT, SPRING (LOWER)

52424-KS6-701

Unavailable

SEAT, SPRING (LOWER) This part replaces 52424-KT1-671.

52424-KS6-701

Unavailable

CASE, RR. SHOCK ABSORBER (NOT AVAILABLE)

52425-KT0-681

Unavailable

ROD (NOT AVAILABLE)

52426-KT0-681

Unavailable

RUBBER, BUMPER

52427-KT1-671

$17.61

CAP, CASE (NOT AVAILABLE)

52428-KA3-731

Unavailable

CASE, ROD GUIDE (KAYABA)

52429-KA3-731

Unavailable

DIAL, ADJUSTING (NOT AVAILABLE)

52429-KT0-671

Unavailable

TANK ASSY., SUB (NOT AVAILABLE)

52430-KT0-671

Unavailable

RING, PISTON (KAYABA) (NOT AVAILABLE)

52431-KA3-731

Unavailable

RING, SNAP (NOT AVAILABLE)

52435-KA3-731

Unavailable

CORE, VALVE

52437-KA3-731

Unavailable

NUT, HEX. (12MM)

52438-KA3-731

$3.10

O-RING SET (KAYABA) (NOT AVAILABLE) This part replaces 52439-KA3-731.

52437-KA3-832

Unavailable

HOSE, JOINT (NOT AVAILABLE)

52440-KT0-671

Unavailable

BOLT, OIL

52441-KA3-731

Unavailable

WASHER, OIL BOLT

52442-KA3-731

$2.34

WASHER, SPRING SEAT (NOT AVAILABLE)

52445-KT1-671

Unavailable

SCREW, PAN (3X8) (NOT AVAILABLE)

52448-KS6-004

Unavailable

SCREW, PAN (3X8) (NOT AVAILABLE)

52448-KT0-681

Unavailable

DIAL, SUB-TANK This part replaces 52449-KA3-731.

52433-KK0-004

Unavailable

BUSH, DAMPER (LOWER)

52451-MA0-000

$15.12

SPRING, CLICK

52455-KT0-671

Unavailable

BALL (NOT AVAILABLE)

52456-KT0-671

Unavailable

DUST SEAL (NOT AVAILABLE)

52457-KT0-671

Unavailable

ARM ASSY., SHOCK ABSORBER

52460-KT0-830

Unavailable

COLLAR A, CUSHION ARM

52463-KT0-830

Unavailable

COLLAR B, CUSHION ARM

52464-KT0-830

Unavailable

ROD ASSY., SHOCK CONNECTING

52470-KT0-830

Unavailable

COLLAR, SHOCK ABSORBER (UPPER) (NOT AVAILABLE)

52486-KA3-731

Unavailable

RING, STOPPER

52487-KA3-731

Unavailable

LABEL, RR. DAMPER WARNING (NOT AVAILABLE)

87516-KT1-901

Unavailable

BOLT, FLANGE (12X90)

90128-KT0-680

$19.72

BOLT, FLANGE (10X72)

90150-KF0-000

$15.67

BOLT, FLANGE (10X83) (NOT AVAILABLE)

90150-KK0-000

Unavailable

BOLT, FLANGE (10X69) This part replaces 90151-KF0-000.

90151-KV6-910

Unavailable

BOLT, FLANGE (10X69)

90151-KV6-910

Unavailable

BOLT, FLANGE (10X58)

90153-KK0-000

$7.27

BOLT, FLANGE (10X58) This part replaces 90153-KT0-680.

90153-KK0-000

$7.27

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

NUT, FLANGE (12MM) (FUSERASHI)

90306-KF0-003

$3.85

O-RING (1.9X9.8) (NOT AVAILABLE)

90351-KK0-004

Unavailable

WASHER (10MM) This part replaces 90501-KK0-004.

90501-KK6-700

Unavailable

WASHER (10MM)

90501-KK6-700

Unavailable

BEARING, NEEDLE (16X22X12)

91077-GS2-702

$19.89

BEARING, SPHERICAL (14MM) This part replaces 91077-KA3-731.

91077-KN5-004

$22.62

BEARING, SPHERICAL (14MM)

91077-KN5-004

$22.62

BEARING, NEEDLE (17.5X24.5X22)

91079-KA3-831

$27.76

OIL SEAL (17.5X26X5)

91205-KT2-005

$5.79

DUST SEAL (16X23X3.5)

91251-KY7-003

$4.92

DUST SEAL, RR. SHOCK (UPPER) (NOT AVAILABLE)

91351-KA3-731

Unavailable

NUT, HEX. (12MM)

94002-12000-0S

$2.06

BOLT, FLANGE (6X22)

96300-06022-00

$1.49

BOLT, FLANGE (6X22) This part replaces 96500-06022-00.

96300-06022-00

$1.49
