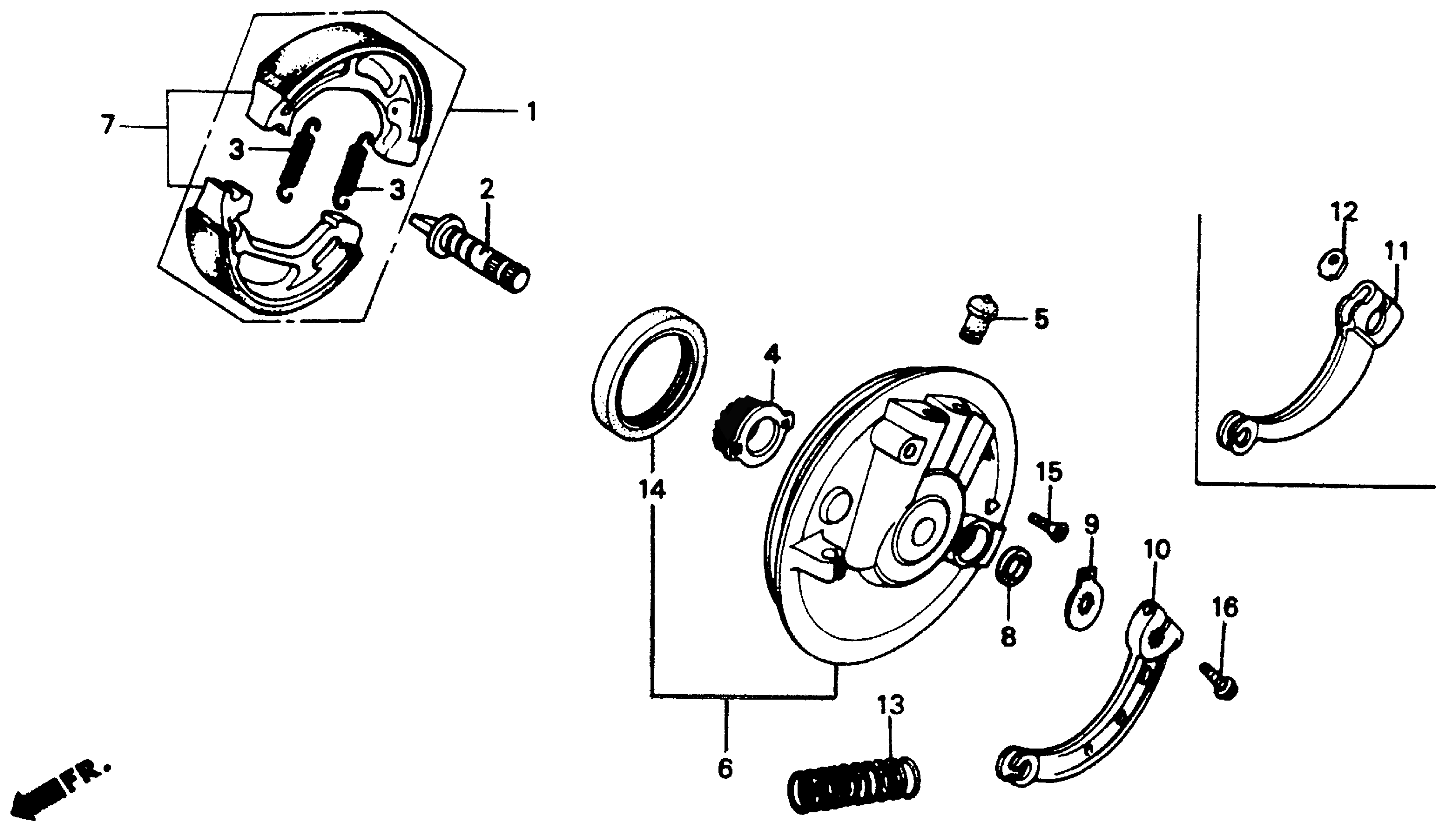

Honda XR200RA (91) MOTORCYCLE, JPN, VIN# JH2ME050-MK600001 FRONT BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (ASK)

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-KK0-405.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-KT0-305.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 451A2-KK0-305.

06430-GBJ-J10

$29.23

1

SHOE SET, BRAKE (ASK) This part replaces 06430-KB9-005.

06430-GBJ-J10

$29.23

1

SHOE SET, BRAKE (ASK) This part replaces 06430-KB9-405.

06430-GBJ-J10

$29.23

1

SHOE SET, BRAKE (ASK)

06430-GBJ-J10

$29.23

1

SHOE SET, BRAKE (ASK) This part replaces 06430-KT0-305.

06430-GBJ-J10

$29.23

2

CAM, RR. BRAKE

43141-KJ2-000

Unavailable

3

SPRING, BRAKE SHOE

43151-110-000

$2.92

4

GEAR, SPEEDOMETER

44804-KA2-003

Unavailable

5

CAP, GEAR BOX HOLE

44835-365-671

Unavailable

6

PANEL SUB, FR. BRAKE *NH105* (MAT BLACK)

45010-KK0-305ZA

Unavailable

7

SHOE SET, FR. BRAKE (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45120-KK0-305

Unavailable

8

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

9

INDICATOR, FR. BRAKE

45145-KK0-000

Unavailable

11

ARM, FR. BRAKE

45410-KT0-830

Unavailable

12

NUT, FR. BRAKE ARM SETTING

45436-001-000

$1.80

13

SPRING, FR. BRAKE CABLE

45454-360-010

$5.14

14

OIL SEAL (47X60X7) (ARAI)

91251-GK4-003

$9.19

14

OIL SEAL (47X60X7) (ARAI) This part replaces 91251-121-000.

91251-GK4-003

$9.19

14

OIL SEAL (47X60X7) (ARAI) This part replaces 91251-121-003.

91251-GK4-003

$9.19

14

OIL SEAL (47X60X7) (NOK)

91251-361-005

$13.39

15

SCREW, OVAL (5X18)

93700-05018-0A

$1.49

16

BOLT, FLANGE (6X35)

96300-06035-00

Unavailable

16

BOLT, FLANGE (6X35) This part replaces 96500-06035-00.

96300-06035-00

Unavailable
