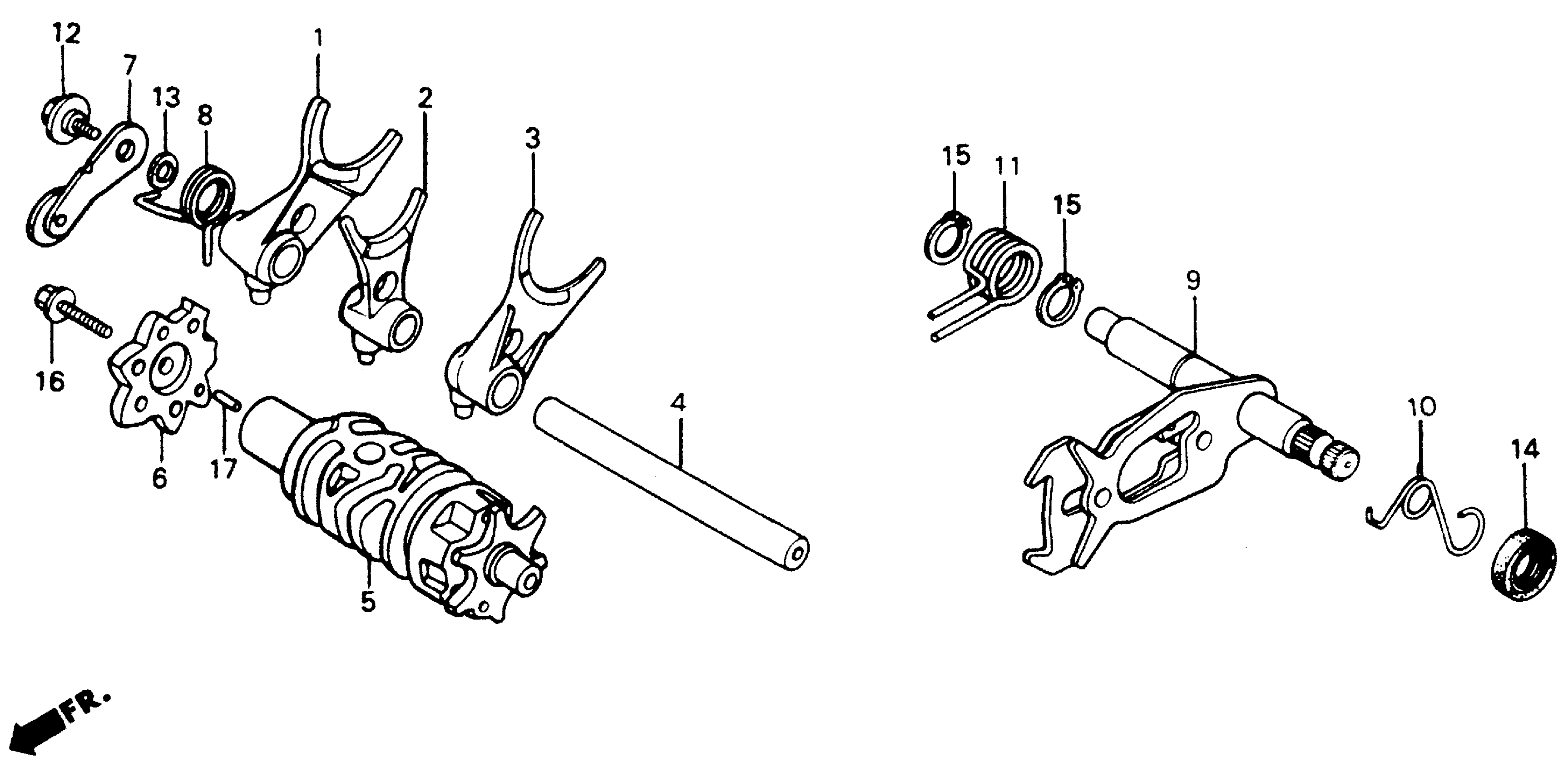

Honda XR200RA (85) MOTORCYCLE, JPN, VIN# JH2ME050-FK100001 TO JH2ME050-FK105715 SHIFT DRUM 84-85 Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-KK0-000

Unavailable

2

FORK, CENTER GEARSHIFT

24212-KK0-000

$138.02

3

FORK, L. GEARSHIFT

24213-KK0-000

$138.02

4

SHAFT, GEARSHIFT FORK GUIDE This part replaces 24241-KK0-000.

24241-MC0-000

$28.07

4

SHAFT, GEARSHIFT FORK GUIDE

24241-MC0-000

$28.07

5

DRUM, GEARSHIFT This part replaces 24300-KK0-000.

24300-KL4-000

Unavailable

5

DRUM, GEARSHIFT

24300-KL4-000

Unavailable

6

CAM, GEARSHIFT (SOURCE: VINTAGE PARTS INC.) This part replaces 24411-KF0-000.

24411-KF0-010

Unavailable

6

CAM, GEARSHIFT

24411-KF0-010

Unavailable

7

STOPPER, GEARSHIFT DRUM

24430-KK0-000

$19.02

8

SPRING, SHIFT DRUM STOPPER

24435-KK0-000

$4.84

9

SPINDLE, GEARSHIFT This part replaces 24610-KK0-000.

24610-KK0-010

Unavailable

9

SPINDLE, GEARSHIFT

24610-KK0-010

Unavailable

10

SPRING, GEARSHIFT RESET This part replaces 24624-KA4-000.

24624-MT3-000

$3.72

10

SPRING, GEARSHIFT RESET

24624-MT3-000

$3.72

11

SPRING, GEARSHIFT RETURN

24651-KF0-013

$8.75

12

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

12

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

13

WASHER, DRUM STOPPER

90417-360-000

$1.74

14

OIL SEAL (14X28X7) (ARAI)

91202-965-003

$6.41

15

CIRCLIP, OUTER (14MM)

94510-14000

$1.49

16

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

16

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

17

ROLLER (3X8)

96220-30080

$1.49
