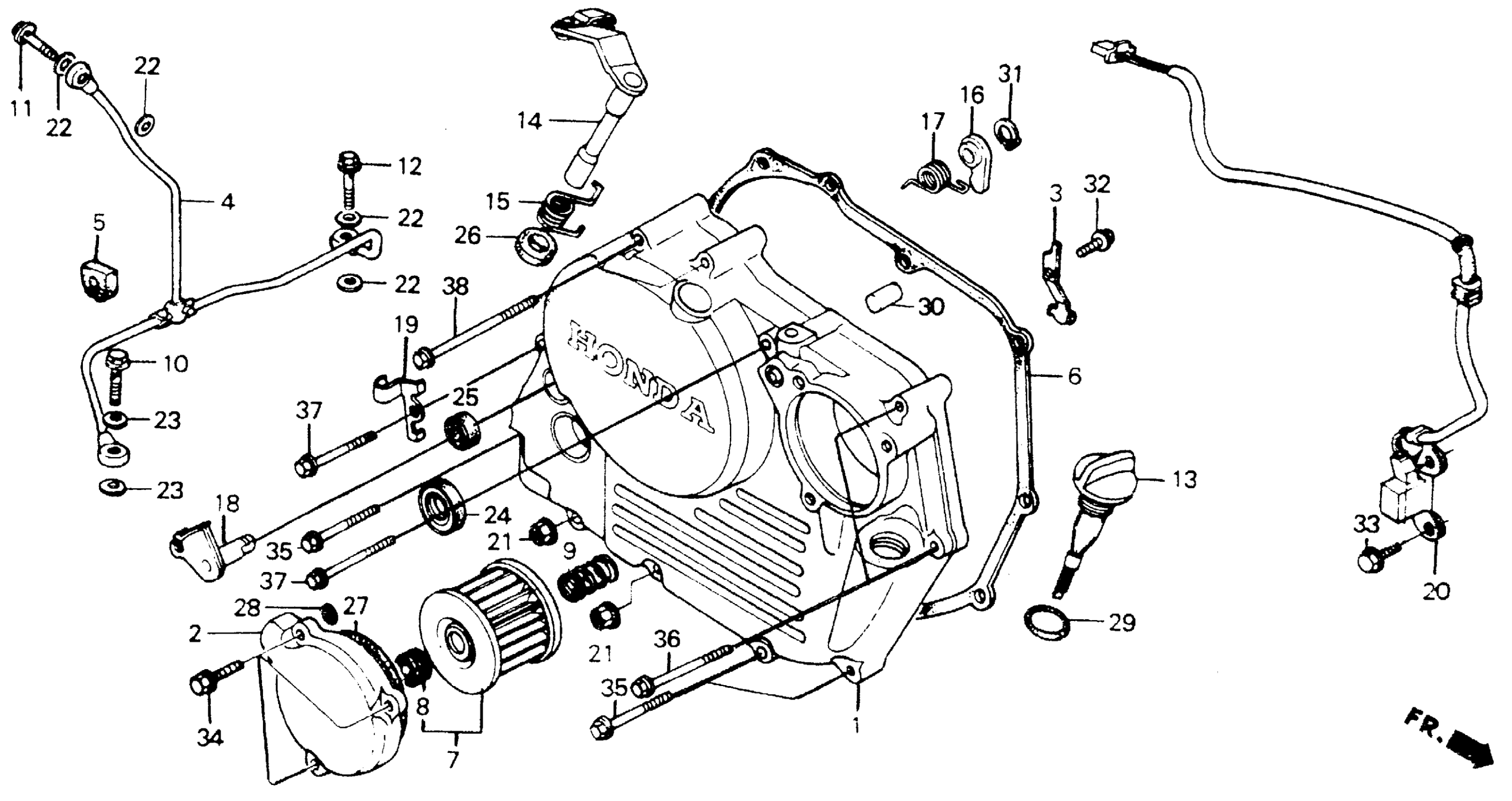

Honda XR200RA (84) MOTORCYCLE, JPN, VIN# JH2ME050-EK000006 TO JH2ME050-EK005349 RIGHT CRANKCASE COVER 84-85 Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-KK0-000

Unavailable

2

COVER, OIL FILTER (NOT AVAILABLE)

11333-KK0-000

Unavailable

3

PLATE, OIL SEAL SETTING (NOT AVAILABLE)

11334-KK0-000

Unavailable

4

PIPE, OIL PASSAGE (NOT AVAILABLE)

11335-KK0-000

Unavailable

5

RUBBER, OIL PASSAGE PIPE

11338-KK0-000

Unavailable

6

GASKET, R. CRANKCASE COVER This part replaces 11394-KK0-000.

11394-KZ1-920

$20.04

6

GASKET, R. CRANKCASE COVER

11394-KZ1-920

$20.04

7

ELEMENT, OIL FILTER This part replaces 15410-KF0-305.

15410-KF0-315

$5.54

7

ELEMENT, OIL FILTER

15410-KF0-315

$5.54

7

ELEMENT, OIL FILTER This part replaces 15412-KF0-010.

15410-KF0-315

$5.54

8

RUBBER, FILTER

15413-MC8-000

$3.35

9

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.24

10

BOLT, FLANGE (7X25)

15533-KK0-000

$7.20

11

BOLT, FLANGE (7X25)

15533-KK0-000

$7.20

12

BOLT, FLANGE (7X25)

15533-KK0-000

$7.20

13

DIPSTICK, OIL (NOT AVAILABLE) This part replaces 15650-KK0-000.

15650-KT1-000

Unavailable

13

DIPSTICK, OIL

15650-KT1-000

Unavailable

14

LEVER, CLUTCH This part replaces 22810-KK0-000.

22810-KR6-000

Unavailable

15

SPRING, CLUTCH LEVER (NOT AVAILABLE)

22815-KK0-000

Unavailable

16

FOLLOWER, CAM

28271-428-000

Unavailable

17

SPRING, FOLLOWER

28274-KK0-000

Unavailable

18

SHAFT, FOLLOWER

28280-KK0-000

Unavailable

19

RECEIVER B, DECOMPRESSION CABLE (NOT AVAILABLE)

28287-KK0-000

Unavailable

20

GENERATOR ASSY., PULSE This part replaces 30300-KK0-154.

30300-KK0-164

Unavailable

21

NUT, U (6MM)

90301-MG3-000

$6.91

22

WASHER, SEALING (7MM)

90441-MC0-000

$2.39

23

WASHER, SEALING (7MM)

90441-MC0-000

$2.39

24

OIL SEAL (18X29X7) (ARAI)

91202-KK0-003

$9.13

24

OIL SEAL (18X29X7) (ARAI) This part replaces 91202-KK0-005.

91202-KK0-003

$9.13

25

OIL SEAL (12X22X5)

91201-965-000

$4.06

25

OIL SEAL (12X22X5) This part replaces 91203-MC8-003.

91201-965-000

$4.06

26

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

27

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.47

28

O-RING (7X1.7) This part replaces 91303-KE7-003.

91312-107-000

$3.18

28

O-RING (7X1.7)

91312-107-000

$3.18

29

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

30

PIN, DOWEL (8X14)

94301-08140

$2.25

31

CIRCLIP, OUTER (10MM)

94510-10000

$1.49

32

BOLT, FLANGE (6X10) This part replaces 96000-06010-00.

96001-06010-00

$1.55

32

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

33

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

33

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

34

BOLT, FLANGE (6X25) This part replaces 96000-06025-07.

96001-06025-07

$1.49

34

BOLT, FLANGE (6X25)

96001-06025-07

$1.49

35

BOLT, FLANGE (6X28) This part replaces 96000-06028-07.

96001-06028-07

$1.51

35

BOLT, FLANGE (6X28)

96001-06028-07

$1.51

36

BOLT, FLANGE (6X40) This part replaces 96000-06040-07.

96001-06040-07

$1.49

36

BOLT, FLANGE (6X40)

96001-06040-07

$1.49

37

BOLT, FLANGE (6X45) This part replaces 96000-06045-07.

96001-06045-07

$2.16

37

BOLT, FLANGE (6X45)

96001-06045-07

$2.16

38

BOLT, FLANGE (6X60) This part replaces 96000-06060-07.

96001-06060-07

$2.07

38

BOLT, FLANGE (6X60)

96001-06060-07

$2.07
