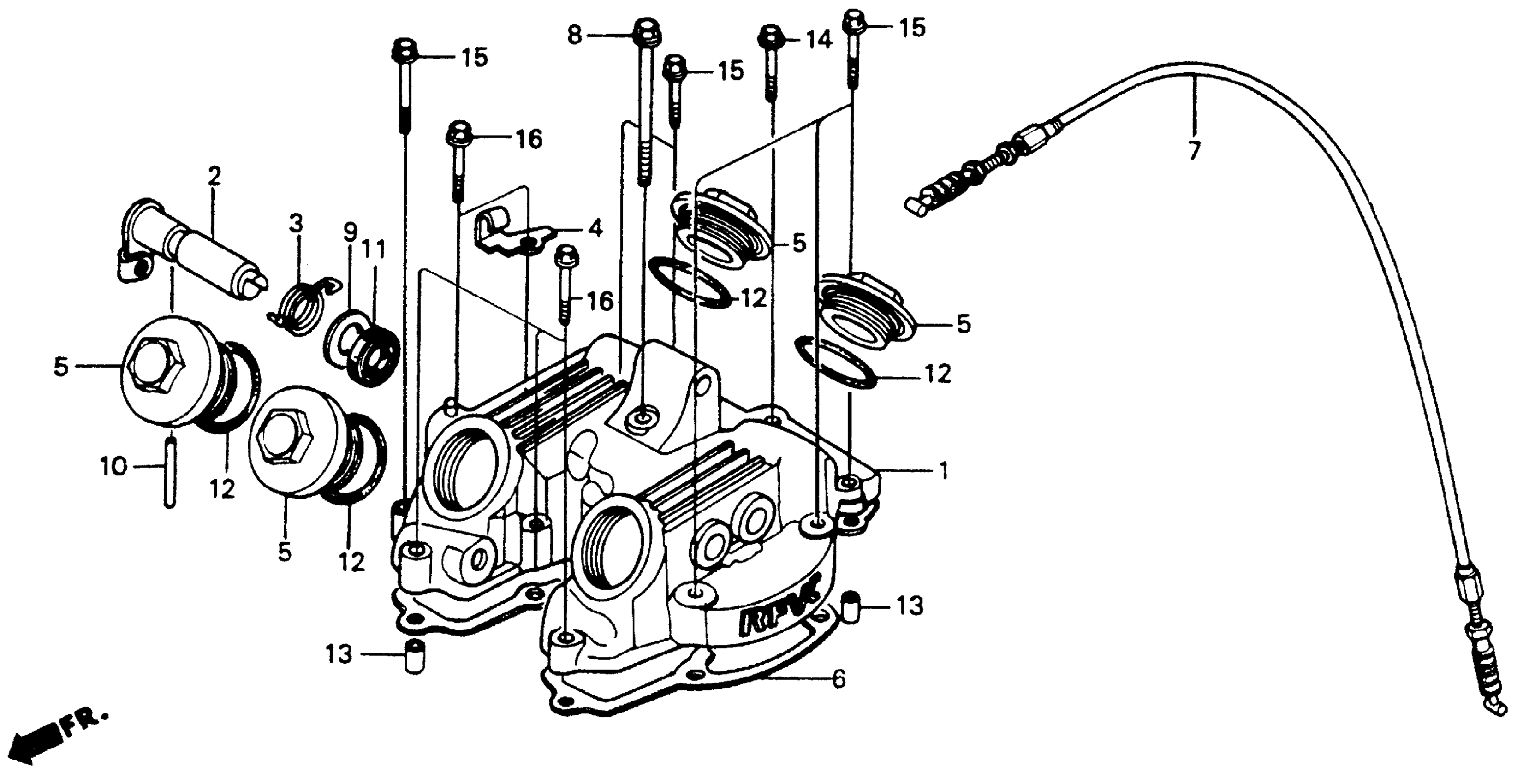

Honda XR200RA (84) MOTORCYCLE, JPN, VIN# JH2ME050-EK000006 TO JH2ME050-EK005349 HEAD COVER 84-85 Diagram

COVER, CYLINDER HEAD This part replaces 12311-KK0-000.

12311-KK0-305

Unavailable

LIFTER, VALVE

12320-KK0-000

Unavailable

SPRING, VALVE LIFTER

12321-KK0-000

Unavailable

RECEIVER A, DECOMPRESSION

12323-KK0-000

Unavailable

CAP, TAPPET ADJUSTING HOLE This part replaces 12361-KK0-000.

12361-HP5-600

$18.50

GASKET, HEAD COVER This part replaces 12391-KK1-003.

12391-KR6-010

$45.81

GASKET, HEAD COVER

12391-KR6-010

$45.81

CABLE, DECOMPRESSION (NOT AVAILABLE)

28291-KK0-000

Unavailable

BOLT, FLANGE (8X75)

90017-KE7-000

Unavailable

WASHER (11MM)

90408-KK0-000

$2.81

PIN, DOWEL (4X37.5)

91101-KK0-000

Unavailable

OIL SEAL (11X16X5) (ARAI)

91202-MG3-003

$5.12

OIL SEAL (11X16X5) (ARAI) This part replaces 91202-MG3-005.

91202-MG3-003

$5.12

O-RING (35.5X3) (NOK)

91301-428-003

$2.21

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X25) This part replaces 96000-06025-07.

96001-06025-07

$1.49

BOLT, FLANGE (6X25)

96001-06025-07

$1.49

BOLT, FLANGE (6X32) This part replaces 96000-06032-07.

96001-06032-07

$1.54

BOLT, FLANGE (6X32)

96001-06032-07

$1.54

BOLT, FLANGE (6X40) This part replaces 96000-06040-07.

96001-06040-07

$1.49

BOLT, FLANGE (6X40)

96001-06040-07

$1.49
