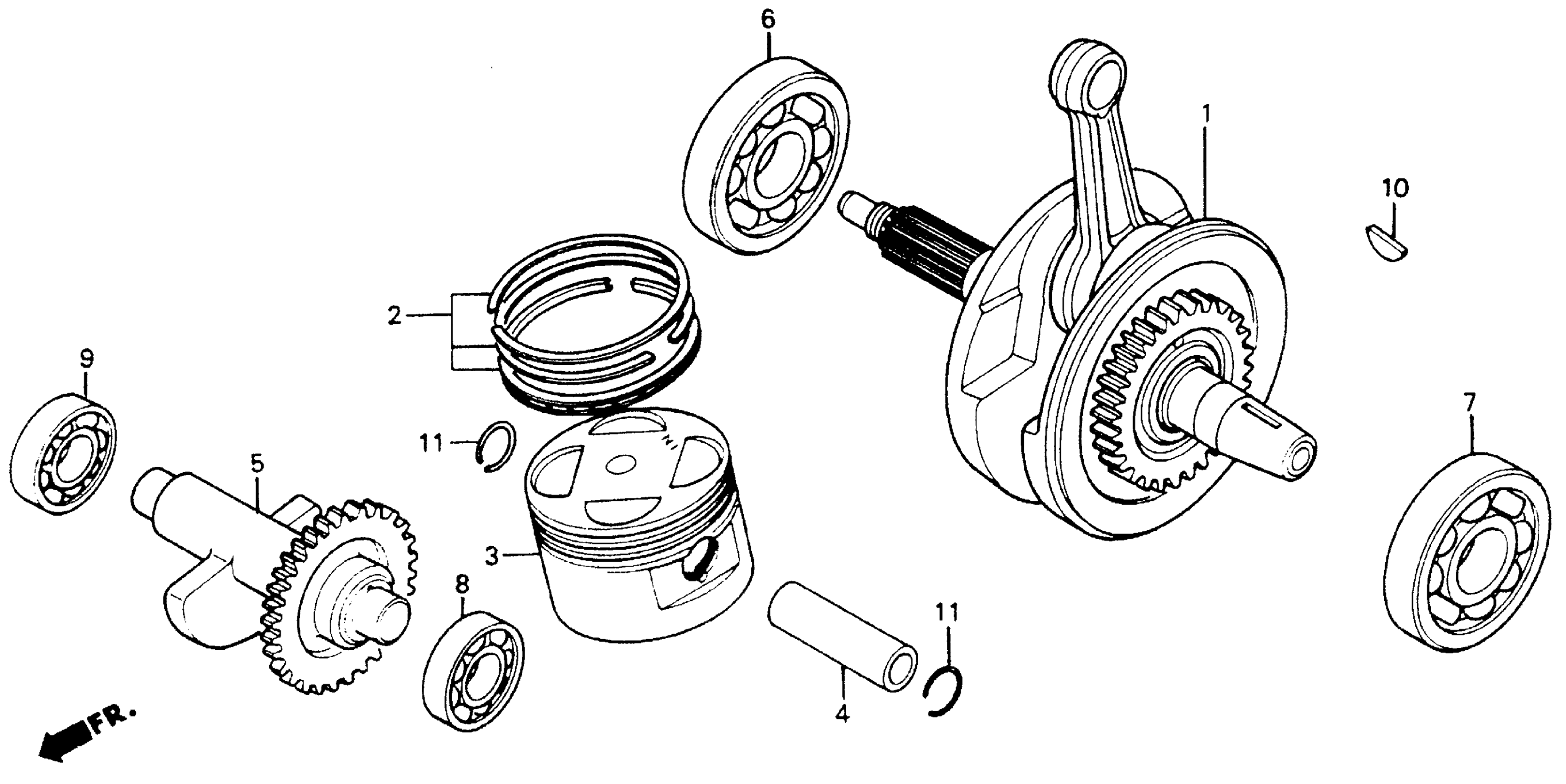

Honda XR200RA (84) MOTORCYCLE, JPN, VIN# JH2ME050-EK000006 TO JH2ME050-EK005349 CRANKSHAFT 84-85 Diagram

CRANKSHAFT (NOT AVAILABLE)

13000-KK0-000

Unavailable

RING SET, PISTON (STD) (NOT AVAILABLE)

13011-KK0-305

Unavailable

RING SET, PISTON (OVER SIZE) (0.25) (NOT AVAILABLE) | (Optional).

13012-KK0-305

Unavailable

RING SET, PISTON (OVER SIZE) (0.50) (NOT AVAILABLE) | (Optional).

13013-KK0-305

Unavailable

RING SET, PISTON (OVER SIZE) (0.75) (NOT AVAILABLE) | (Optional).

13014-KK0-305

Unavailable

RING SET, PISTON (1.00) (NOT AVAILABLE) | (Optional).

13015-KK0-305

Unavailable

PISTON (STD)

13101-KK0-003

Unavailable

PISTON (OVER SIZE) (0.25) (NOT AVAILABLE) | (Optional).

13102-KK0-305

$86.69

PISTON (OVER SIZE) (0.50) (NOT AVAILABLE) | (Optional).

13103-KK0-305

Unavailable

PISTON (OVER SIZE) (0.75) (NOT AVAILABLE) | (Optional).

13104-KK0-305

Unavailable

PISTON (1.00) (NOT AVAILABLE) | (Optional).

13105-KK0-305

Unavailable

PIN, PISTON

13111-KK0-000

$31.11

SHAFT, BALANCER (34T) (NOT AVAILABLE)

13420-KK1-000

Unavailable

BEARING, RADIAL BALL (63/28) This part replaces 91001-KK0-003.

91009-HC0-003

$31.43

BEARING, RADIAL BALL (63/28) This part replaces 91001-KY7-003.

91009-HC0-003

$31.43

BEARING, RADIAL BALL (63/28)

91009-HC0-003

$31.43

BEARING, BALL (63/28)

91002-KK0-003

Unavailable

BEARING, RADIAL BALL (6301) This part replaces 91006-KF0-000.

91006-KF0-003

Unavailable

BEARING, RADIAL BALL (6202) (NTN)

91009-KJ1-003

$15.44

BEARING, RADIAL BALL (6202) This part replaces 91009-KK1-003.

91009-KJ1-003

$15.44

KEY, WOODRUFF (25X14)

94401-25140

$1.75

CLIP, PISTON PIN (17MM)

94601-17000

$1.56
