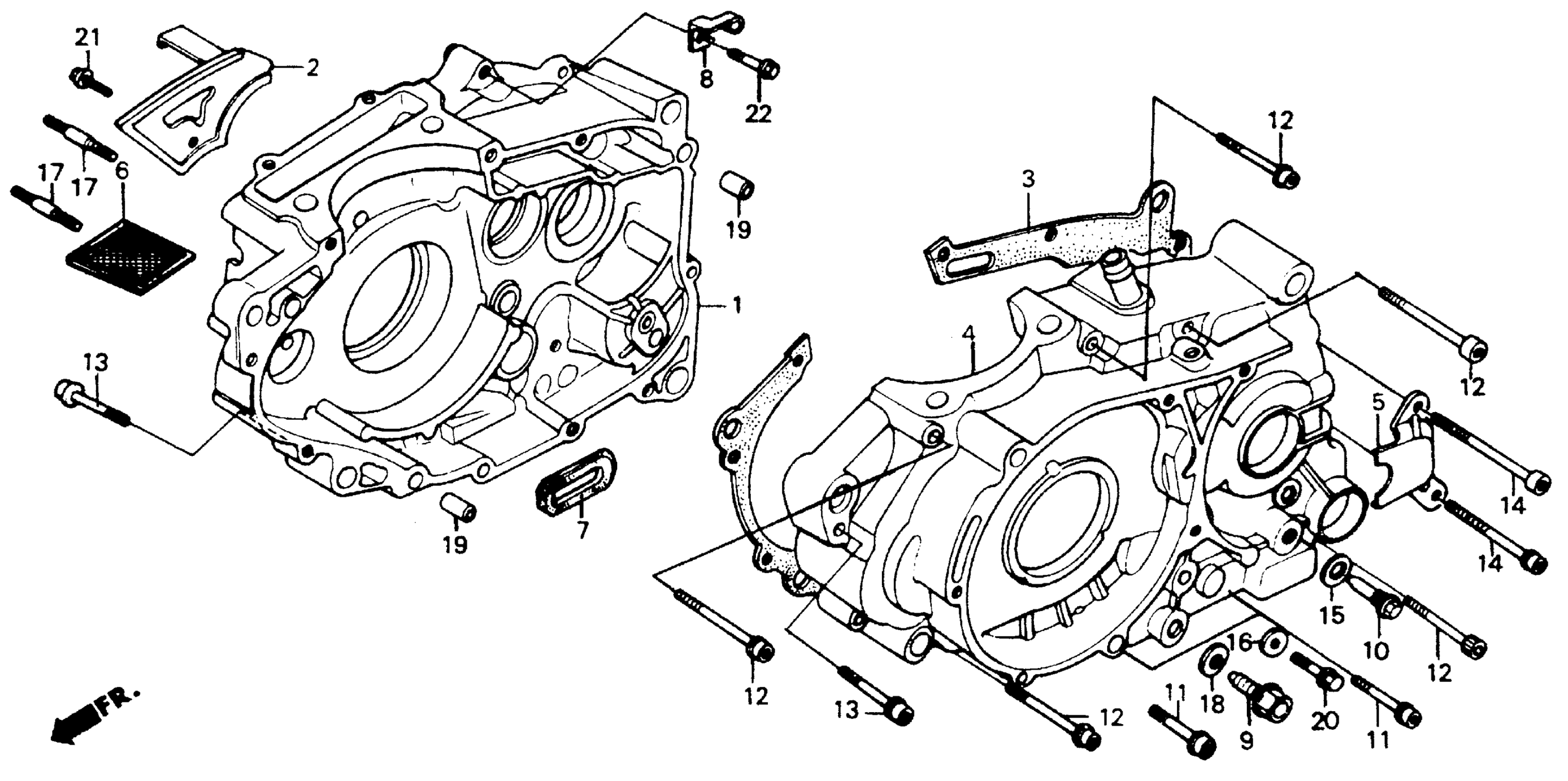

Honda XR200RA (84) MOTORCYCLE, JPN, VIN# JH2ME050-EK000006 TO JH2ME050-EK005349 CRANKCASE 84-85 Diagram

#

Description
Price

1

CRANKCASE, R. (NOT AVAILABLE) | Use up to Engine SN 5007472 This part replaces 11100-KK0-000.

11100-KK0-010

Unavailable

1

CRANKCASE, R. (NOT AVAILABLE) | Use from Engine SN 5007473

11100-KK0-010

Unavailable

2

PLATE, BREATHER (NOT AVAILABLE)

11110-KK0-000

Unavailable

3

GASKET, CRANKCASE This part replaces 11191-KK0-000.

11191-KK0-306

Unavailable

4

CRANKCASE, L. (NOT AVAILABLE)

11200-KK0-000

Unavailable

5

COVER, COUNTERSHAFT (NOT AVAILABLE)

11353-KK0-000

Unavailable

6

SCREEN, OIL FILTER

15421-KK0-000

$7.70

8

RECEIVER, CLUTCH CABLE (NOT AVAILABLE)

22825-KK0-000

Unavailable

9

BOLT, SPECIAL (12MM) This part replaces 90015-KA3-710.

90015-KA3-711

$6.51

9

BOLT, SPECIAL (12MM)

90015-KA3-711

$6.51

10

BOLT, GEARSHIFT RETURN SPRING STOPPER This part replaces 90021-KK0-003.

90021-KW3-010

$7.36

10

BOLT, GEARSHIFT RETURN SPRING STOPPER This part replaces 90021-KW3-000.

90021-KW3-010

$7.36

10

BOLT, GEARSHIFT RETURN SPRING STOPPER

90021-KW3-010

$7.36

11

BOLT, FLANGE SOCKET (6X55)

90091-KK1-000

Unavailable

12

BOLT, FLANGE SOCKET (6X70)

90092-KK1-000

Unavailable

13

BOLT, FLANGE SOCKET (6X35)

90092-MG3-000

$3.69

14

BOLT, FLANGE SOCKET (6X90)

90093-KK1-000

Unavailable

15

WASHER, SEALING (10MM)

90441-329-000

$3.60

17

BOLT, STUD (6X25)

92900-06025-0B

$1.73

18

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

19

PIN, DOWEL (8X14)

94301-08140

$2.25

21

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

21

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

22

BOLT, FLANGE (6X16) This part replaces 96000-06016-07.

96001-06016-07

$1.49

22

BOLT, FLANGE (6X16)

96001-06016-07

$1.49
