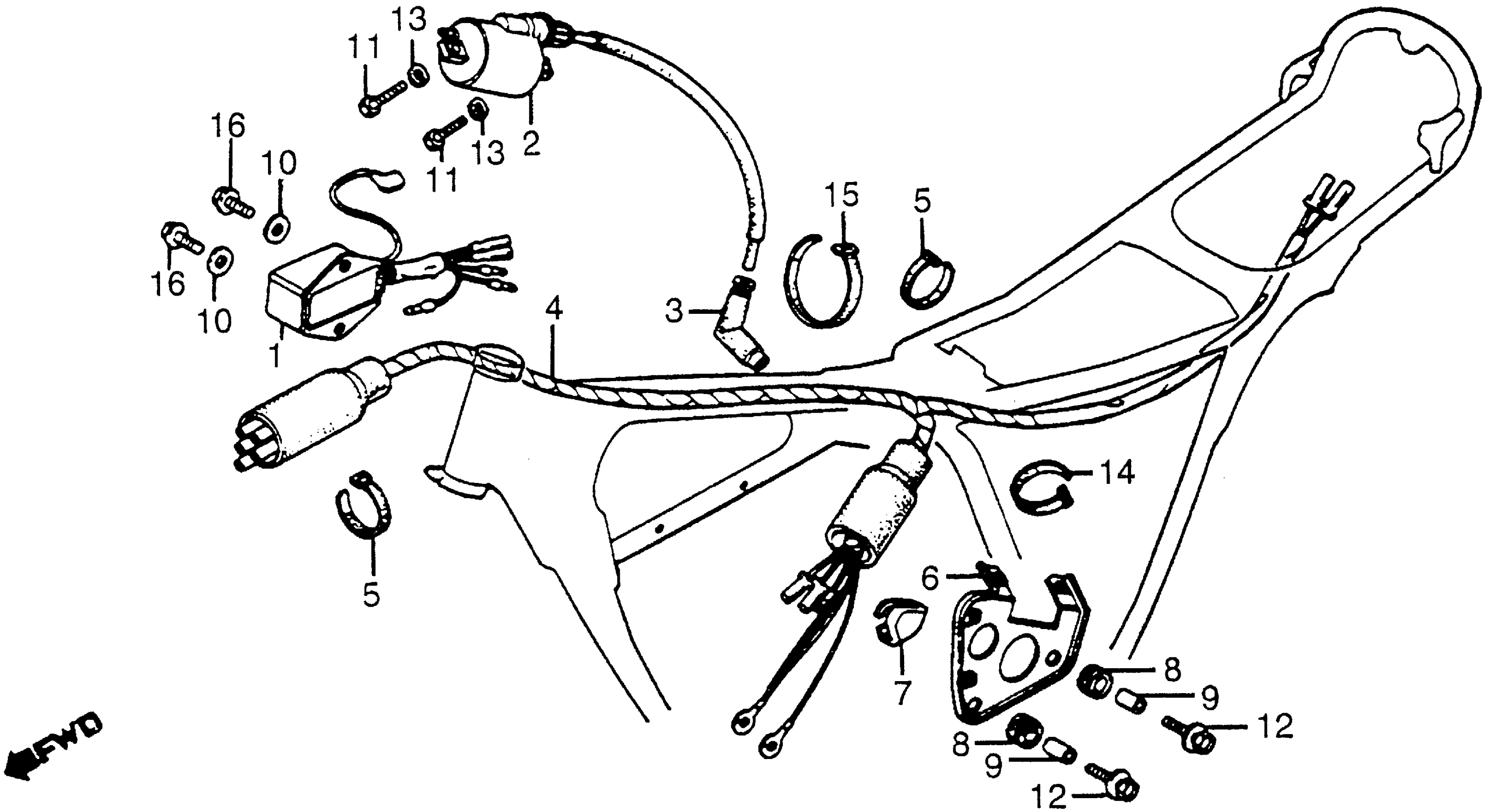

Honda XR200RA (83) MOTORCYCLE, JPN, VIN# JH2ME040-DK200001 WIRE HARNESS + C.D.I. UNIT Diagram

MODULE, IGN CONT This part replaces 30400-437-013.

30400-437-023

Unavailable

COIL ASSY., IGNITION This part replaces 30500-KA2-000.

30500-VM3-405

Unavailable

COIL ASSY., IGNITION

30500-VM3-405

Unavailable

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-KA2-003.

30700-MA0-163

$22.32

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-MA0-153.

30700-MA0-163

$22.32

CAP ASSY., NOISE SUPPRESSOR

30700-MA0-163

$22.32

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-MC4-153.

30700-MA0-163

$22.32

WIRE HARNESS (NOT AVAILABLE)

32100-KA2-680

Unavailable

BAND B1, CABLE

32161-404-000

$2.23

PLATE, ELECTRIC BASE (NOT AVAILABLE)

50301-KA2-000

Unavailable

CAP, ELECTRIC PLATE BOLT (NOT AVAILABLE)

50302-KA2-000

Unavailable

RUBBER A, RR. FENDER

80105-061-000

$4.01

COLLAR, ELECTRIC PLATE (NOT AVAILABLE)

84706-404-000

Unavailable

WASHER (6MM)

90485-286-000

$1.55

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

BOLT-WASHER (6X20)

93404-06020-00

$1.55

BOLT-WASHER (6X20) This part replaces 93494-06020-00.

93404-06020-00

$1.55

WASHER, SPRING (5MM)

94111-05000

$1.49

BAND B1, CABLE

32161-404-000

$2.23

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

BAND A3, CABLE

95014-61300

$1.97

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

BOLT, FLANGE (6X10)

95701-06010-08

$1.61
