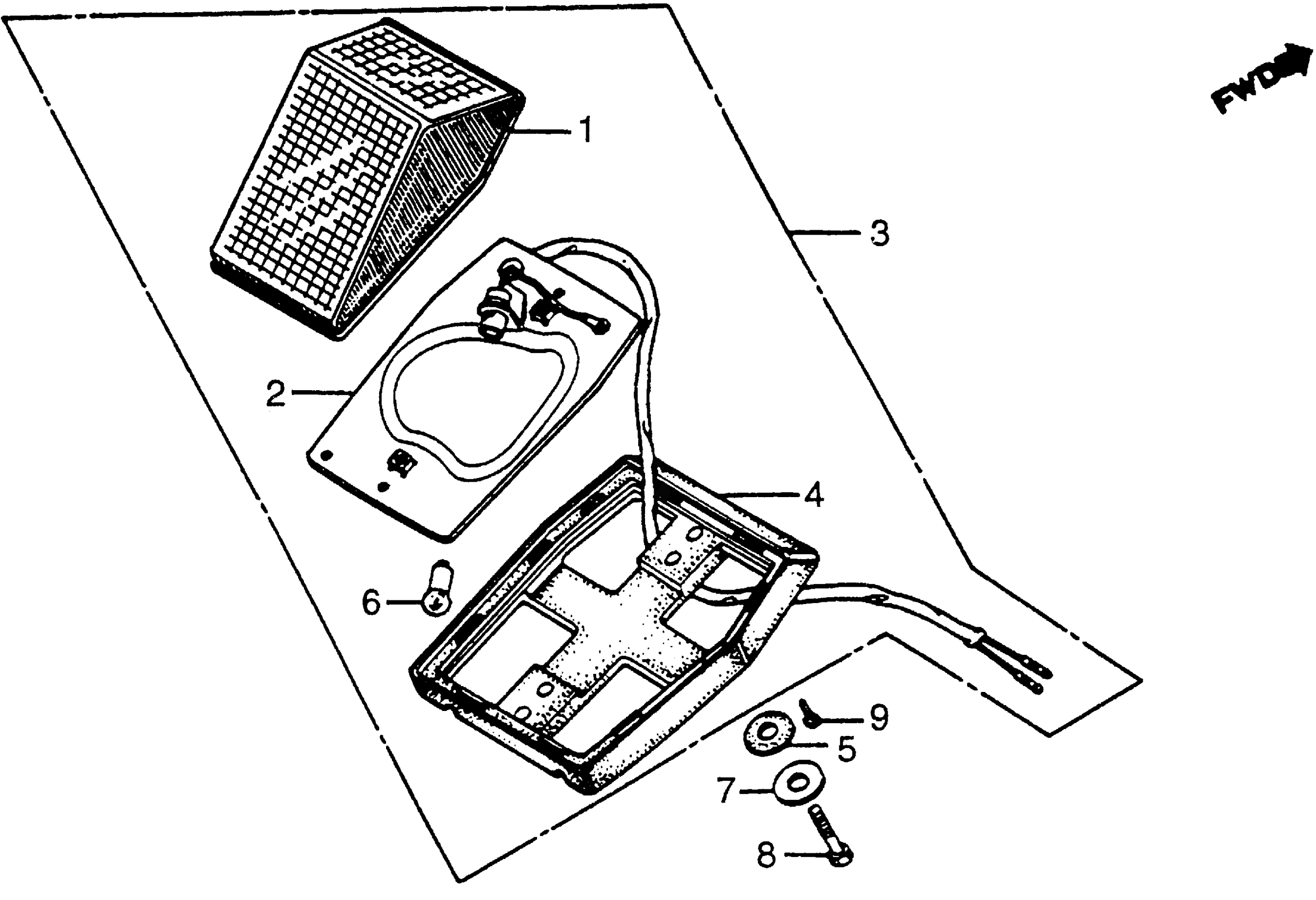

Honda XR200RA (83) MOTORCYCLE, JPN, VIN# JH2ME040-DK200001 TAILLIGHT Diagram

#

Description

Price

1

LENS, TAILLIGHT

33141-MA0-003

Unavailable

2

BASE, TAILLIGHT (NOT AVAILABLE)

33142-MA0-003

Unavailable

3

TAILLIGHT UNIT (6V3W) (NOT AVAILABLE)

33701-MA0-003

Unavailable

4

BODY, TAILLIGHT (NOT AVAILABLE)

33702-MA0-003

Unavailable

5

RUBBER, TAILLIGHT (NOT AVAILABLE)

33703-MA0-000

Unavailable

6

BULB, DASH (6V3W) (STANLEY)

34902-202-000

$2.85

7

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$0.71

7

WASHER, PLAIN (6MM)

94103-06800

$0.71

8

BOLT, RECESSED (6X28) This part replaces 92300-06028-0A.

92301-06028-0A

Unavailable

8

BOLT, RECESSED (6X28)

92301-06028-0A

Unavailable

9

SCREW, TAPPING (3X12)

93901-22310

$0.75
