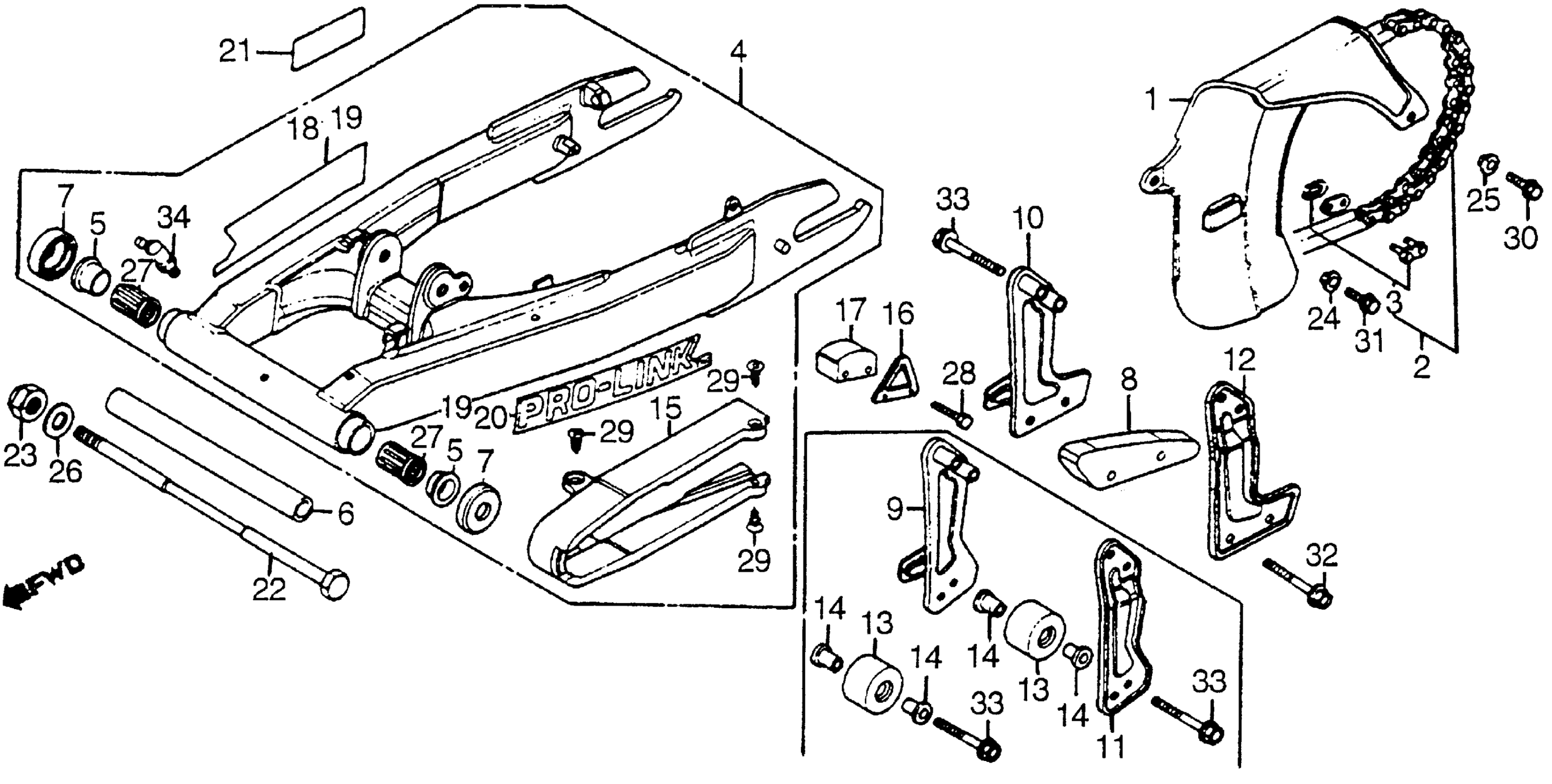

Honda XR200RA (83) MOTORCYCLE, JPN, VIN# JH2ME040-DK200001 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-MA0-000

Unavailable

2

CHAIN, DRIVE (520K0-108FJ)

405W3-MN1-505

Unavailable

2

CHAIN, DRIVE (520K0-108FJ) This part replaces 40530-KA2-771.

405W3-MN1-505

Unavailable

3

MASTER LINK

40531-MA0-015

Unavailable

4

SWINGARM ASSY., RR.

52100-KA2-770

Unavailable

5

BUSH, PIVOT THRUST

52109-430-300

$16.01

6

COLLAR, SWINGARM CENTER

52141-KA2-000

Unavailable

7

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$17.31

7

CAP, DUST SEAL (NOK) This part replaces 52144-286-000.

52144-356-005

$17.31

7

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

7

CAP, DUST SEAL (NOK) This part replaces 52144-356-003.

52144-356-005

$17.31

7

CAP, DUST SEAL (NOK)

52144-356-005

$17.31

8

SLIDER, CHAIN GUIDE

52147-MA0-770

Unavailable

10

GUIDE, R. CHAIN (NOT AVAILABLE)

52156-MA0-770

Unavailable

12

GUIDE, L. CHAIN

52157-MA0-770

Unavailable

15

SLIDER, CHAIN (NOT AVAILABLE)

52170-KA2-000

Unavailable

16

PLATE, TENSIONER *NH1* (BLACK)

52182-427-910ZA

Unavailable

17

SLIPPER, TENSIONER

52183-435-760

Unavailable

18

EMBLEM, R. SWINGARM

87121-KA2-770

Unavailable

20

EMBLEM, L. SWINGARM (NOT AVAILABLE)

87122-KA2-770

Unavailable

21

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

22

BOLT, SWINGARM PIVOT (NOT AVAILABLE) This part replaces 90121-KA2-000.

90121-KF0-000

Unavailable

23

NUT, AXLE (14MM) This part replaces 90305-197-003.

90305-197-013

$6.14

23

NUT, AXLE (14MM)

90305-197-013

$6.14

24

WASHER, FR. COVER SETTING

90501-124-000

$3.74

25

WASHER (6X9)

90513-323-000

$1.84

26

WASHER (14MM) (NOT AVAILABLE)

90600-422-000

Unavailable

27

BEARING, RR. SWINGARM PIVOT (TOYO)

91071-MA0-003

$33.10

27

BEARING, RR. SWINGARM PIVOT (TOYO) This part replaces 91071-MA0-004.

91071-MA0-003

$33.10

28

BOLT, HEX. (5X40) This part replaces 92000-05040-0A.

92101-05040-0A

Unavailable

28

BOLT, HEX. (5X40)

92101-05040-0A

Unavailable

29

SCREW, TAPPING (6X12)

93901-26110

$1.49

30

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

30

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

31

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

31

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

31

BOLT, FLANGE (6X16) This part replaces 95900-06016-08.

95701-06016-08

$1.49

32

BOLT, FLANGE (6X35) This part replaces 95700-06035-08.

95701-06035-08

$1.79

32

BOLT, FLANGE (6X35)

95701-06035-08

$1.79

33

BOLT, FLANGE (8X40) This part replaces 95700-08040-08.

95701-08040-08

$2.28

33

BOLT, FLANGE (8X40)

95701-08040-08

$2.28

34

FITTING, GREASE (C.76)

96201-60000

$2.87
