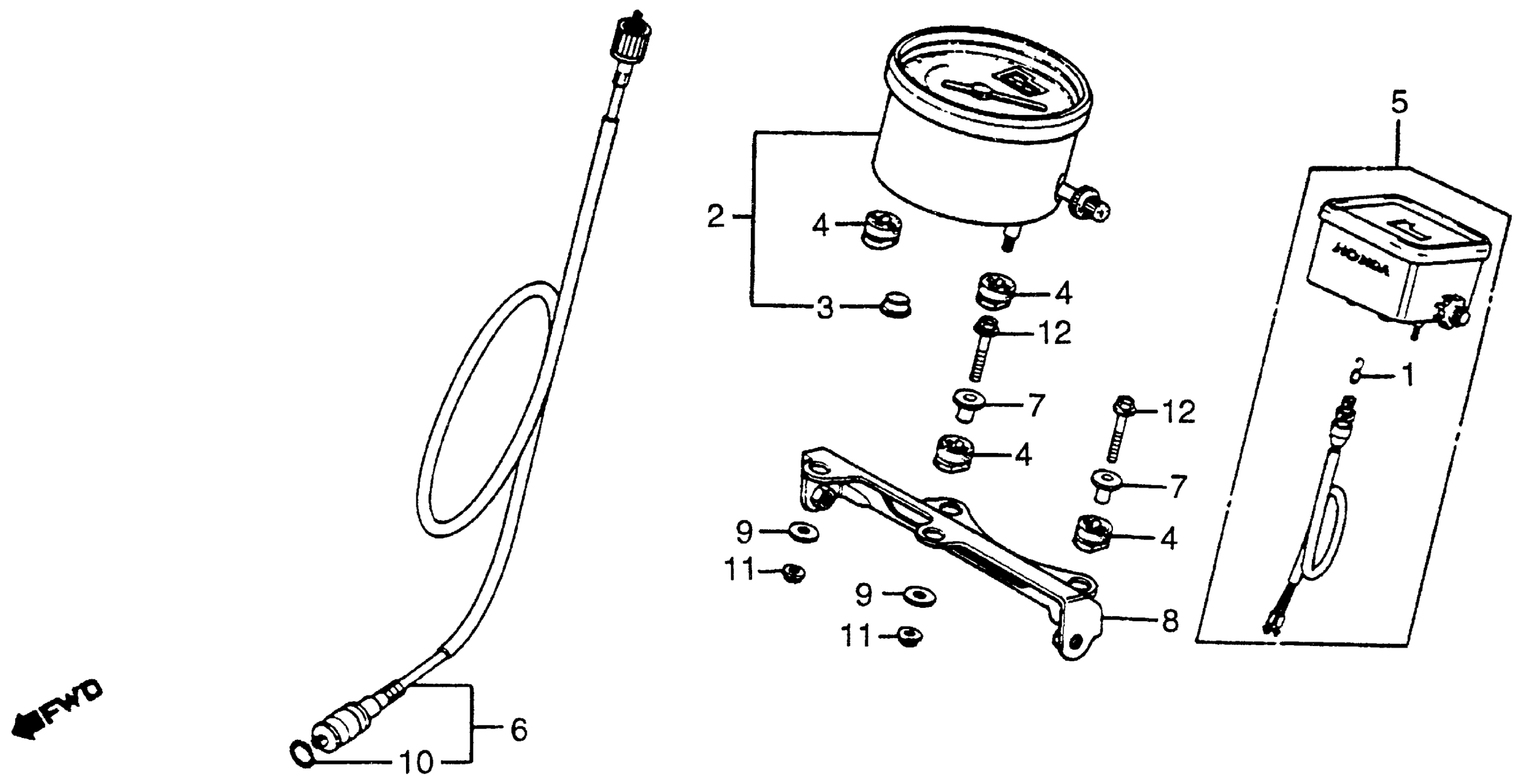

Honda XR200RA (83) MOTORCYCLE, JPN, VIN# JH2ME040-DK200001 SPEEDOMETER Diagram

#

Description

Price

1

BULB, SPEEDOMETER (6V1.5W) (STANLEY) | (Optional).

34908-001-000

$5.19

2

SPEEDOMETER ASSY. (NOT AVAILABLE)

37200-MA0-671

Unavailable

3

CAP (NOT AVAILABLE)

37221-MA0-008

Unavailable

4

RUBBER, SPEEDOMETER SETTING

37242-429-000

Unavailable

5

METER ASSY., TRIP (MPH) (NOT AVAILABLE) | (Optional).

37270-429-811

Unavailable

6

CABLE ASSY., SPEEDOMETER This part replaces 44830-KA2-680.

44830-MF9-010

Unavailable

6

CABLE ASSY., SPEEDOMETER This part replaces 44830-MF9-000.

44830-MF9-010

Unavailable

7

COLLAR (6.3X13)

50324-425-010

$4.51

8

STAY, HEADLIGHT

61310-MA0-000

Unavailable

9

WASHER, SPECIAL (6MM)

90438-671-000

$4.38

11

NUT, FLANGE (6MM)

94050-06000

$0.59

12

BOLT, FLANGE (6X25)

95700-06025-08

$1.64

12

BOLT, FLANGE (6X25)

95701-06025-08

$1.64
