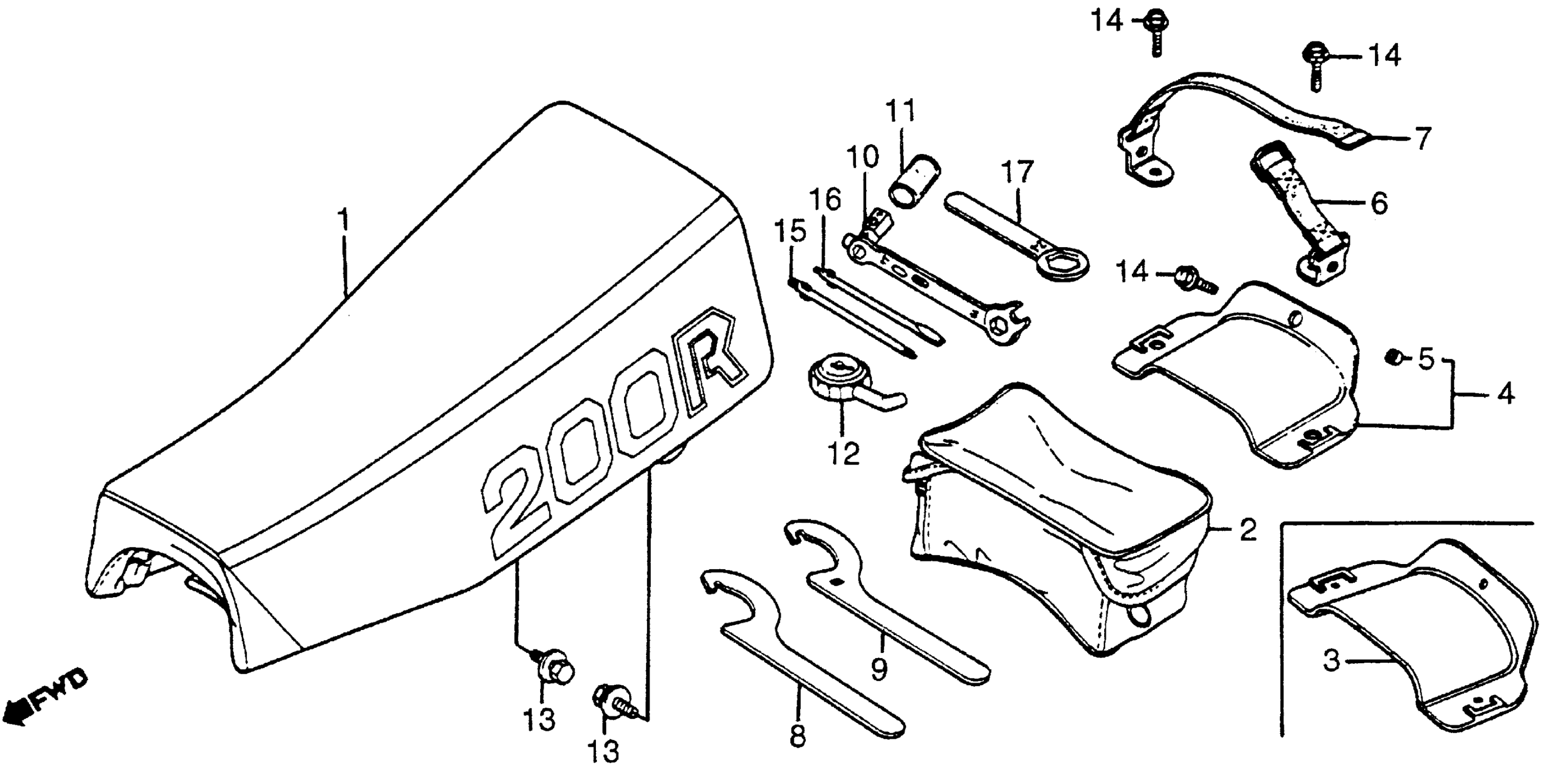

Honda XR200RA (83) MOTORCYCLE, JPN, VIN# JH2ME040-DK200001 SEAT Diagram

#

Description
Price

1

SEAT This part replaces 77200-KA2-770.

77200-KA2-405

Unavailable

2

BAG, TOOL (NOT AVAILABLE)

83501-KA2-770

Unavailable

4

PLATE, TOOL BAG (LOWER)

83502-KA2-680

Unavailable

5

COLLAR, TOOL BAG PLATE

83503-KA2-680

Unavailable

6

BAND A, CARRIER (NOT AVAILABLE)

83505-MA0-000

Unavailable

7

BAND B, CARRIER (NOT AVAILABLE)

83506-MA0-000

Unavailable

8

SPANNER A, PIN | (Optional). This part replaces 89201-KA4-810.

89201-KA4-811

$44.00

8

SPANNER A, PIN | (Optional).

89201-KA4-811

$44.00

9

SPANNER B, PIN | (Optional). This part replaces 89202-KA4-810.

89202-KA4-811

$42.90

9

SPANNER B, PIN | (Optional).

89202-KA4-811

$42.90

10

WRENCH, EYE (24MM) (NOT AVAILABLE)

89225-MA0-770

Unavailable

11

PROTECTOR, EYE WRENCH (NOT AVAILABLE)

89226-446-770

Unavailable

12

GAUGE, AIR PRESSURE | (Optional).

89301-KA4-811

$76.25

13

BOLT-WASHER (8X16)

93404-08016-08

$1.83

13

BOLT-WASHER (8X16) This part replaces 93494-08016-08.

93404-08016-08

$1.83

14

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

14

BOLT, FLANGE (6X14)

95701-06014-08

$1.55
