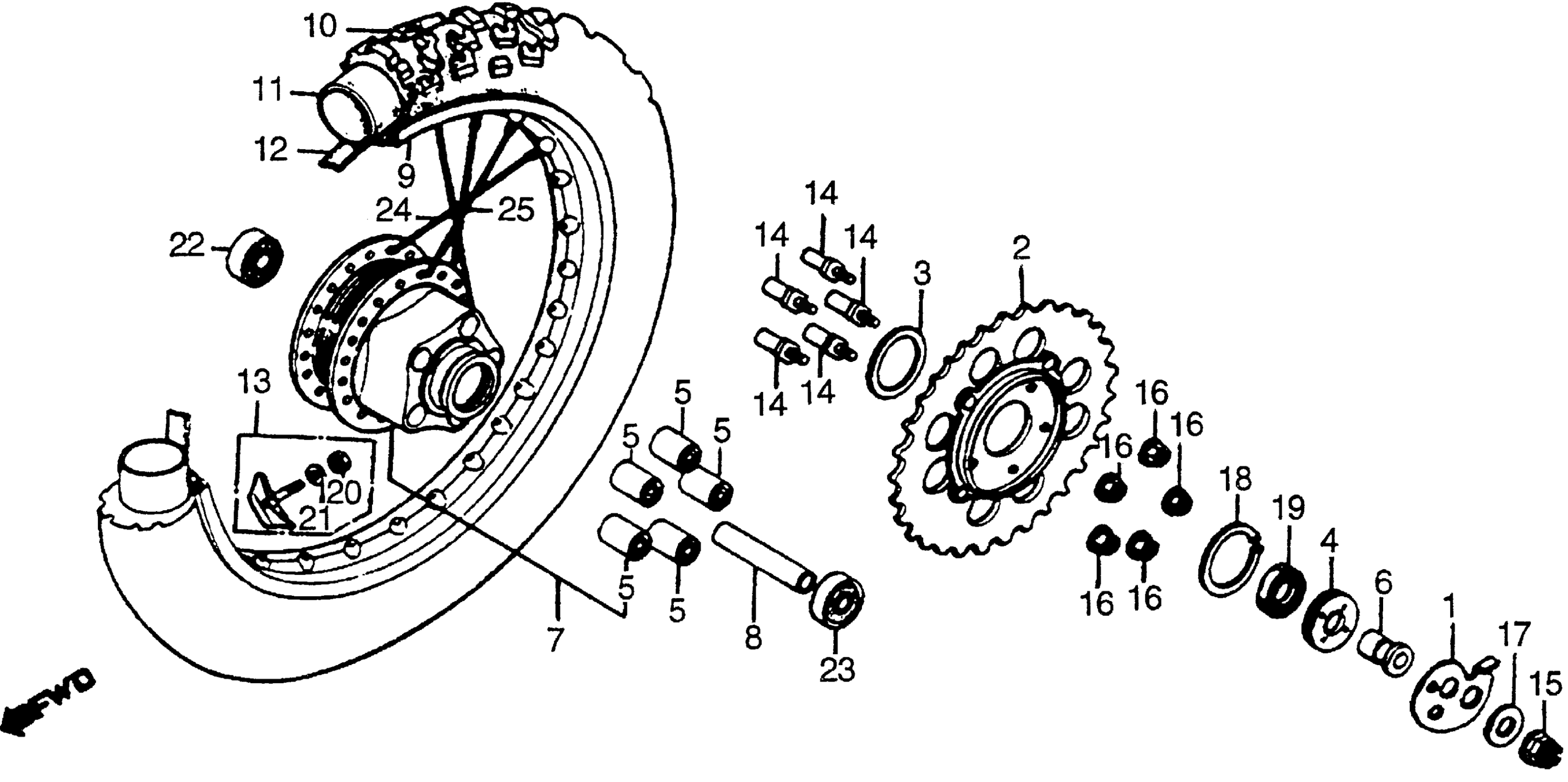

Honda XR200RA (83) MOTORCYCLE, JPN, VIN# JH2ME040-DK200001 REAR WHEEL Diagram

#

Description
Price

1

ADJUSTER, L. CHAIN

40545-KB7-000

Unavailable

1

ADJUSTER, L. CHAIN This part replaces 40545-MA0-000.

40545-KB7-000

Unavailable

2

SPROCKET, FINAL DRIVEN (50J)

41200-KA2-000

Unavailable

3

SPACER, DRIVEN SPROCKET (NOT AVAILABLE)

41212-KA2-680

Unavailable

4

RETAINER, BEARING

41231-429-000

$30.89

5

BUSH, RR. WHEEL DAMPER

41241-307-010

$15.06

6

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42312-KA2-000

Unavailable

7

HUB, RR. WHEEL (NOT AVAILABLE)

42610-KA2-000

Unavailable

8

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-KA2-000

Unavailable

9

RIM, RR. WHEEL

42701-GM7-641

Unavailable

9

RIM, RR. WHEEL This part replaces 42701-KA2-771.

42701-GM7-641

Unavailable

10

TIRE, RR. (4.10-18) (BS) (NOT AVAILABLE)

42711-KA2-003

Unavailable

10

TIRE, RR. (4.10-18) (BS) (NOT AVAILABLE) This part replaces 42711-KA2-005.

42711-KA2-003

Unavailable

11

TUBE, TIRE This part replaces 08400-30000.

42712-KT1-673

$37.60

11

TUBE, TIRE (3.50-18) This part replaces 08400-44600.

42712-446-631

Unavailable

11

TUBE, TIRE This part replaces 42712-KA3-711.

42712-KT1-673

$37.60

11

TUBE, TIRE This part replaces 42712-KA5-681.

42712-KT1-673

$37.60

11

TUBE, TIRE This part replaces 42712-KS7-003.

42712-KT1-673

$37.60

11

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

11

TUBE, TIRE (3.50-18) This part replaces 42712-287-003.

42712-446-631

Unavailable

11

TUBE, TIRE This part replaces 42712-430-701.

42712-KT1-673

$37.60

11

TUBE, TIRE This part replaces 42712-446-003.

42712-KT1-673

$37.60

11

TUBE, TIRE (3.50-18)

42712-446-631

Unavailable

12

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-268-003.

42713-304-003

$6.69

12

FLAP, TIRE (1.85X18) (INOUE)

42713-446-631

Unavailable

13

STOPPER, BEAD (1.85)

42715-KA2-680

$32.27

14

BOLT, DRIVEN SPROCKET FIXING

90128-382-670

$6.52

14

BOLT, DRIVEN SPROCKET FIXING This part replaces 90128-446-770.

90128-382-670

$6.52

15

NUT, AXLE (16MM)

90305-MA0-003

$7.31

16

NUT, FLANGE (10MM)

90308-382-670

$4.07

17

WASHER, RR. AXLE

90504-MA0-000

$11.54

18

CIRCLIP (OUTER) (63MM)

90664-KA2-000

$10.51

19

OIL SEAL (25X40X7)

91216-729-921

$7.46

19

OIL SEAL (25X40X7) This part replaces 91252-428-000.

91216-729-921

$7.46

20

NUT, HEX. (8MM)

94001-08000-0S

$1.49

21

WASHER, SPRING (8MM)

94111-08000

$1.49

22

BEARING, RADIAL BALL (6203U)

96140-62030-10

$11.91

23

BEARING, RADIAL BALL (6303U)

96140-63030-10

$14.48

24

SPOKE SET BS (8X169)

97506-69178-Q0

Unavailable

25

SPOKE BS (8X168.5)

97716-69177-Q0

Unavailable
