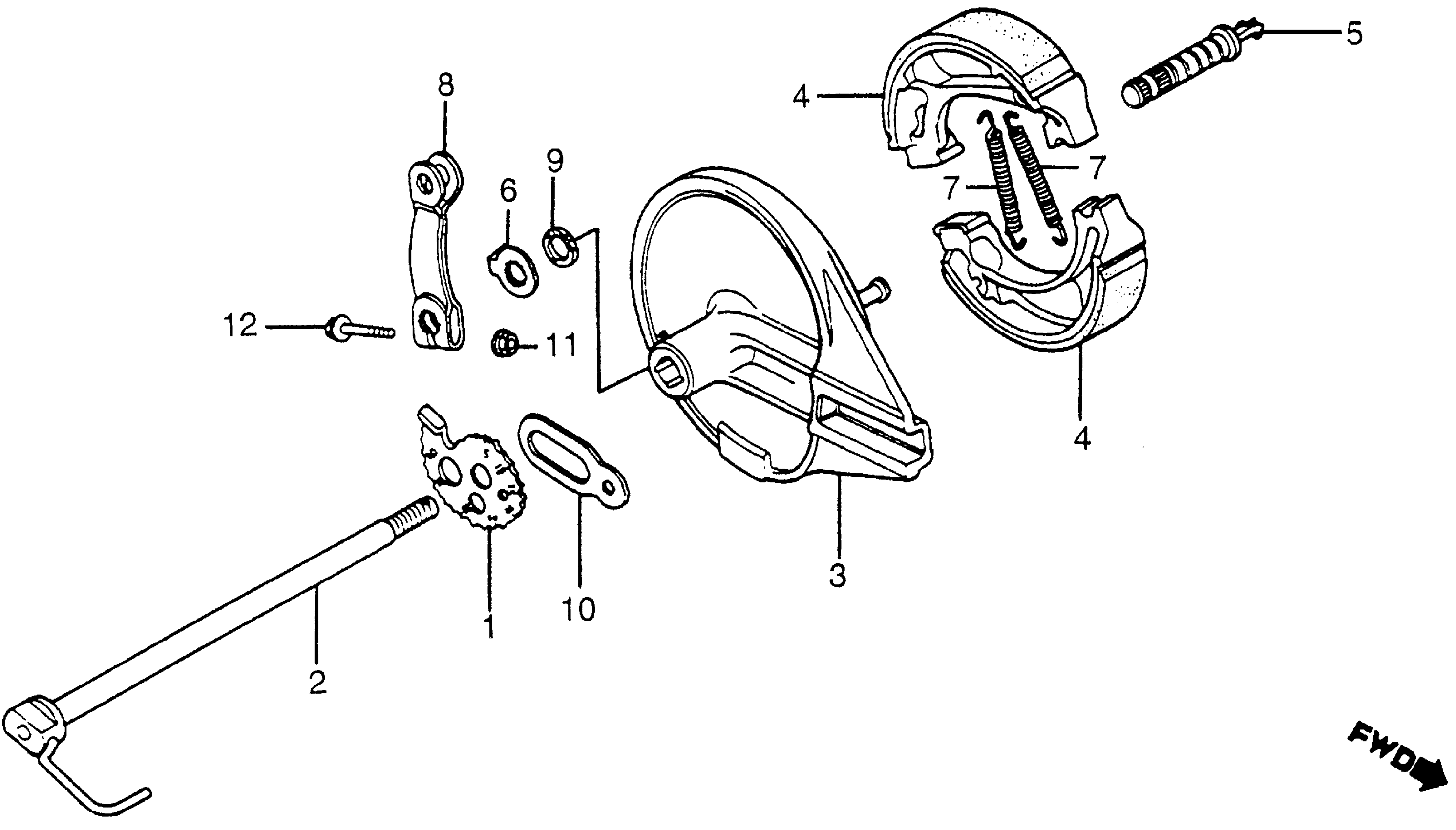

Honda XR200RA (83) MOTORCYCLE, JPN, VIN# JH2ME040-DK200001 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (ASK)

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-KT0-305.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-365-674.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 431A2-365-672.

06430-GBJ-J10

$29.23

1

ADJUSTER, R. CHAIN

40544-KB7-000

Unavailable

1

ADJUSTER, R. CHAIN This part replaces 40544-MA0-000.

40544-KB7-000

Unavailable

2

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-KA2-000

Unavailable

3

PANEL, RR. BRAKE

43100-428-000

Unavailable

4

SHOE SET, BRAKE (ASK) This part replaces 43120-365-671.

06430-GBJ-J10

$29.23

4

SHOE SET, BRAKE (ASK) This part replaces 43120-365-672.

06430-GBJ-J10

$29.23

5

CAM, RR. BRAKE

43141-400-010

$23.52

6

INDICATOR, RR. BRAKE

43145-400-000

$8.39

7

SPRING, BRAKE SHOE

43151-110-000

$2.92

8

ARM, RR. BRAKE This part replaces 43410-KA2-000.

43410-KA2-405

Unavailable

9

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

10

STOPPER, RR. BRAKE

52162-MA0-000

Unavailable

11

NUT, FLANGE (6MM)

94050-06000

$1.49

12

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

12

BOLT, FLANGE (6X32)

95701-06032-00

$1.89
