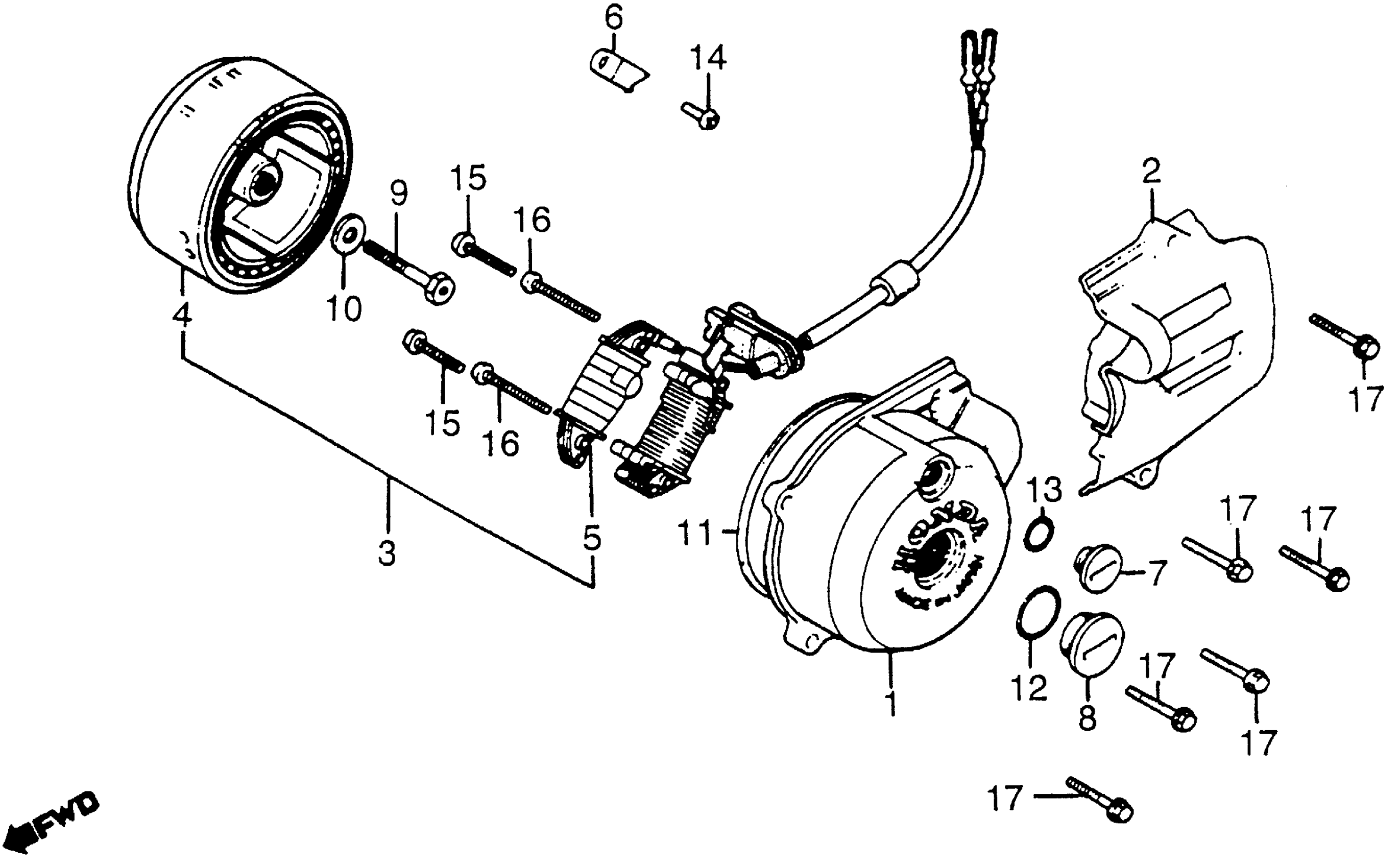

Honda XR200RA (83) MOTORCYCLE, JPN, VIN# JH2ME040-DK200001 LEFT CRANKCASE COVER + ALTERNATOR Diagram

#

Description
Price

1

COVER, L. CRANKCASE This part replaces 11341-KA2-000.

11341-KF9-900

Unavailable

1

COVER, L. CRANKCASE

11341-KF9-900

Unavailable

2

COVER, L. RR. CRANKCASE (NOT AVAILABLE)

11361-KA2-000

Unavailable

3

ALTERNATOR ASSY. (NOT AVAILABLE) This part replaces 31100-KA2-004.

31100-KA2-014

Unavailable

3

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-KA2-014

Unavailable

4

ROTOR This part replaces 31110-446-004.

31110-446-651

Unavailable

5

STATOR (DENSO) (NOT AVAILABLE) This part replaces 31120-KA2-004.

31120-KA2-014

Unavailable

5

STATOR (DENSO) (NOT AVAILABLE)

31120-KA2-014

Unavailable

6

CLAMP, WIRE HARNESS This part replaces 32976-107-000.

32976-107-010

$1.97

6

CLAMP, WIRE HARNESS

32976-107-010

$1.97

7

CAP, ALTERNATOR This part replaces 90084-428-000.

90084-471-000

Unavailable

7

CAP, ALTERNATOR

90084-471-000

Unavailable

8

CAP (30MM) This part replaces 90087-428-000.

90087-KF9-900

Unavailable

9

BOLT, UBS (8X40)

90112-KA2-000

Unavailable

10

WASHER, ROTOR SETTING

90426-437-000

$6.57

11

GASKET, L. CRANKCASE COVER This part replaces 91302-107-010.

91302-355-000

$12.49

11

GASKET, L. CRANKCASE COVER

91302-355-000

$12.49

12

O-RING (27.4X2.4) (ARAI)

91302-567-003

$7.96

12

O-RING (27.4X2.4) (ARAI)

91304-MG7-003

$6.45

13

O-RING (13.8X2.5)

91303-MG7-003

$3.12

13

O-RING (13.8X2.5)

91303-377-000

$3.42

13

O-RING (13.8X2.5) This part replaces 91303-426-000.

91303-MG7-003

$3.12

14

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

14

SCREW, PAN (6X12)

93500-06012-0A

$1.49

14

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

15

SCREW, PAN (6X18) This part replaces 93500-06018.

93500-06018-0A

$1.49

15

SCREW, PAN (6X18)

93500-06018-0A

$1.49

16

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.49

16

SCREW, PAN (6X35)

93500-06035-0A

$1.49

17

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

17

BOLT, FLANGE (6X25)

96001-06025-00

$2.00
