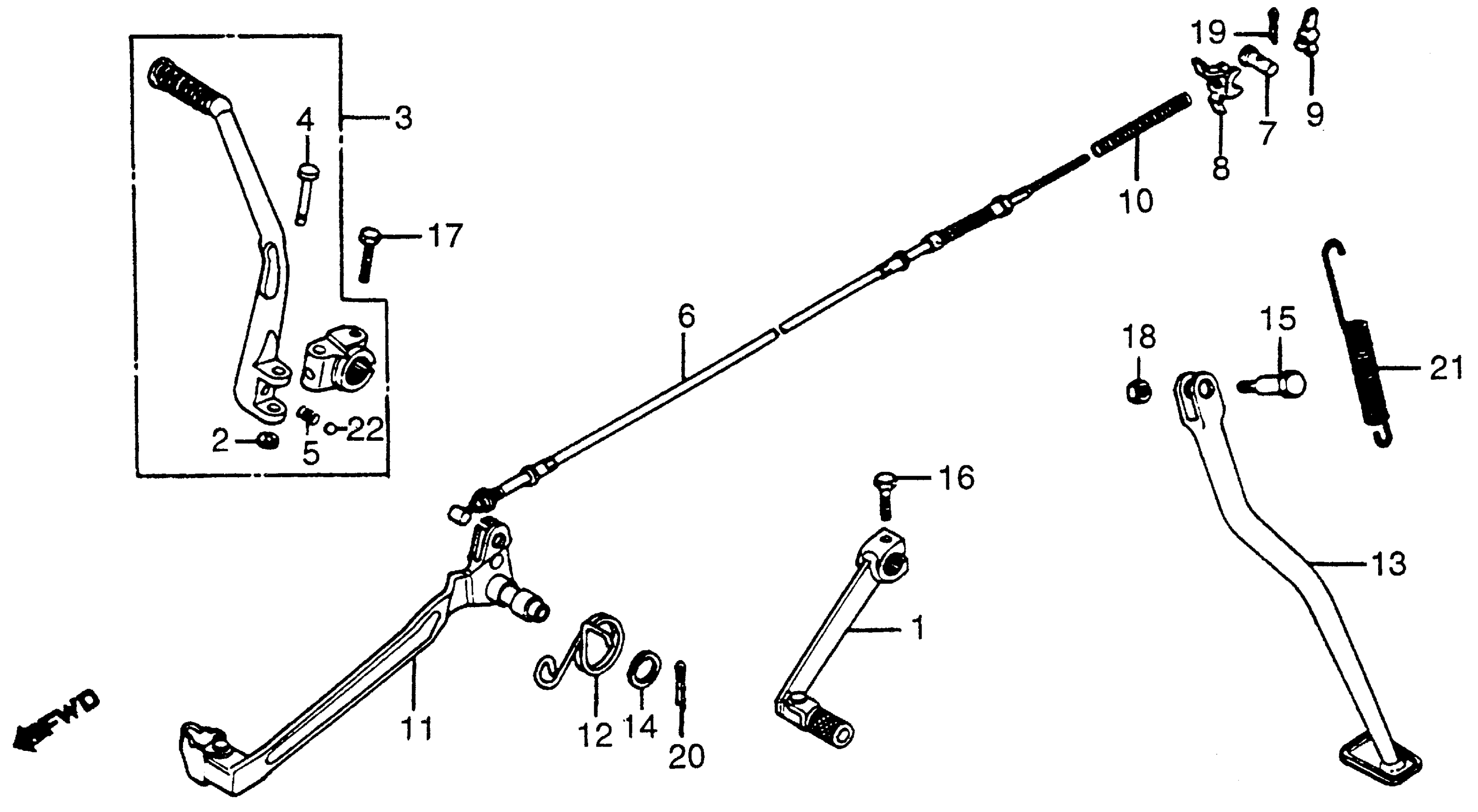

Honda XR200RA (83) MOTORCYCLE, JPN, VIN# JH2ME040-DK200001 GEARSHIFT PEDAL + KICK STARTER ARM Diagram

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-446-000

Unavailable

CLIP, KICK STARTER ARM

28293-124-000

$2.41

ARM ASSY., KICK STARTER

28300-427-770

Unavailable

PIN, KICK STARTER

28321-427-770

$7.27

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

CABLE, RR. BRAKE

43450-KA2-000

Unavailable

JOINT, BRAKE ARM

43453-MA0-000

Unavailable

PLATE, BRAKE CABLE FIXING

43454-MA0-000

Unavailable

NUT, BRAKE ADJUST

43459-434-000

$15.27

SPRING A, BRAKE CABLE (NOT AVAILABLE)

45452-044-300

Unavailable

PEDAL, BRAKE (NOT AVAILABLE)

46500-KA2-000

Unavailable

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-KA2-000

Unavailable

BAR, SIDE STAND (NOT AVAILABLE)

50530-KA2-000

Unavailable

BUSH, WASHER

53312-657-000

$6.70

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

NUT, HEX. (10MM)

94002-10000-0S

$4.06

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

PIN, COTTER (2.0X22)

94201-20220

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

PIN, COTTER (2.0X35)

94201-20350

$1.49

PIN, COTTER (2.0X22)

94201-29220

$1.49

PIN, COTTER (4.0X30)

94201-40300

$1.49

SPRING D, SIDE STAND

95014-72402

$2.92

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
