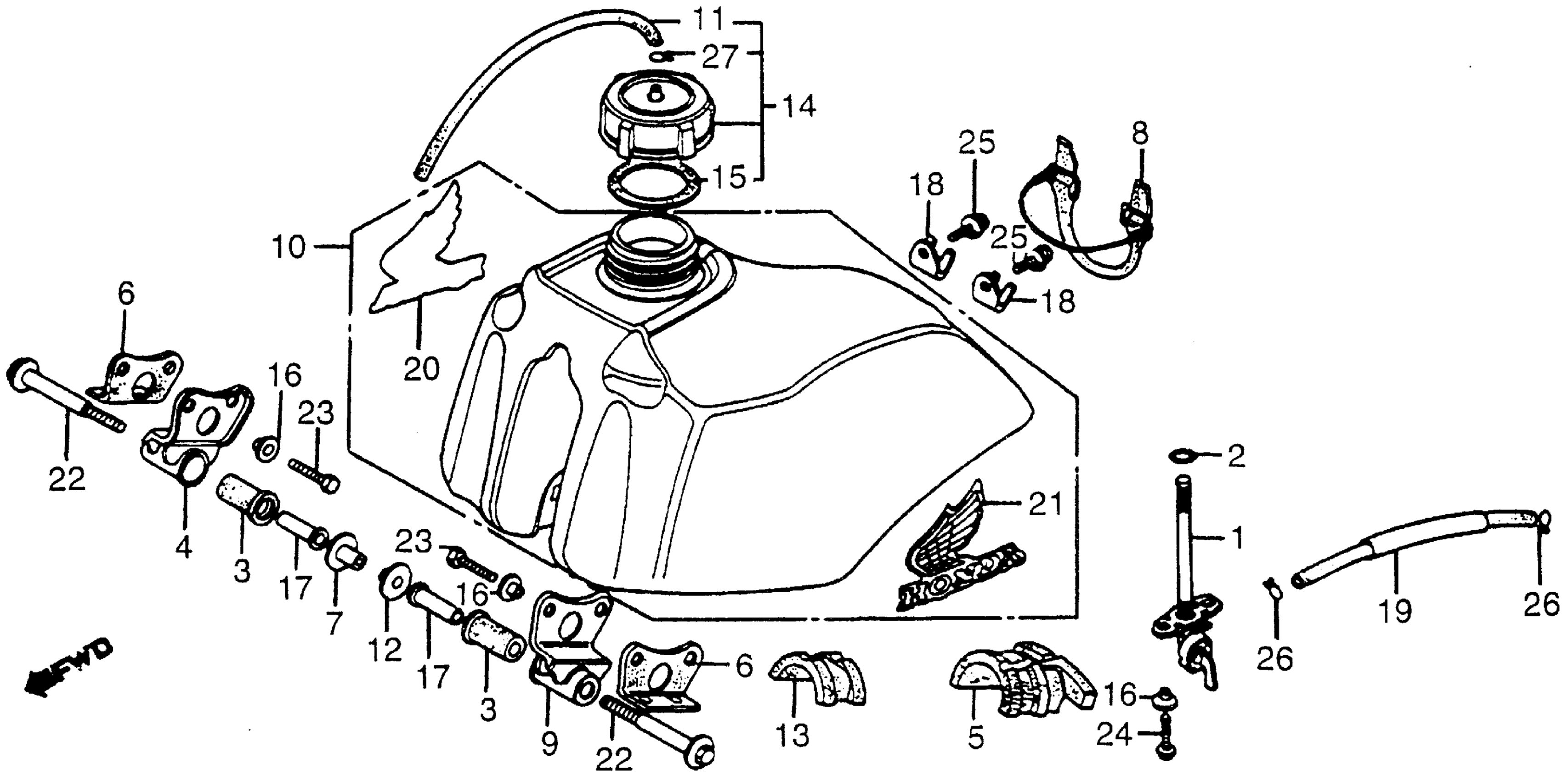

Honda XR200RA (83) MOTORCYCLE, JPN, VIN# JH2ME040-DK200001 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY.

16950-KT0-831

$96.27

1

PETCOCK ASSY. This part replaces 16950-MA0-015.

16950-KT0-831

$96.27

2

O-RING (11.8X3.55)

16997-467-000

$2.11

3

RUBBER, FUEL TANK SETTING

17508-467-000

Unavailable

4

BRACKET, FR. TANK (NOT AVAILABLE)

17511-KA2-000

Unavailable

5

RUBBER A, FUEL TANK SETTING (NOT AVAILABLE)

17512-KA2-000

Unavailable

6

RUBBER, FR. FUEL TANK SETTING (NOT AVAILABLE)

17514-MA0-000

Unavailable

7

COLLAR, R. FR. TANK SETTING (NOT AVAILABLE)

17515-KA2-000

Unavailable

8

BAND, RR. FUEL TANK SETTING

17516-MA0-000

Unavailable

9

BRACKET, L. FR. TANK (NOT AVAILABLE)

17518-KA2-000

Unavailable

10

TANK SUB-ASSY., FUEL *R119* (FLASH RED) (NOT AVAILABLE)

17520-KA2-000ZB

Unavailable

11

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

12

COLLAR, L. FR. TANK SETTING (NOT AVAILABLE)

17525-KA2-000

Unavailable

13

RUBBER, FR. TANK

17611-KA2-000

Unavailable

14

CAP, FUEL TANK This part replaces 17620-MA0-000.

17620-MA0-405

Unavailable

14

CAP, FUEL TANK

17620-MA0-405

Unavailable

15

GASKET, FUEL TANK CAP

17624-467-020

Unavailable

16

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

17

COLLAR, SLIDER (NOT AVAILABLE)

17628-467-010

Unavailable

18

HOOK, RR. FUEL TANK (NOT AVAILABLE)

17629-KA2-000

Unavailable

19

TUBE, FUEL (MM HB7A-F-0065) (NOT AVAILABLE)

17681-KA2-000

Unavailable

20

EMBLEM, R. FUEL TANK (NOT AVAILABLE)

87123-KA2-300

Unavailable

21

EMBLEM, L. FUEL TANK (NOT AVAILABLE)

87124-KA2-300

Unavailable

22

BOLT, FR. TANK SETTING (NOT AVAILABLE)

90114-KA2-000

Unavailable

23

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

23

BOLT, HEX. (6X20) This part replaces 92100-06020.

92101-06020-0A

$1.49

23

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

24

SCREW-WASHER (6X20)

93891-06020-08

$1.80

25

SCREW-WASHER (6X16)

93892-06016-08

$1.49

26

CLIP, TUBE (B10)

95002-02100

$1.90

27

CLIP, TUBE (C9)

95002-50000

$1.49
