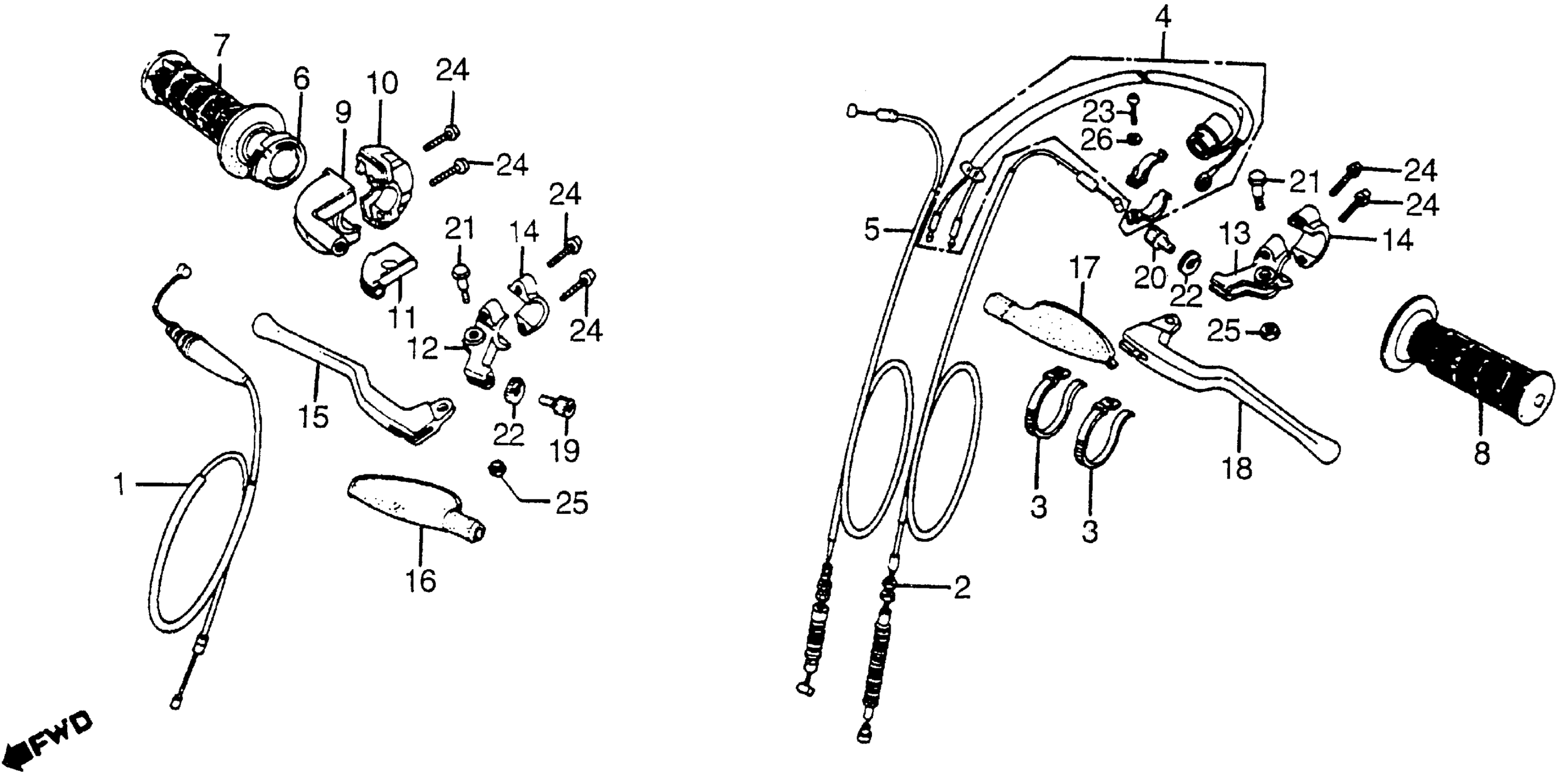

Honda XR200RA (83) MOTORCYCLE, JPN, VIN# JH2ME040-DK200001 CONTROL LEVERS + SWITCHES + CALES Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-KA2-000

Unavailable

2

CABLE, CLUTCH This part replaces 22870-KA2-000.

22870-KT0-670

$32.41

2

CABLE, CLUTCH

22870-KT0-670

$32.41

3

BAND B1, CABLE

32161-404-000

$2.13

4

SWITCH ASSY., STOP This part replaces 35130-KA2-003.

35130-KT0-670

Unavailable

4

SWITCH ASSY., STOP

35130-KT0-670

Unavailable

5

CABLE, FR. BRAKE (NOT AVAILABLE) This part replaces 45450-KA2-000.

45450-KF0-010

Unavailable

5

CABLE, FR. BRAKE

45450-KF0-010

Unavailable

6

PIPE, THROTTLE GRIP

53141-446-000

Unavailable

7

GRIP, R. HANDLE This part replaces 53165-430-000.

53165-GFW-305

$10.87

8

GRIP, L. HANDLEBAR This part replaces 53166-430-000.

53166-459-910

$8.47

9

HOUSING, THROTTLE (UPPER) This part replaces 53167-KA2-000.

53167-KA2-010

$18.77

9

HOUSING, THROTTLE (UPPER)

53167-KA2-010

$18.77

10

HOUSING, THROTTLE (LOWER) This part replaces 53168-KA2-000.

53168-KA2-010

$17.53

10

HOUSING, THROTTLE (LOWER)

53168-KA2-010

$17.53

11

SLIDER, THROTTLE

53169-KA2-000

$4.53

12

BRACKET, R. HANDLEBAR

53171-429-770

Unavailable

13

BRACKET, L. HANDLEBAR

53172-429-770

$29.75

14

HOLDER, LEVER BRACKET This part replaces 53173-KN5-670.

53173-376-000

$9.82

14

HOLDER, LEVER BRACKET

53173-376-000

$9.82

15

LEVER, R. HANDLEBAR

53175-GM2-010

Unavailable

15

LEVER, R. HANDLEBAR This part replaces 53175-429-770.

53175-GM2-010

Unavailable

16

COVER, R. HANDLEBAR This part replaces 53176-430-010.

53176-428-010

$9.01

17

COVER, L. HANDLEBAR

53177-430-000

$9.88

18

LEVER, L. HANDLEBAR

53178-KF0-000

$34.98

18

LEVER, L. HANDLEBAR This part replaces 53178-429-770.

53178-KF0-000

$34.98

19

BOLT, CABLE ADJUSTING

53192-268-000

$6.08

20

BOLT, CLUTCH CABLE ADJUSTING

53192-312-000

$7.37

21

BOLT, HANDLEBAR LEVER PIVOT

90113-429-770

$5.54

22

NUT, FIXING

90321-315-670

$6.80

22

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$6.80

23

SCREW, PAN (4X12)

93500-04012-0A

$0.75

23

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$0.75

24

SCREW, PAN (5X16)

93500-05016-0A

$0.83

25

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.19

25

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.19

25

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.19

25

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

25

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.19

25

NUT, HEX. (6MM)

94001-06200-0S

$1.19

25

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.19

26

WASHER, SPRING (4MM)

94111-04000

$0.97
