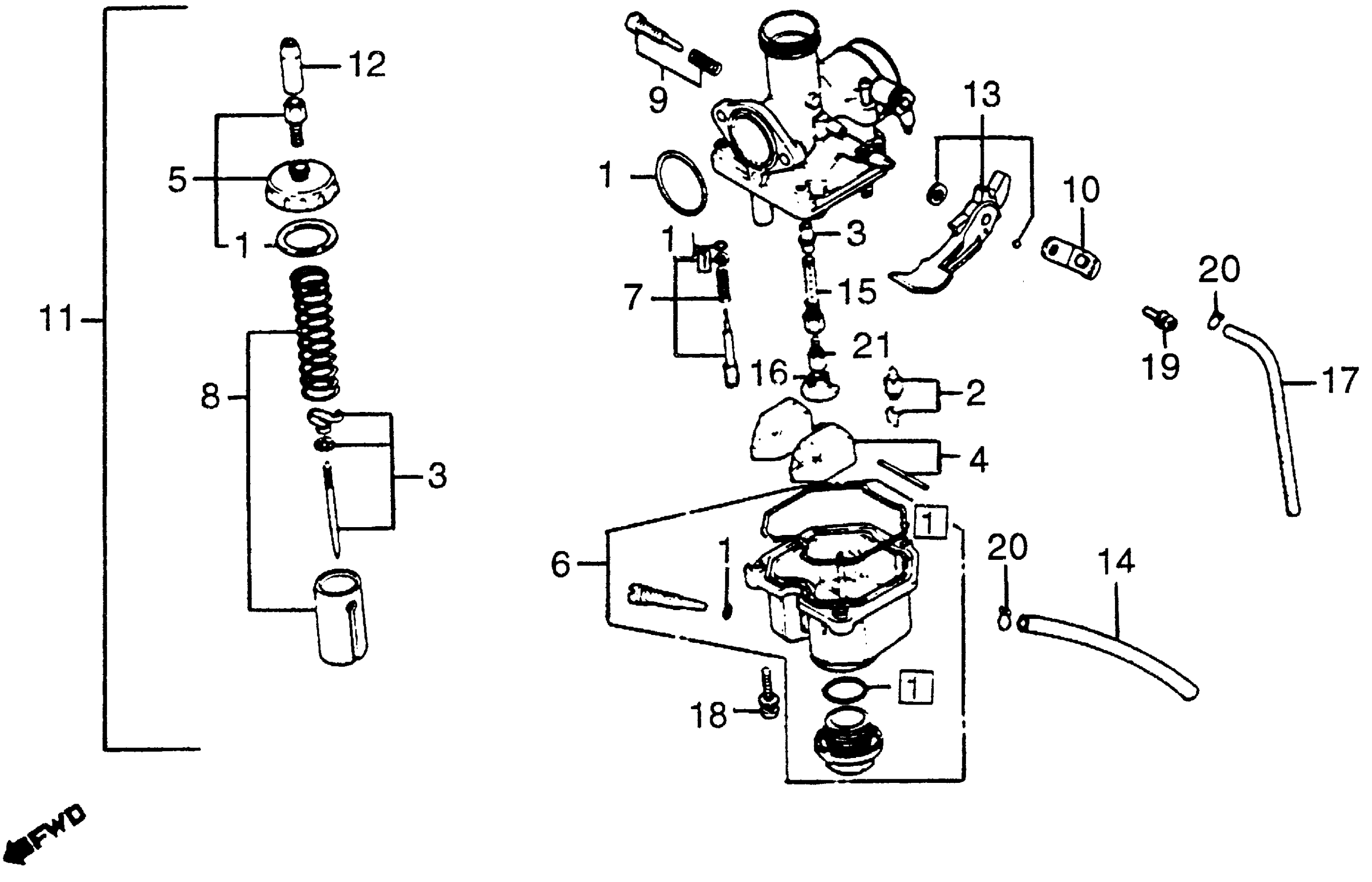

Honda XR200RA (83) MOTORCYCLE, JPN, VIN# JH2ME040-DK200001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-KT0-A10

$25.38

1

GASKET SET This part replaces 16010-446-004.

16010-KT0-A10

$25.38

2

VALVE SET, FLOAT This part replaces 16011-382-004.

16011-KCK-910

$33.82

3

NEEDLE SET, JET

16012-KA2-004

Unavailable

4

FLOAT SET

16013-405-004

$56.20

5

TOP SET This part replaces 16014-324-680.

16014-324-681

Unavailable

5

TOP SET

16014-324-681

Unavailable

6

CHAMBER SET, FLOAT This part replaces 16015-KA2-004.

16015-KA2-014

Unavailable

6

CHAMBER SET, FLOAT

16015-KA2-014

Unavailable

7

SCREW SET A This part replaces 16016-385-681.

16016-402-004

$20.82

7

SCREW SET A

16016-402-004

$20.82

8

VALVE SET, THROTTLE This part replaces 16022-KA2-004.

16022-KT0-A10

Unavailable

8

VALVE SET, THROTTLE This part replaces 16022-KA2-014.

16022-KT0-A10

Unavailable

8

VALVE SET, THROTTLE

16022-KT0-A10

Unavailable

9

SCREW SET B This part replaces 16028-402-004.

16028-KB1-D11

$5.98

10

PLATE, SETTING

16035-446-771

Unavailable

11

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-KA2-004.

16100-KA2-034

Unavailable

11

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-KA2-014.

16100-KA2-034

Unavailable

11

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-KA2-024.

16100-KA2-034

Unavailable

11

CARBURETOR ASSY. (NOT AVAILABLE)

16100-KA2-034

Unavailable

12

CAP, CABLE SEALING This part replaces 16118-086-004.

16118-166-004

$8.08

12

CAP, CABLE SEALING

16118-166-004

$8.08

13

LEVER, CHOKE

16135-KA8-671

Unavailable

14

TUBE, FUEL This part replaces 16143-413-751.

16199-KG4-405

$9.49

15

HOLDER, NEEDLE JET

16165-446-305

Unavailable

16

HOLDER, JET

16168-382-014

$9.81

17

TUBE, FUEL This part replaces 16199-187-003.

16199-KG4-405

$9.49

18

SCREW-WASHER (4X16)

93892-04016-08

$1.49

19

SCREW-WASHER (5X12)

93892-05012-08

$1.49

20

CLIP, TUBE (B6.5)

95002-02650

$1.49

21

JET, MAIN (#122) | (Optional).

99101-357-1220

$17.99

21

JET, MAIN (#125) | (Optional).

99101-357-1250

$9.98

21

JET, MAIN (#128) | (Optional).

99101-357-1280

$9.07

21

JET, MAIN (#130) | (Optional).

99101-357-1300

$8.55

21

JET, MAIN (#132) | (Optional).

99101-357-1320

$9.07

21

JET, MAIN (#135) | (Optional).

99101-357-1350

$9.07

21

JET, MAIN (#138)

99101-357-1380

$9.26

21

JET, MAIN (#140) | (Optional).

99101-357-1400

$8.55

21

JET, MAIN (#142) | (Optional).

99101-357-1420

$8.55
